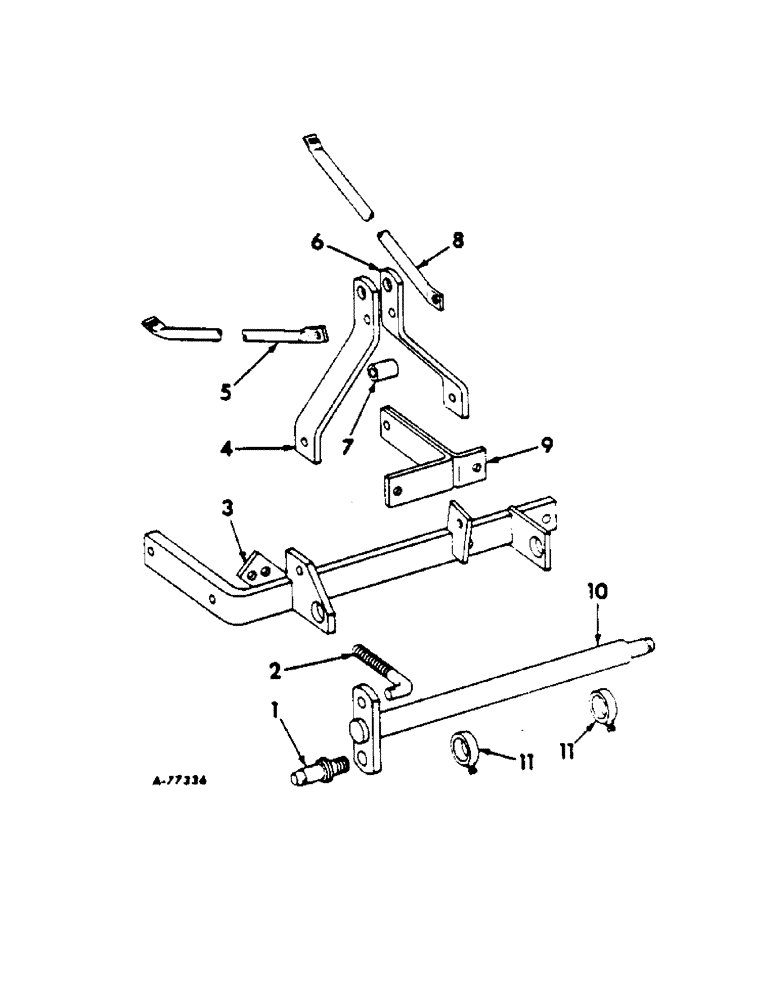

Запчасти Case IH 411 (V-21[A]) - THREE-POINT CATEGORY II HITCH COMPLETING PACKAGE / PRODUCT GRAPHICS

1

472790R1

STUD

lower

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8UNF C-Z NUT

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z LOCK WASHER

1шт.

2

473679R1

ROD,7/8" - 9 x 8.6"

BOLT, landing

1шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

13095

SCREW

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

3

473671R91

FRAME ASSY, front

1шт.

220081

NUT

3/4 NUT

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3 CAP SCREW

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4 x 3-1/4 CAP SCREW

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 GA WASHER

2шт.

4

473678R1

BRACKET, mast RH

1шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2-1/4 CAP SCREW

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

473687R1

BRACE, mast, 14 in., RH

1шт.

5

473689R1

BRACE, mast, 16 in., RH

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

102639

NUT,5/8"-11, G5

2шт.

218197

NUT,3/4"-16, G5

3/4 NUT

2шт.

18289R1

3/4UNF x 5-1/4 CAP SCREW

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

473677R1

BRACKET, mast LH

1шт.

220081

NUT

3/4 NUT

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2-1/4 CAP SCREW

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

7

462425R1

SPACER

mast

1шт.

8

473686R1

BRACE, mast, 14 in., LH

1шт.

8

473688R1

BRACE, mast, 16 in., LH

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

473680R91

BRACKET ASSY, front frame

1шт.

425-1012

NUT,3/4"-10, G5

3/4 NUT

4шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

3/4 x 2-3/4 CAP SCREW

2шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3 CAP SCREW

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

10

473683R92

CROSSBAR

1шт.

11

PO1887X

COLLAR

locating

2шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

2шт.

392002R91

PARTS ACCESSORY, bushing & pin adapter, for use w/category II implements when mounted on category III three point hitch, consists of

1шт.

392911R1

BALL, upper link rear

1шт.

374132R1

PIN

upper link implement

1шт.

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

lower link hitch point

2шт.

469628R91

PACKAGE, product graphics

1шт.

2751270R1

PRODUCT GRAPHIC

INTERNATIONAL

1шт.

100840R3

IH, on main frame

1шт.
