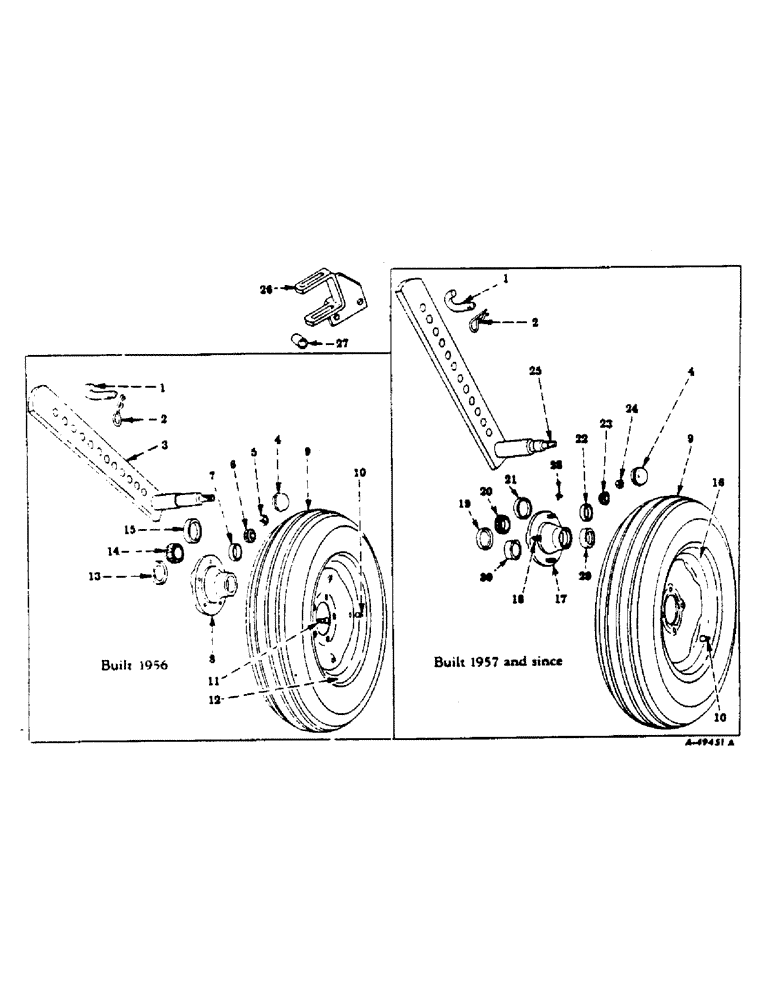

Запчасти Case IH 411 (V-12) - GAUGE WHEEL AND PNEUMATIC TIRE AND TUBE

1

520620R1

AXLE PIN

PIN, retaining

1шт.

2

520175R1

CLIP

PIN, quick-attachable cot

1шт.

3

(Not used this application)

1шт.

4

651194R1

CAP

wheel

1шт.

5

(Not used this application)

1шт.

6

(Not used this application)

1шт.

7

(Not used this application)

1шт.

8

(Not used this application)

1шт.

9

TIRE, 4 ply ribbed implement pneumatic, 6.70 x 15

1шт.

10

TUBE, 6.70 x 15 pneumatic

1шт.

11

(Not used this application)

1шт.

12

(Not used this application)

1шт.

13

(Not used this application)

1шт.

14

(Not used this application)

1шт.

15

(Not used this application)

1шт.

16

455169R92

WHEEL

RIM, 15 x 5.00 wheel

1шт.

17

652381R91

HUB

W/BOLTS, cups and nuts, Serial Range: 1957-1961

1шт.

17

461892R31

HUB W/BOLTS, cups and nuts, Serial Range: 1961-1962

1шт.

17

472220R11

HUB

W/SET SCREW, 1963 & up

1шт.

.

1/2NF x 1 HEX-HD CAP SCREW

4шт.

.

1/2 LOCK WASHER

4шт.

18

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2UNF x 1-5/8 special, Serial Range: 1957-1962

1шт.

.

453770R1

WHEEL NUT

1/2UNF SLOTTED NUT

1шт.

19

652769R91

OIL SEAL

oil, Serial Range: 1957-1962

1шт.

20

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, inner cone, 1957 to 1962

1шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone, 1963 & up

1шт.

21

651817R1

BEARING CUP

BEARING, inner cup

1шт.

22

651814R1

BEARING CUP

BEARING, outer cup

1шт.

23

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

23

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

24

69442D

NUT

3/4 unf slt

1шт.

25

523520R91

STANDARD W/AXLE, Serial Range: 1957-1961

1шт.

25

467473R92

STANDARD W/AXLE, 1961 & UP

1шт.

.

69442D

NUT

3/4NF SLT NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

26

522461R11

BRACKET

1шт.

.

5/8 x 3-1/2 MACH BOLT

2шт.

.

5/8 LOCK WASHER

2шт.

27

522470R1

SPACER, channel

1шт.

28

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, 1963 & up

1шт.

29

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

30

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.
