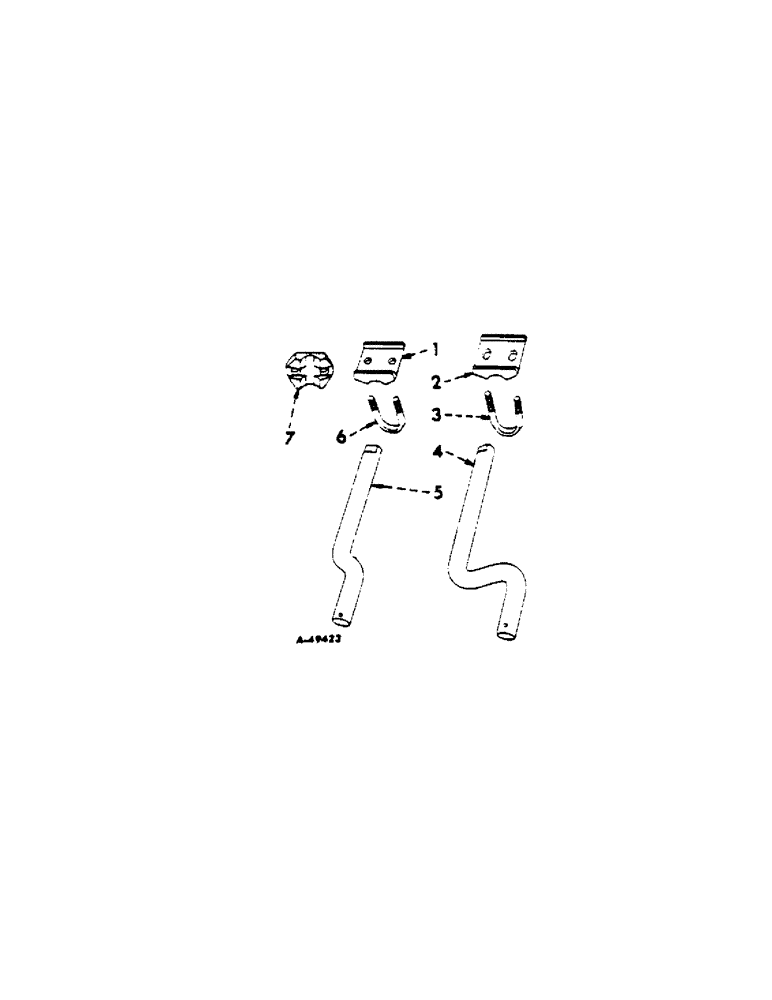

Запчасти Case IH 411 (V-07) - COLTER SHANKS AND CLAMPS, OUTER COLTER CLAMP UNIT WITH

1

524457R3

STAPLE

CLAMP, colter, for 2-3/4 x 1 in. rail

1шт.

2

524456R3

CLAMP

colter, for 3 x 1 in. rail

1шт.

3

524562R11

U-BOLT W/BOLTS, right rail colter clamp

1шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

4

522434R1

STEM

SHANK, colter 1-1/2 dia, 5 offset

1шт.

5

524460R1

SHANK, colter, 1-1/2 dia, 1-7/8 offset

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.

6

524459R1

BOLT,U, 5/8" - 11

U-BOLT, center left colter clamp

1шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

7

524492R1

CLAMP

CAP, clamp

1шт.

5/8 NUT

2шт.

5/8 x 4-1/4 CAP SCREW

2шт.

524855R1

5/8 x 5 CAP SCREW, 1ST BEAM

1шт.
