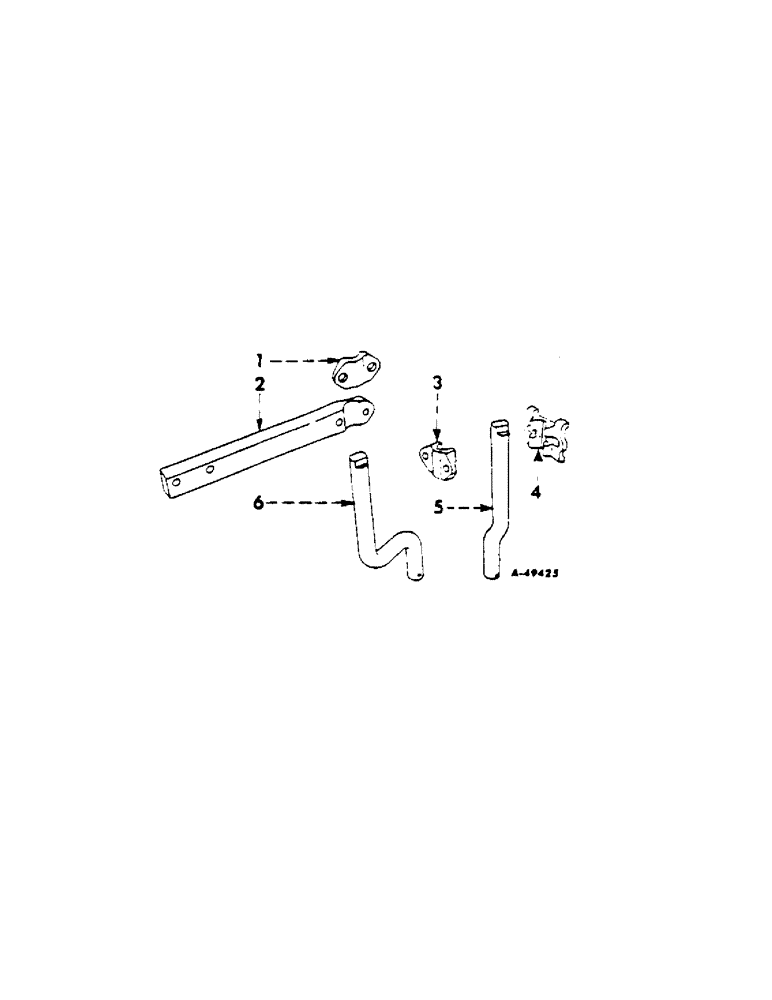

Запчасти Case IH 411 (V-07[B]) - COLTER SHANKS AND CLAMPS, FOR 3 FURROW PLOW WITH HINGED COUPLING BEAM

1

519155R1

CLAMP

CAP, 1st, 3rd and 4th colter clamp

1шт.

5/8 NUT

1шт.

5/8 x 2-3/4 CAP SCREW

1шт.

5/8 x 3-1/4 CAP SCREW

1шт.

2

522442R1

BAR, 1st, 3rd and 4th colter support

1шт.

3

523546R1

CAP, 2nd colter clamp

1шт.

5/8 NUT

2шт.

5/8 x 4-1/2 CAP SCREW

2шт.

4

523545R1

CLAMP, 2nd colter

1шт.

5

523549R1

SHANK, 2nd colter, 1-1/2 dia

1шт.

6

522434R1

STEM

SHANK, 1st, 3rd and 4th colter, 1-1/2 in. dia

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.
