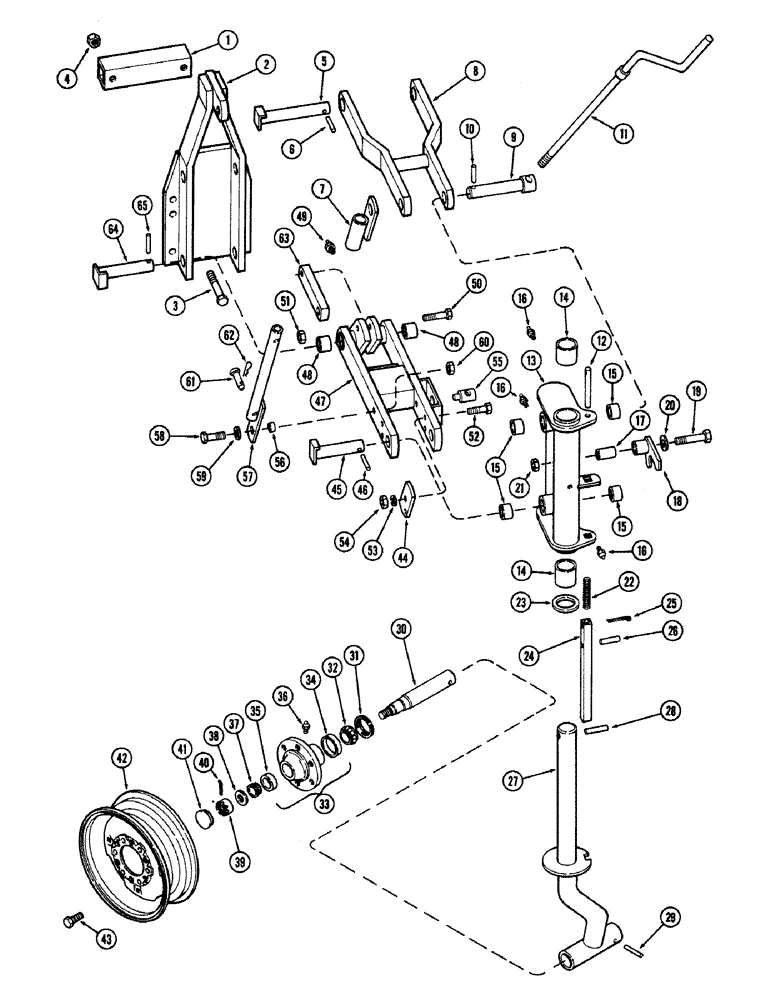

Запчасти Case IH 400-SERIES (10) - FURROW AXLE AND WHEEL, ON LAND HITCH

1

T54531

SPACER

1шт.

2

T54530

SUPPORT

1шт.

3

114-730

BOLT - 3/4 x 5-1/2" NF hex (Grade 8)

6шт.

4

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

6шт.

5

T54536

PIN - 10-1/4"

1шт.

6

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

7

T54538

TUBE - external

1шт.

8

T54535

LINK - upper

1шт.

9

T54544

PIN

- 9-1/8"

1шт.

10

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

11

T54540

CRANK

1шт.

12

T54529

ROD

- spring

1шт.

13

T54524

SLEEVE ASSEMBLY - with inserts

1шт.

14

T54525

INSERT - bearing

2шт.

15

T54504

BUSHING

INSERT - bushing

4шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

3шт.

17

T54527

SPACER

1шт.

18

T54526

LEVER

1шт.

19

114-720

BOLT,Hex, 3/4" - 16 x 4", Gr 5

- 3/4 x 4" NF hex (Grade 5)

1шт.

20

195-545

WASHER,3/4", SAE

- 1-15/32 x 13/16" x 9 gauge

1шт.

21

131-690

LOCK NUT,3/4"-16, GB

NUT - lock 3/4" NF hex

1шт.

22

T54545

SPRING

1шт.

23

T54543

WASHER

1шт.

24

T54528

LATCH

1шт.

25

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

26

138-205

LOCK PIN,1/2" x 1 3/4", Slotted

Pin, 1/2" x 1 3/4", Slotted

1шт.

27

T54542

AXLE

1шт.

28

138-212

LOCK PIN,1/2" x 3 1/2", Slotted

Pin, 1/2" x 3 1/2", Slotted

1шт.

29

138-181

LOCK PIN,3/8" x 2 1/2", Slotted

ROLL PIN - 3/8 x 2-3/4"

1шт.

30

T54252

SPINDLE

SHAFT - spindle

1шт.

31

T54255

OIL SEAL

SEAL - oil

1шт.

32

G15219

ROLLER BEARING

CONE - bearing inner 1-5/8" ID (41.3 MM)

1шт.

33

T54253

HUB

ASSEMBLY - with cups

1шт.

34

G15218

BEARING, CUP

CUP - bearing inner 2-7/8" OD (73.0 MM)

1шт.

35

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

37

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

1шт.

38

T54256

WASHER

- bearing

1шт.

39

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

1шт.

40

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

1шт.

41

T23707

CAP

- hub

1шт.

42

A57879

RIM

WHEEL - 15 x 8"

1шт.

43

A29912

BOLT

BOLT - wheel

6шт.

44

T54532

CAM

1шт.

45

T54537

PIN - 7-1/4"

1шт.

46

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

47

T54523

LINK ASSEMBLY - lower

1шт.

48

T54296

INSERT

2шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

50

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

1шт.

51

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

1шт.

52

114-603

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

- 5/8 x 2-1/4" NF hex (Grade 5)

2шт.

53

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

129-127

NUT,5/8"-18, G5

2шт.

55

T54541

TRUNNION

1шт.

56

T54287

SPACER

1шт.

57

T54539

TUBE 11.375" L

1шт.

58

114-715

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

Hex, 3/4"-16 x 2 1/2", G5

1шт.

59

195-545

WASHER,3/4", SAE

- 1-15/32 x 13/16" x 9 gauge

1шт.

60

131-690

LOCK NUT,3/4"-16, GB

NUT - lock 3/4" NF hex

1шт.

61

T54337

PIN - locking

1шт.

62

B17308

CLIP

COTTER

1шт.

63

T54534

ARM - cylinder

1шт.

64

T54533

PIN - 8-5/8"

1шт.

65

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

T56555

PIVOT

hitchbar

1шт.

T56554

1шт.
