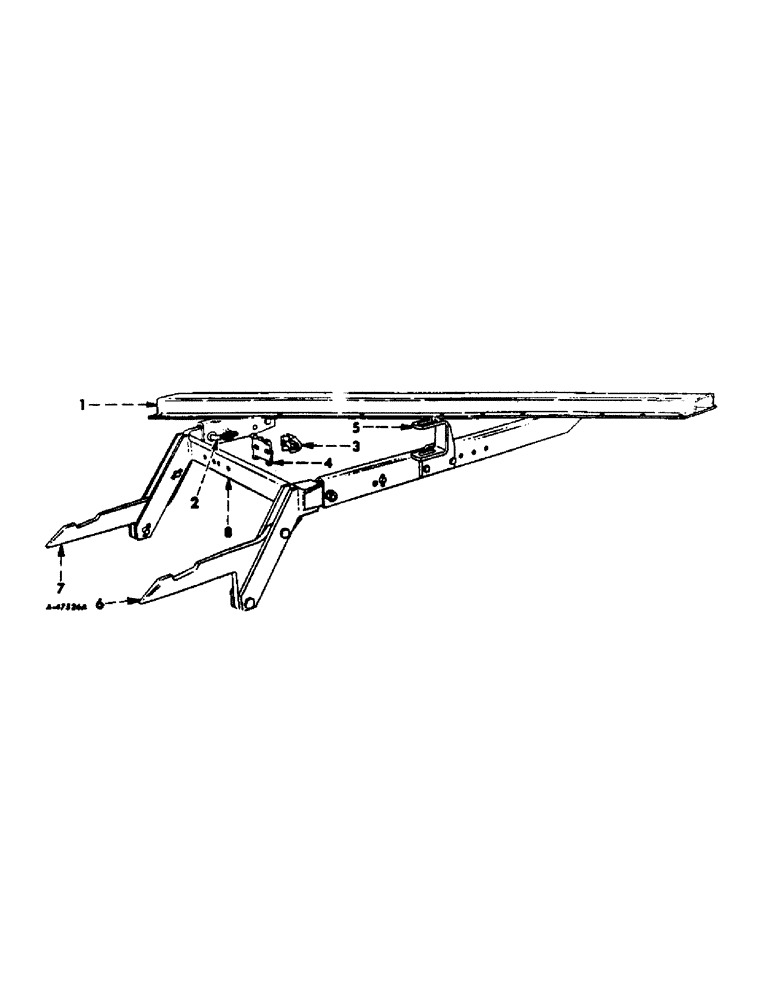

Запчасти Case IH 4-FTC43 (B-02) - COUPLING BEAMS AND FRAMES

1

522984R11

FRAME, main, for 14 plow, 1956

1шт.

1

522983R11

FRAME, main, for 16 plow, 1956

1шт.

1

523883R91

FRAME, main, for 14 plow, 1957 to 1958, order frame assy 525845R91

1шт.

1

523884R91

FRAME, main, for 16 plow, 1957 to 1958, order frame assy 525846R91

1шт.

3/4 x 3 MACH BOLT

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

3/4 x 2-1/2 DLD-STD-HD PIN

2шт.

3/4 LOCK WASHER

1шт.

1

525845R91

FRAME, w/bolts and straps, for 14 plow

1шт.

1

525846R91

FRAME, w/bolts and straps, for 16 plow

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

9шт.

5/8 NUT

12шт.

5/8 x 5-3/4 CAP SCREW

3шт.

5/8 LOCK WASHER

3шт.

2

522433R11

LINK, landing adjusting

1шт.

3/4 NUT

1шт.

218443

NUT

3/4 JAM NUT

1шт.

3/4 LOCK WASHER

1шт.

25/32 x 1-1/2 x 11 GA WASHER

1шт.

3

523546R1

CAP, 2nd colter clamp

1шт.

5/8 NUT

2шт.

5/8 x 4-1/2 CAP SCREW

2шт.

4

523545R1

CLAMP, 2nd colter

1шт.

5

522461R11

BRACKET, gauge wheel

1шт.

5/8 x 3-1/2 MACH BOLT, 1956

1шт.

5/8 x 6-1/4 CAP SCREW, 3RD COLTER CLAMP, 1956

1шт.

5/8 LOCK WASHER

1шт.

6

522973R11

BEAM, left coupling

1шт.

7

522972R11

BEAM, right coupling

1шт.

1/4 x 1-1/2 SELF-OPENING COT PIN

4шт.

524532R1

7/8 x 3-1/16 HEADED PIN

4шт.

21868V

WASHER

29/32 x 1-1/2 x 16 GA WASHER

2шт.

8

522991R92

FRAME, coupling beam attaching, for 14 plow, 1956

1шт.

8

522990R92

FRAME, coupling beam attaching, for 16 plow, 1956

1шт.

8

523885R91

FRAME, coupling beam attaching, for 14 plow, Serial Range: 1957-1958

1шт.

8

523886R91

FRAME, coupling beam attaching, for 16 plow, Serial Range: 1957-1958

1шт.

525797R1

STRAP, main frame reinforcing

1шт.

5/8 x 6 CRG BOLT

2шт.

521991R1

5/8 x 6-1/2 CRG BOLT

1шт.

5/8 NUT

1шт.

5/8 x 6-1/4 CAP SCREW

1шт.
