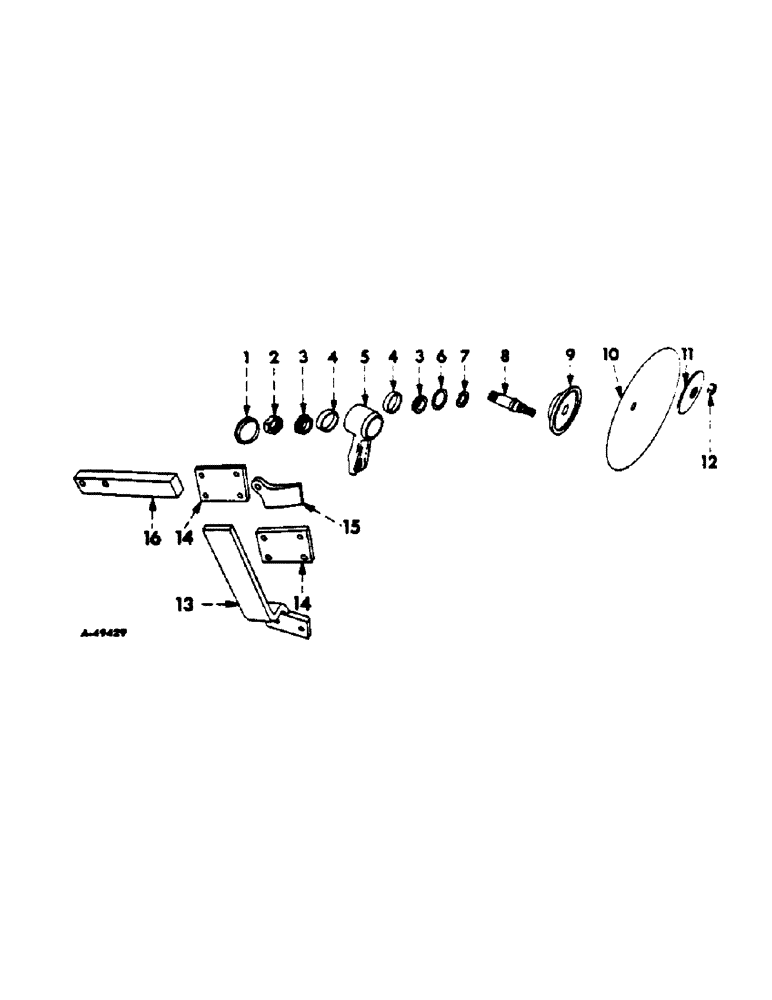

Запчасти Case IH 4-F43 (B-06) - DISK COLTER JOINTERS, RIGID STANDARD, ONE PER FURROW

1

518842R1

CAP

bearing housing

1шт.

2

519250R1

SLOTTED NUT

1-1/4 UNF

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, cone

2шт.

4

651817R1

BEARING CUP

BEARING, cup

2шт.

5

521779R1

HOUSING, bearing

1шт.

6

518820R91

OIL SEAL

bearing oil

1шт.

7

518654R1

SPACER

oil seal

1шт.

8

521780R1

SPINDLE

1шт.

1/8 x 1-3/4 COT PIN

2шт.

9

519084R1

HUB

BEARING, spindle

1шт.

10

519093R1

DISC

DISK, 16 dia

1шт.

11

519086R2

SUPPORT

disk

1шт.

12

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 UNF

1шт.

13

523974R12

STANDARD ASSY

1шт.

1/2 x 2-1/4 MACH BOLT

2шт.

1/2 LOCK WASHER

1шт.

14

523975R1

PLATE, clamp, for 1-1/4 x 2 support bar

1шт.

1/2 NUT

4шт.

1/2 x 4-1/2 CAP SCREW

4шт.

14

525455R1

PLATE, clamp, for 1 x 2-3/4 bar

2шт.

1/2 NUT

4шт.

1/2 x 4-1/4 CAP SCREW

4шт.

15

523972R1

BLOCK, adjusting

1шт.

16

522480R1

BAR, colter support

1шт.

5/8 NUT

1шт.

5/8 x 3-1/4 CAP SCREW

1шт.

5/8 LOCK WASHER

1шт.

21/32 x 1-1/4 x 11 GA WASHER

2шт.
