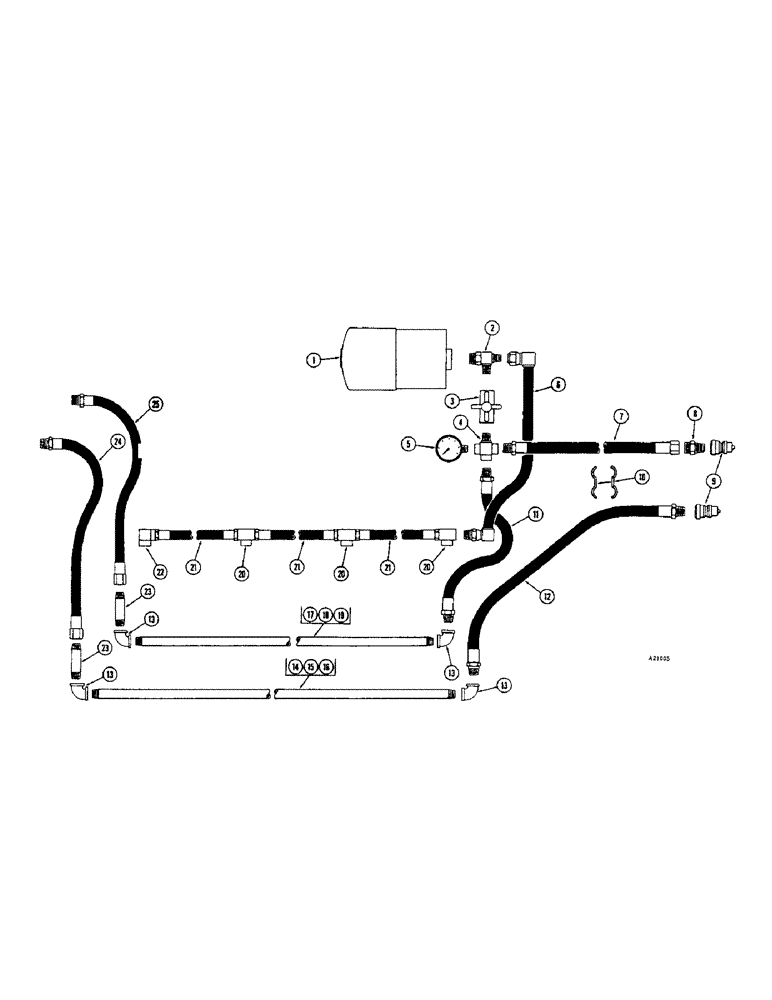

Запчасти Case IH 3300-SERIES (08) - HYDRAULIC HOSE AND GAUGE, IN FURROW HITCH, 4, 5, 6 AND 7 BOTTOM

1

T38304

ACCUMULATOR (YR. - 69-)

1шт.

item #1 -charge accululator 1200-1450psi -- the hydraulic pressure is to be 100 psi higher than the charge pressure ,but not to exceed 400 psi higher-

1шт.

2

T38324

TEE - pipe (YR. - 69-)

1шт.

3

T38326

VALVE (YR. - 69-)

1шт.

4

T38327

CROSS

(YR. - 69-)

1шт.

5

T38255

GAUGE

- 3000# (YR. - 69-)

1шт.

6

T38257

HOSE - 24" long (YR. - 69-)

1шт.

7

T18496

HOSE

- 48" long (YR. - 69-)

1шт.

8

A27359

ADAPTER

- plug (YR. - 69-)

1шт.

9

A28541

COUPLING, BREAK AWAY

PLUG - break-away (YR. - 69-)

2шт.

10

A27440

CLAMP

- hose (YR. - 69-)

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

T38168

HOSE ASSY.

HOSE - 24" long (YR. - 69-)

1шт.

12

A27361

HOSE

- 76" long (YR. - 69-)

1шт.

13

221-377

ELBOW,90 Degree, 1/2" NPT

- pipe, 90 degrees (YR. - 69-)

4шт.

14

T38157

PIPE - hydraulic (107-1/2") (YR. - 69-) (4 Btm.)

1шт.

15

T38159

PIPE - hydraulic (138-1/4") (YR. - 69-) (5 Btm.)

1шт.

16

T38142

PIPE - hydraulic (168-1/2") (YR. - 69-) (6 Btm, 7 Btm.)

1шт.

17

T38158

PIPE - hydraulic (104") (YR. - 69-) (4 Btm.)

1шт.

18

T38160

PIPE - hydraulic (134-3/4") (YR. - 69-) (5 Btm.)

1шт.

19

T38141

PIPE - hydraulic (165") (YR. - 69-) (6 Btm., 7 Btm.)

1шт.

20

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-) (4 Btm.)

3шт.

20

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-) (5 Btm.)

4шт.

20

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-) (6 Btm.)

5шт.

20

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-) (7 Btm.)

6шт.

21

T38256

HOSE - 30.6" long (YR. - 69-) (4 Btm.)

3шт.

21

T38256

HOSE - 30.6" long (YR. - 69-) (5 Btm.)

4шт.

21

T38256

HOSE - 30.6" long (YR. - 69-) (6 Btm.)

5шт.

21

T38256

HOSE - 30.6" long (YR. - 69-) (7 Btm.)

6шт.

22

T38258

ELBOW

- pipe, 90 degrees (YR. - 69-)

1шт.

23

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - pipe, 2-1/2" (YR. - 69-)

2шт.

24

T21544

HOSE - 32" long (YR. - 1969-)

1шт.

24

T39732

HOSE - 28" long (YR. - 69-)

1шт.

25

T21545

HOSE ASSY.

HOSE - 26" long (YR. - 1969-)

1шт.

25

T39733

HOSE - 19" long (YR. - 69-)

1шт.

T39320

SEALER - tape (60" Teflon) (YR. - 69-)

1шт.
