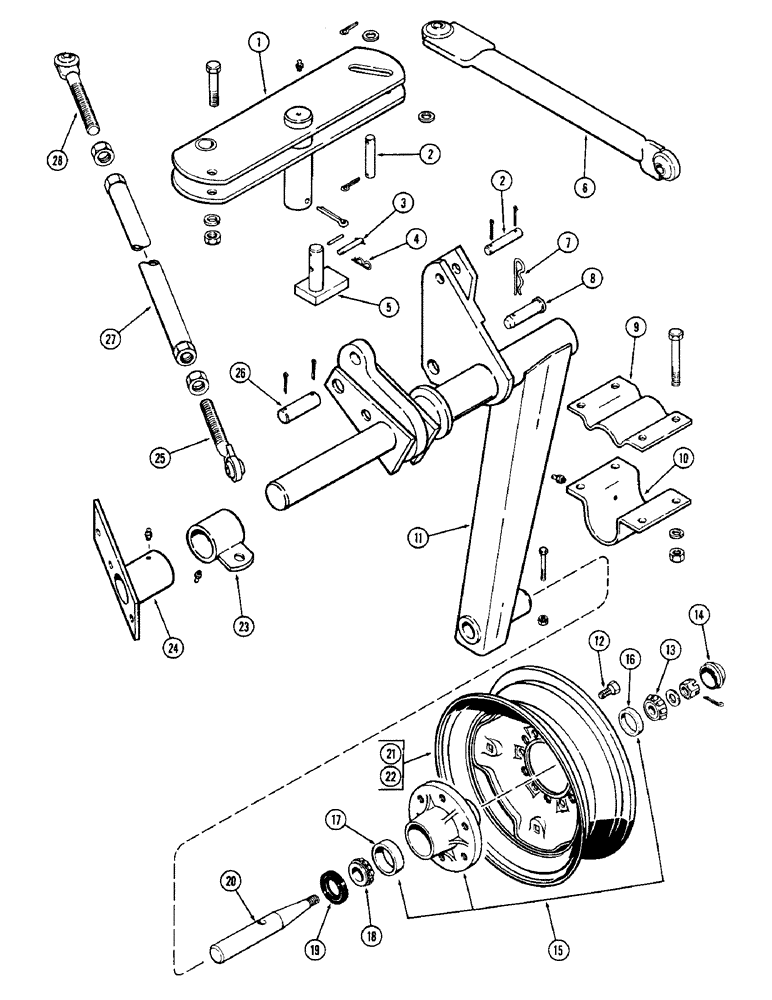

Запчасти Case IH 3300-SERIES (07C) - LAND AXLE AND WHEEL, TRAIL HITCH

1

T51348

BRACKET - pivot, lift arm (YR. - 71-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

132-205

X

PIN - cotter, 3/8" x 3-1/4"

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

2

T51344

PIN - lift link, 3/4" x 3-7/8" (YR. - 71-)

2шт.

195-45

WASHER,3/4"

2шт.

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

3

T51361

CLEVIS PIN

PIN - stop retaining, 3/8" x 2-1/2" (YR. - 71-)

1шт.

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

4

T11538

COTTER - hairpin (YR. - 71-)

1шт.

5

T51340

STOP - travel limit (YR. - 71-)

1шт.

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

6

T51354

PIPE - lift, land axle (YR. - 71-)

1шт.

7

T31049

COTTER - hairpin (YR. - 71-)

1шт.

8

T31032

PIN - lockout, transport (YR. - 71-)

1шт.

9

T51334

BEARING - land axle, upper half (YR. - 71-)

1шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

10

T51333

BEARING - land axle, lower half (YR. - 71-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

11

T51386

AXLE - land (YR. - 71-)

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex

1шт.

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex

1шт.

12

A30064

BOLT

- wheel (YR. - 71-)

6шт.

13

A30611

ROLLER BEARING

CONE - bearing, outer (YR. - 71-)

1шт.

14

G47038

CAP

- hub (YR. - 71-)

1шт.

15

T28066

HUB

- with cups (YR. - 71-)

1шт.

16

A30318

BEARING, CUP

CUP - bearing, outer (YR. - 71-)

1шт.

17

A29977

BEARING CUP

CUP - bearing, inner (YR. - 71-)

1шт.

18

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - bearing, inner (YR. - 71-)

1шт.

19

MTA2043S

OIL SEAL

SEAL - grease (YR. - 71-)

1шт.

20

T38994

SPINDLE

- axle (YR. - 71-)

1шт.

195-45

WASHER,3/4"

1шт.

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" N.F. hex, slotted

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

21

T25842

RIM

WHEEL - 14" (YR. - 71-)

1шт.

22

V13989

GEAR

WHEEL - 15" (YR. - 71-)

1шт.

23

T51359

BEARING - pullbar (YR. - 71-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

24

T51326

BEARING - inner, land axle (YR. - 71-)

1шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

25-1010

NUT,5/8"-11, G5

3шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

25

T51368

ADJUSTER

- lift pipe, R.H. thrd. (YR. - 71-)

1шт.

25-1418

NUT,Jam, 1 1/8"-7, G5

- jam, 1-1/8" N.C. hex, R.H. thrd.

1шт.

26

T51317

PIN - cylinder, 1-1/4" x 3-1/2" (YR. - 71-)

1шт.

132-180

X

PIN - cotter, 5/16" x 1-3/4"

2шт.

27

T51350

PIPE - lift, furrow wheel (YR. - 71-)

1шт.

28

T51336

ADJUSTER

- lift pipe, L.H. thrd. (YR. - 71-)

1шт.

129-351

NUT,Jam, 1 1/8"-7, G5, LH

- jam, 1-1/8" N.C. hex, L.H. thrd.

1шт.
