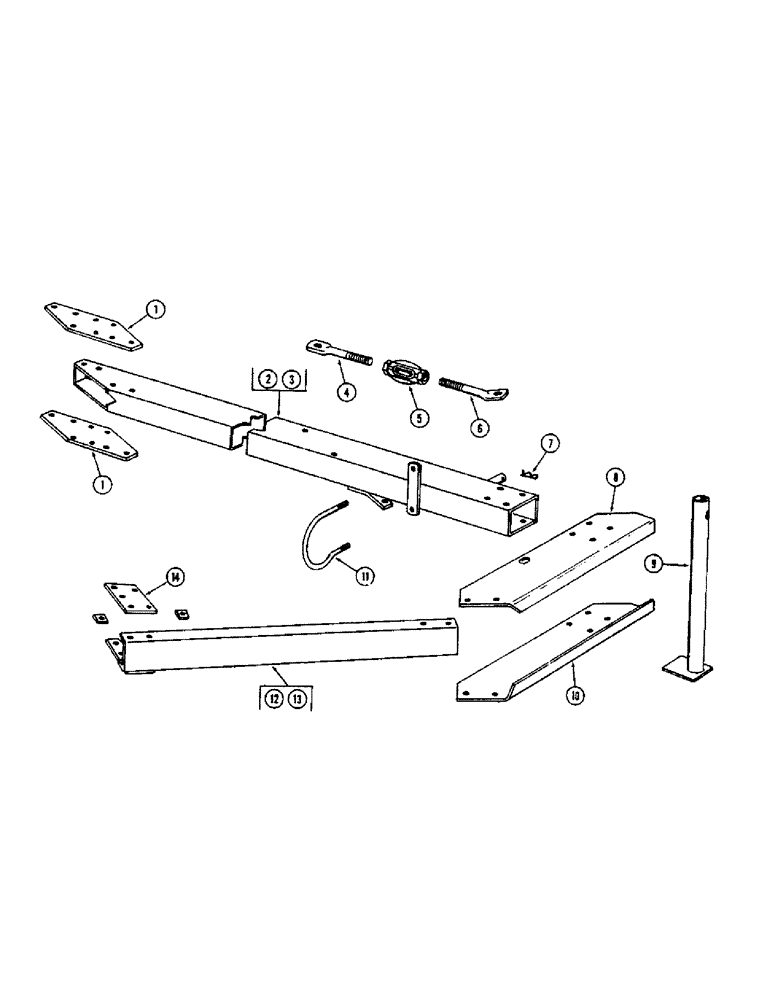

Запчасти Case IH 3300-SERIES (06) - HITCH TONGUE, IN FURROW HITCH, 4 AND 5 BOTTOM, 5 TO 6 BOTTOM, 6 AND 7 BOTTOM

1

T38138

PLATE - tongue (YR. - 69-)

2шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex (4 & 6 Btm., 5 to 6 Btm.)

8шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex (6 & 7 Btm.)

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

8шт.

2

T39726

TONGUE - hitch (Replaces T38149) (YR. - 69-) (4 & 5 Btm., 5 to 6 Btm.)

1шт.

3

T39727

TONGUE - hitch (Replaces T38202) (YR. - 69-) (6 & 7 Btm.)

1шт.

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- 5/8" x 5-1/4" N.C. hex (4 & 5 Btm., 5 to 6 Btm.)

2шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex (6 & 7 Btm.)

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga

2шт.

4

T38200

BAR - tie, adjusting, L.H. (YR. - 69-)

1шт.

129-350

NUT - 1" N.C. hex, jam

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

5

W2531

TURNBUCKLE (YR. - 69-)

1шт.

6

T38199

BAR - tie, adjusting, R.H. (YR. - 69-)

1шт.

25-1416

NUT,Jam, 1"-8, G5

- 1" N.C. hex, jam

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

7

T25682

SPLIT PIN

COTTER - hairpin (YR. - 69-)

1шт.

8

T38169

PLATE - hitch, top (YR. - 69-)

1шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex (4 & 5 Btm., 5 to 6 Btm.)

6шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex (6 & 7 Btm.)

6шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25-1010

NUT,5/8"-11, G5

6шт.

9

T38190

STAND - hold-up (YR. - 69-)

1шт.

10

T38170

PLATE - hitch, bottom (YR. - 69-)

1шт.

11

T38865

U-BOLT - accumulator (YR. - 69-)

1шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

12

T38175

BRACE - front diagonal (YR. - 69-) (4 & 5 Btm., 5 to 6 Btm.)

1шт.

13

T38204

BRACE - front diagonal (YR. - 69-) (6 & 7 Btm.)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

195-903

WASHER

- slope, 1-1/2" x 1-1/2" x 11/16"

1шт.

14

T38177

PLATE - top brace (YR. - 69-)

1шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex (4 & 5 Btm., 5 to 6 Btm.)

2шт.

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex (4 & 5 Btm., 5 to 6 Btm.)

1шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex (6 & 7 Btm.)

2шт.

13-10112

SCREW,Hex, 5/8" - 11 x 7", Gr 5

BOLT, MACHINE, (6 & 7 Btm.) Hex, 5/8"-11 x 7", G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

25-1010

NUT,5/8"-11, G5

5шт.

195-903

WASHER

- slope, 1-1/2" x 1-1/2" x 11/16"

2шт.
