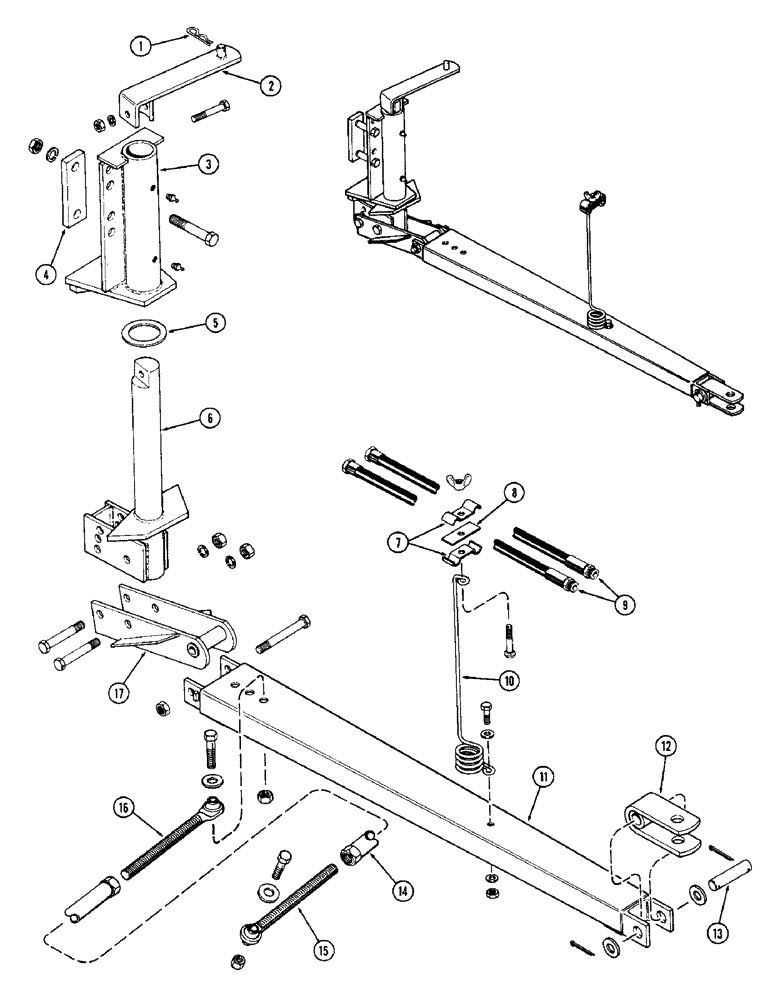

Запчасти Case IH 3300-SERIES (05A) - HITCH, TRAIL HITCH

1

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 71-)

1шт.

2

T38294

ARM - steering, front (YR. - 71-)

1шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

3

T51323

HITCH - trail (YR. - 71-)

1шт.

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex. (5 & 6 btm.)

4шт.

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex. (7 btm.)

2шт.

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

(7 btm.) Hex, 3/4"-10 x 6", G5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

4

T51396

PLATE - hitch attaching (YR. - 71-)

2шт.

5

H5531S

WASHER - 4" x 2-15/16" x 11 ga. (YR. - 71-)

1шт.

6

T51321

POST - hitch (YR. - 71-)

1шт.

7

T37564

CLAMP - hose support (YR. - 71-)

2шт.

11-756

BOLT - 7/16" x 3-1/2" N.C. cge.

1шт.

129-407

NUT, WING

NUT - wing, 7/16" N.C.

1шт.

8

T51362

PLATE - hose divider (YR. - 71-)

1шт.

9

T21544

HOSE - extension, 32" (YR. - 71-)

4шт.

10

H4730S

SUPPORT

- hose (YR. - 71-)

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9-16" x 12 ga.) 1/2"

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

11

T51400

TONGUE - hitch pole (YR. - 71-)

1шт.

15-14104

BOLT - 7/8" x 6-1/2" N.C. hex.

1шт.

230-41114

LOCK NUT,7/8"-9, GA

NUT - lock, 7/8" N.C. hex.

1шт.

12

T50552

CLEVIS - hitch (YR. - 71-)

1шт.

13

T50556

PIN - hitch clevis, 1-3/16" x 5-5/16" (YR. - 71-)

1шт.

95-18

WASHER,1 1/4" x 2 3/4" x .164"

- 2-3/4" x 1-1/4" x 8 ga.

2шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

2шт.

14

T51352

ROD - tie (In-furrow) (29") (YR. - 71-)

1шт.

15

T51366

ADJUSTER - tie rod, R.H. thrd. (YR. - 71-)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

95-12

WASHER,3/4"

- 2" x 13/16" x 9 ga.

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

16

T51367

ADJUSTER - tie rod, L.H. thrd. (YR. - 71-)

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

95-12

WASHER,3/4"

-2" x 13/16" x 9 ga.

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

17

T51369

BRACKET - hitch tongue (YR. - 71-)

1шт.

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - 3/4" x 5-1/4" N.C. hex.

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.
