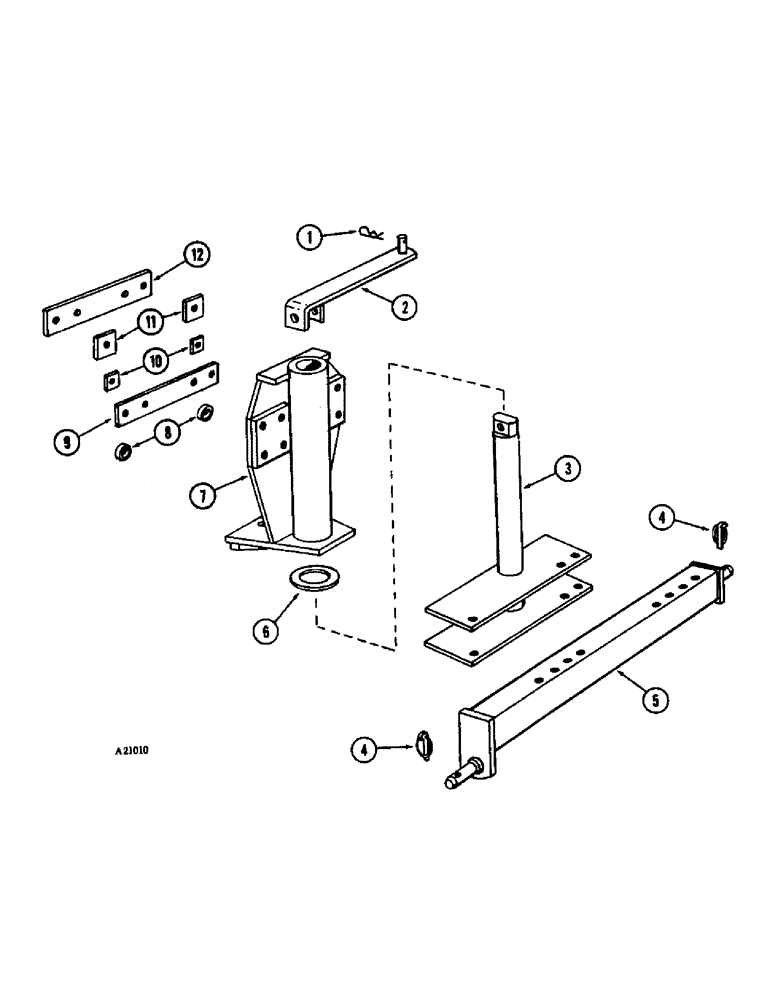

Запчасти Case IH 3300-SERIES (04) - HITCH AND DRAWBAR, IN FURROW HITCH

1

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-)

1шт.

2

T38294

ARM - steering, front (YR. - 69-)

1шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

3

T38287

PIVOT - hitch (YR. - 69-)

1шт.

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

25-1012

NUT,3/4"-10, G5

3шт.

4

A33509

PIN,11.18mm OD

- keeper (YR. - 69-)

2шт.

5

T38146

DRAWBAR - category II (Use T51471) (YR. - 1969)

1шт.

5

T39952

DRAWBAR

- category II (Use T51471) (YR. - 1970)

1шт.

5

T51471

DRAWBAR

- category II (YR. - 70-)

1шт.

6

H5531S

WASHER - 4" x 2-15/16" x 11 ga. (YR. - 69-)

1шт.

7

T38249

TRAILER HITCH

HITCH (YR. - 1969)

1шт.

7

T39960

TRAILER HITCH

HITCH (YR. - 70-)

1шт.

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

8

T38189

SPACER - hitch (4 & 5 btm. & 5 btm. to 6 btm.) (Use T39289) (YR. - 1969)

2шт.

9

T38161

PLATE - spacer (6 & 7 btm.) (Use T39290) (YR. - 1969)

1шт.

10

T39289

SPACER - hitch (4 & 5 btm. & 5 btm. to 6 btm.) (YR. - 69-)

2шт.

11

T39290

SPACER - hitch (6 & 7 btm.) (YR. - 69-)

2шт.

12

T38155

PLATE - back (4 & 5 btm. & 5 btm. to 6 btm.) (YR. - 69-)

1шт.

12

T38154

PLATE - back (6 & 7 btm.) (YR. - 69-)

1шт.
