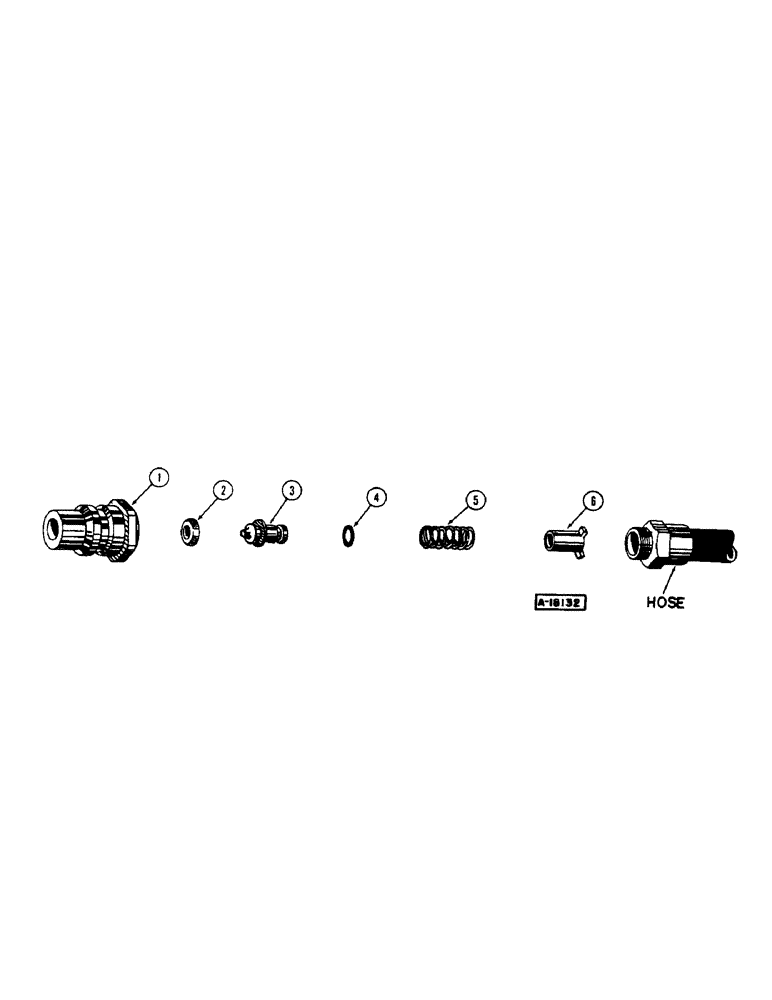

Запчасти Case IH 3300-SERIES (52[A]) - BREAK-AWAY PLUG

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway, male (YR. - 69-)

2шт.

1

A27356

PIPE FITTING

BODY - break-away plug (YR. - 69-)

1шт.

2

A33964

SEAL

- piston (YR. - 69-)

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

3

A27508

PISTON

- break-away plug (YR. - 69-)

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

4

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston sleeve (YR. - 69-)

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

5

A27351

SPRING

- piston (YR. - 69-)

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

6

51200858

SLEEVE

- piston (YR. - 69-)

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

A40459

KIT

BREAK-AWAY COUPLING REPAIR KIT - Includes: Ref. 2, 3, 4, 5 and 6 (YR. - 69-)

1шт.
