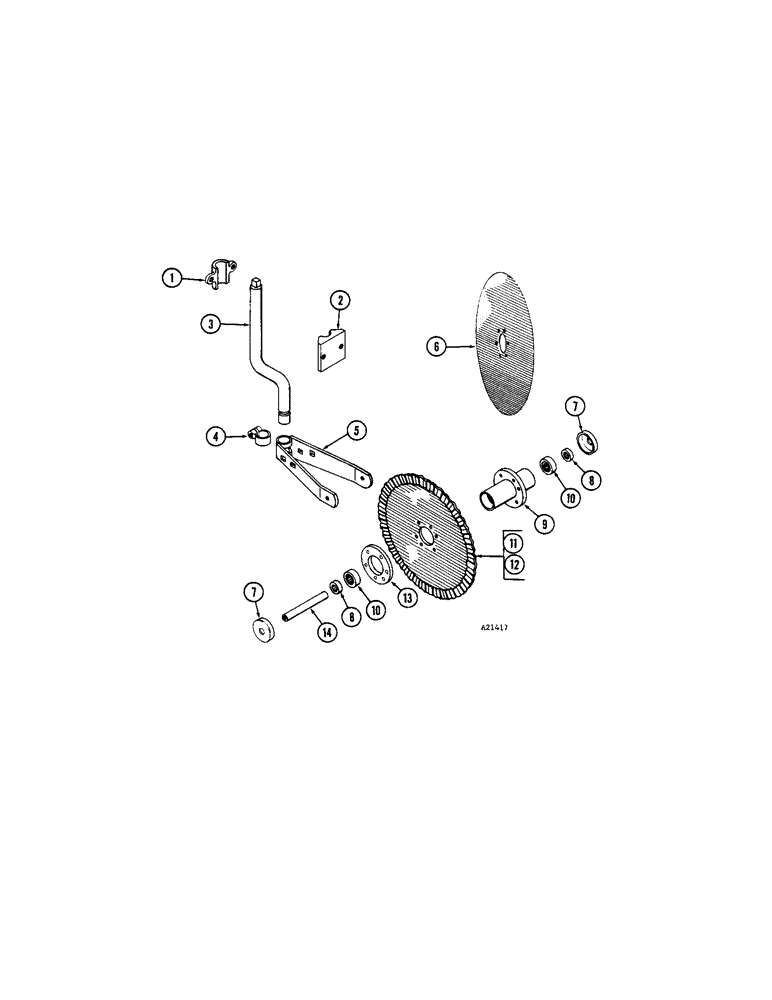

Запчасти Case IH 3300-SERIES (50[A]) - ANTI-FRICTION COULTERS

1

T17137

CAP

- coulter clamp (YR. - 69-)

1шт.

2

T17140

CLAMP

- beam, coulter (YR. - 1969)

1шт.

2

T50250

CLAMP

- beam, coulter (YR. - 70-)

1шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga.

2шт.

3

T28052

STANDARD - coulter (YR. - 69-)

1шт.

4

W2774

CLAMP

- pivot, yoke (YR. - 69-)

1шт.

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

5

T28051

YOKE - coulter (YR. - 69-)

1шт.

6

T13053

PLOW DISC

BLADE - 18" plain (YR. - 69-)

1шт.

7

T39595

WASHER

- trash guard (YR. - 69-)

2шт.

8

T39597

SPACER

- hub (YR. - 69-)

2шт.

9

T39596

HUB

- w/bearings (YR. - 69-)

1шт.

10

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING (YR. - 69-)

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex

6шт.

92-6

LOCK WASHER,3/8"

6шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex

6шт.

16-8116

LARGE PIN

BOLT - 1/2" x 7-1/4" N.F. hex

1шт.

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

LOCKNUT - 1/2" N.F. hex

1шт.

11

T27035

BLADE

- 17" fluted (YR. - 69-)

1шт.

12

T32696

BLADE

- 20" fluted (YR. - 69-)

1шт.

13

T12707

WASHER

- coulter hub (YR. - 69-)

1шт.

14

T39593

AXLE

- coulter (YR. - 69-)

1шт.
