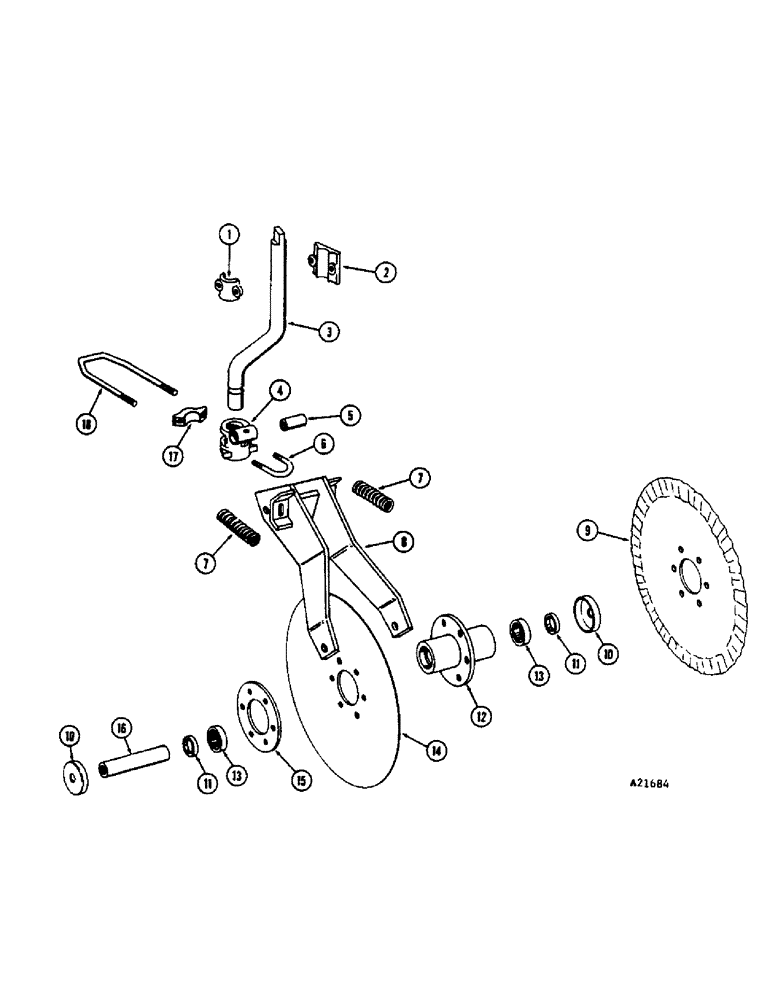

Запчасти Case IH 3300-SERIES (46) - CUSHION COULTER, ANTI-FRICTION BEARING

1

T17137

CAP

- coulter clamp (YR. - 69-)

1шт.

2

T17140

CLAMP

- beam, coulter (YR. - 1969-)

1шт.

2

T50250

CLAMP

- beam, coulter (YR. - 70-)

1шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga.

2шт.

3

T38339

STANDARD - coulter (YR. - 69-)

1шт.

4

T2165

MOUNTING PARTS

MOUNT - coulter (YR. - 69-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

5

T38340

SPACER

- arm (YR. - 69-)

1шт.

6

T38336

HARDWARE

"U" BOLT (YR. - 69-)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

7

T38341

VALVE SPRING

SPRING (YR. - 69-)

2шт.

8

T39321

ARM

- coulter (YR. - 69-)

1шт.

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- 5/8" x 4-1/4" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

16-8116

LARGE PIN

BOLT - 1/2" x 7-1/4" N.F. hex

1шт.

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

LOCKNUT - 1/2" N.F. hex

1шт.

9

T27035

BLADE

- 17" fluted (YR. - 69-)

1шт.

10

T39595

WASHER

- trash guard (YR. - 69-)

2шт.

11

T39597

SPACER

- hub (YR. - 69-)

2шт.

12

T39596

HUB

- w/bearings (YR. - 69-)

1шт.

13

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING (YR. - 69-)

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex

6шт.

92-6

LOCK WASHER,3/8"

6шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex, jam

6шт.

14

T13053

PLOW DISC

BLADE - 18" plain (YR. - 69-)

1шт.

15

T12707

WASHER

- hub (YR. - 69-)

1шт.

16

T39593

AXLE

- coulter (YR. - 69-)

1шт.

17

T2164

CLASP

CLAMP - coulter (YR. - 69-)

1шт.

18

T38335

U-BOLT

"U" BOLT (YR. - 69-)

1шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga.

2шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 5/8" N.C. hex

2шт.
