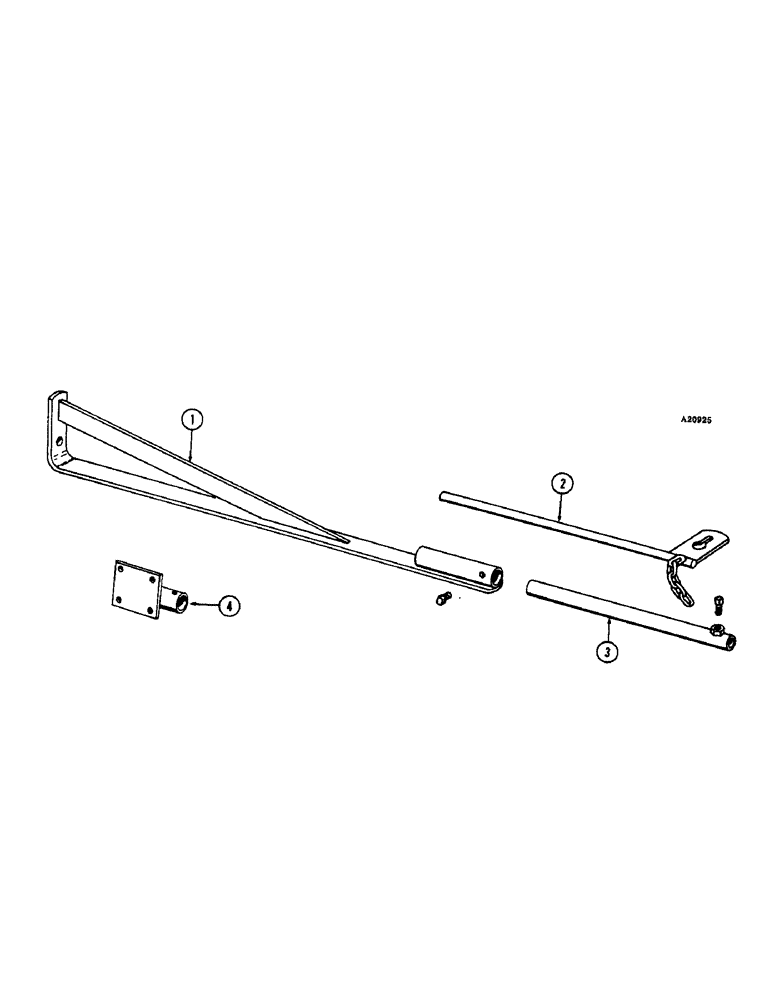

Запчасти Case IH 3300-SERIES (42[B]) - FURROW MARKER GAUGE

1

T37628

BRACKET - furrow marker (For 930 or 1030 only) (YR. - 69-)

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SETSCREW - 3/8" x 5/8" N.C., C.P.

1шт.

2

T34616

CLIP AND CHAIN ASSEMBLY (YR. - 69-)

1шт.

3

T34614

EXTENSION - marker (YR. - 69-)

1шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SETSCREW - 3/8" x 3/4" N.C., C.P.

1шт.

4

T34611

BRACKET - furrow marker (For 1200 or 1470 tractor) (YR. - 69-)

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

92-5

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga.

4шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SETSCREW - 3/8" x 5/8" N.C., C.P.

1шт.
