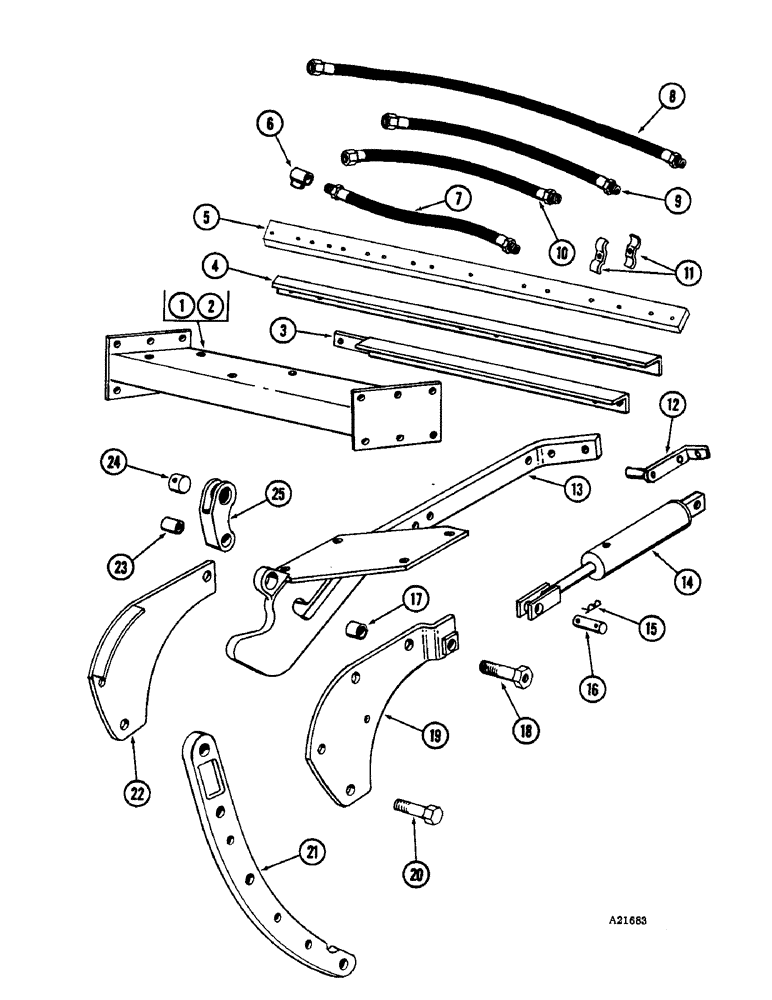

Запчасти Case IH 3300-SERIES (38) - BOTTOM ATTACHMENT, TO EXPAND 6 BOTTOM TO 7 BOTTOM, OR 6 BOTTOM TO 8 BOTTOM, 7 AND 8 BOTTOM

1

T38207

BRACE - beam extension, rear (YR. - 69-) (7 Btm.)

1шт.

2

T39569

BRACE - beam extension, rear (YR. - 69-) (8 Btm.)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(7 Btm.) Hex, 5/8"-11 x 2", G5

6шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex (7 Btm.)

4шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex (8 Btm.)

8шт.

113-668

BOLT - 5/8" x 2" N.C. hex, w/1" thread (8 Btm.) Hex, 5/8"-11 x 2", G5

6шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (7 Btm.) 5/8"

10шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (8 Btm.) 5/8"

14шт.

25-1010

NUT,5/8"-11, G5

(7 Btm.) 5/8"-11, G5

10шт.

25-1010

NUT,5/8"-11, G5

(8 Btm.) 5/8"-11, G5

14шт.

3

T38239

EXTENSION - diagonal brace (YR. - 69-) (7 Btm.)

1шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(7 Btm.) Hex, 5/8"-11 x 3", G5

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex (7 Btm.)

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (7 Btm.) 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(7 Btm.) 5/8"-11, G5

2шт.

4

T39575

ANGLE - extension (YR. - 69-) (8 Btm.)

1шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(8 Btm.) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(8 Btm.) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(8 Btm.) Hex, 5/8"-11 x 3 1/4", G5

4шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex (8 Btm.)

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (8 Btm.) 5/8"

9шт.

25-1010

NUT,5/8"-11, G5

(8 Btm.) 5/8"-11, G5

9шт.

5

T39574

STIFFENER - extension angle (YR. - 69-) (8 Btm.)

1шт.

6

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-) (7 Btm.)

1шт.

6

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-) (8 Btm.)

2шт.

7

T38256

HOSE - 30.6" long (YR. - 69-) (7 Btm.)

1шт.

7

T38256

HOSE - 30.6" long (YR. - 69-) (8 Btm.)

2шт.

8

RO237S

HOSE - 60" long (YR. - 69-) (8 Btm.)

2шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" - 90 degrees (8 Btm.)

2шт.

9

T21544

HOSE - 32" long (YR. - 69-) (7 Btm.)

1шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" - 90 degrees (7 Btm.)

1шт.

10

T21545

HOSE ASSY.

HOSE - 26" long (YR. - 69-) (7 Btm.)

1шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" - 90 degrees (7 Btm.)

1шт.

11

A27440

CLAMP

- hose (YR. - 69-)

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

12

T38187

ANCHOR - ram (YR. - 69-) (7 Btm.)

1шт.

12

T38187

ANCHOR - ram (YR. - 69-) (8 Btm.)

2шт.

13

T38292

BEAM - frame (YR. - 69-) (7 Btm.)

1шт.

13

T38292

BEAM - frame (YR. - 69-) (8 Btm.)

2шт.

14

T38333

CYLINDER

- reset (YR. - 69-) (7 Btm.)

1шт.

14

T38333

CYLINDER

- reset (YR. - 69-) (8 Btm.)

2шт.

221-166

NIPPLE - pipe, 3" (7 Btm.) Nipple, 3/8" NPT x 3"

1шт.

221-1656

PLUG,Hex Hd, 1"-11 1/2

NIPPLE - pipe, 3" (8 Btm.)

2шт.

15

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-) (7 Btm.)

1шт.

15

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-) (8 Btm.)

2шт.

16

T39725

PIN - ram, 2-1/2" x 1" (Replaces t38167) (YR. - 69-) (7 Btm.)

1шт.

16

T39725

PIN - ram, 2-1/2" x 1" (Replaces T38167) (YR. - 69-) (8 Btm.)

2шт.

132-149

X

PIN - cotter, 1/4" x 1-3/8" (7 Btm.)

1шт.

132-149

X

PIN - cotter, 1/4" x 1-3/8" (8 Btm.)

2шт.

17

T38172

ROLLER (YR. - 69-) (7 Btm.)

1шт.

17

T38172

ROLLER (YR. - 69-) (8 Btm.)

2шт.

18

T38166

BOLT

- pivot (YR. - 69-) (7 Btm.)

1шт.

18

T38166

BOLT

- pivot (YR. - 69-) (8 Btm.)

2шт.

25-1214

NUT - 7/8" N.C. hex, slotted (7 Btm.) 7/8"-9, G5

1шт.

25-1214

NUT - 7/8" N.C. hex, slotted (8 Btm.) 7/8"-9, G5

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (7 Btm.) 3/16" x 1 1/2"

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), (8 Btm.) 3/16" x 1 1/2"

2шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga. (7 Btm.)

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga. (8 Btm.)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) (7 Btm.) 1/4"-28 NPT x .54" lg

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) (8 Btm.) 1/4"-28 NPT x .54" lg

2шт.

19

T38320

PLATE - beam, R.H. (YR. - 69-) (7 Btm.)

1шт.

19

T38320

PLATE - beam, R.H. (YR. - 69-) (8 Btm.)

2шт.

113-413

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex w/1" thread (7 Btm.)

1шт.

113-413

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex w/1" thread (8 Btm.)

2шт.

92-8

LOCK WASHER,1/2"

(7 Btm.) 1/2"

1шт.

92-8

LOCK WASHER,1/2"

(8 Btm.) 1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (7 Btm.)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (8 Btm.)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight (7 Btm.)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight (8 Btm.)

2шт.

20

113-757

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

w/1" thread (YR. - 69-) (7 Btm.) Hex, 3/4"-10 x 3 1/4", G8

1шт.

20

113-757

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

w/1" thread (YR. - 69-) (8 Btm.) Hex, 3/4"-10 x 3 1/4", G8

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (7 Btm.) 3/4"

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (8 Btm.) 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

(7 Btm.) 3/4"-10, G5

1шт.

25-1012

NUT,3/4"-10, G5

(8 Btm.) 3/4"-10, G5

2шт.
