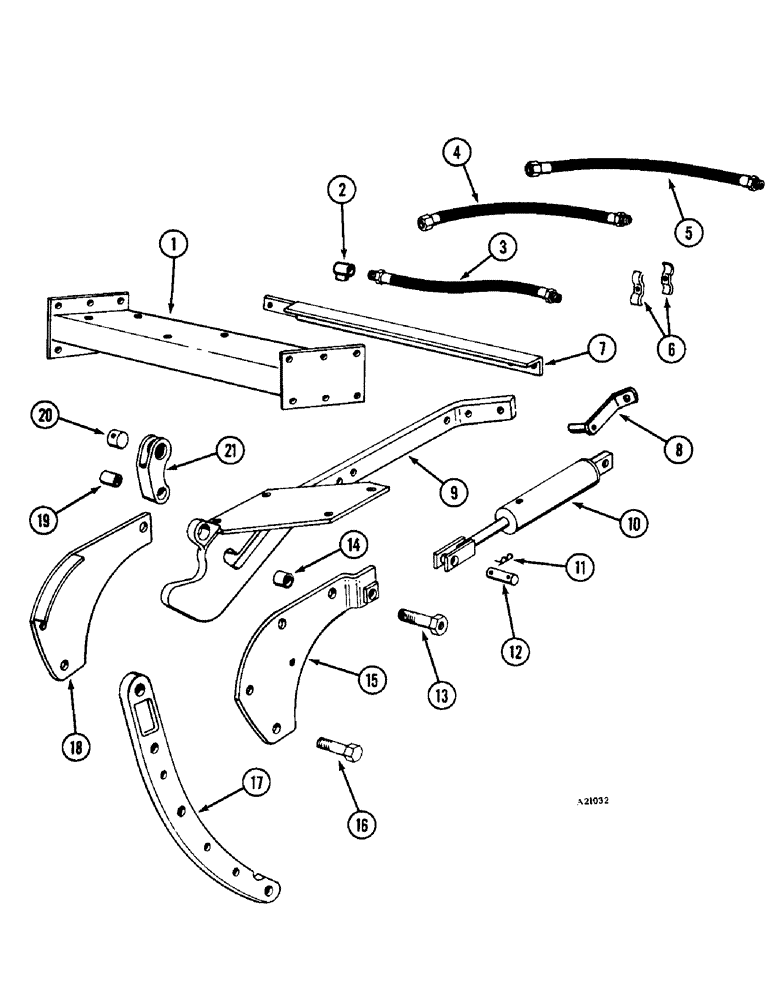

Запчасти Case IH 3300-SERIES (36) - BOTTOM ATTACHMENT, TO EXPAND 4 BOTTOM TO 5 BOTTOM, OR 5 BOTTOM TO 6 BOTTOM

1

T38247

BRACE - beam extension, rear (YR. - 69-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex

3шт.

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

25-1010

NUT,5/8"-11, G5

10шт.

2

D40181

X

TEE - pipe, female, 3/8" (YR. - 69-)

1шт.

3

T38256

HOSE - 30.6" long (YR. - 69-)

1шт.

4

T21545

HOSE ASSY.

HOSE - 26" long (YR. - 69-)

1шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" - 90 degrees

1шт.

5

T21544

HOSE - 32" long (YR. - 69-)

1шт.

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" 90 degrees

1шт.

6

A27440

CLAMP

- hose (YR. - 69-)

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

7

T38239

EXTENSION - diagonal brace (YR. - 69-)

1шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

8

T38187

ANCHOR - ram (YR. - 69-)

1шт.

9

T38292

BEAM - frame (YR. - 69-)

1шт.

10

T38333

CYLINDER

- reset (YR. - 69-)

1шт.

221-166

NIPPLE - pipe, 3" Nipple, 3/8" NPT x 3"

1шт.

11

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-)

1шт.

12

T39725

PIN - ram, 2-1/2" x 1" (Replaces T38167) (YR. - 69-)

1шт.

132-149

X

PIN - cotter, 1/4" x 1-3/8"

1шт.

13

T38166

BOLT

- pivot (YR. - 69-)

1шт.

25-1214

NUT - 7/8" N.C. hex, slotted 7/8"-9, G5

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga.

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

14

T38172

ROLLER (YR. - 69-)

1шт.

15

T38320

PLATE - beam, R.H. (YR. - 69-)

1шт.

113-413

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex w/1" thread

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

16

113-757

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

w/1" thread (YR. - 69-) Hex, 3/4"-10 x 3 1/4", G8

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

17

T24256

STANDARD (YR. - 69-)

1шт.

18

T38317

PLATE - beam, L.H. (YR. - 69-)

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

19

T38293

BUSHING - pivot, lower (YR. - 69-)

1шт.

113-674

BOLT - 5/8" x 3-1/4" N.C. hex w/1" thread

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

20

T38312

PIN

- pivot, upper (YR. - 69-)

1шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

21

T38290

LINK - pivot, upper (YR. - 69-)

1шт.
