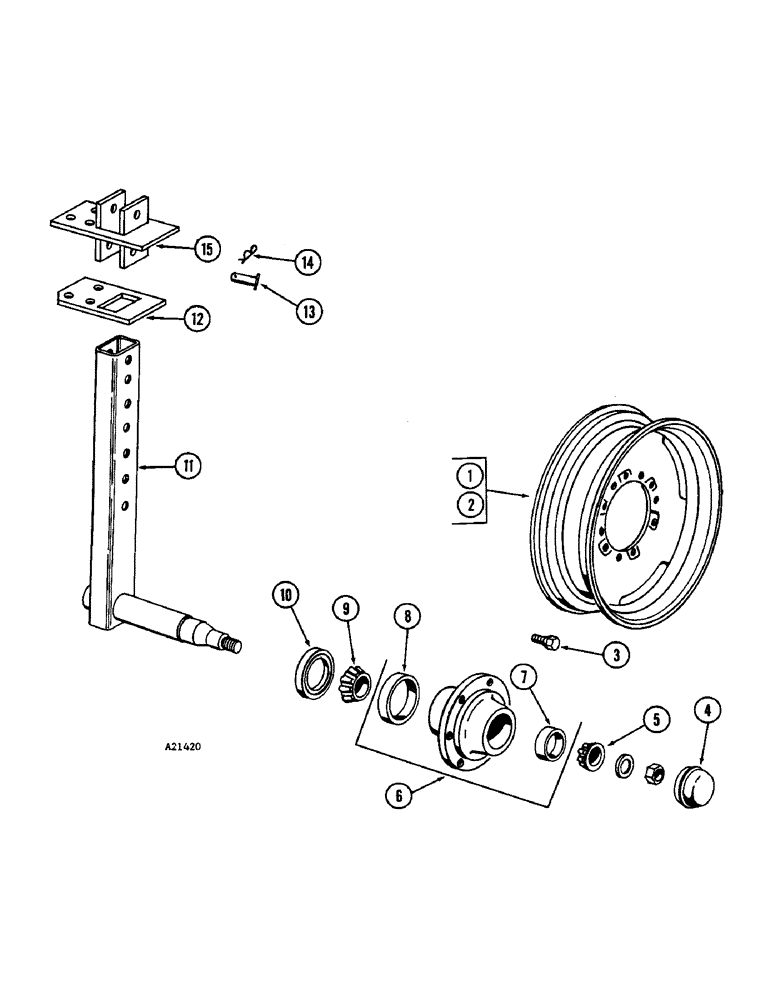

Запчасти Case IH 3300-SERIES (34) - GAUGE WHEEL AND AXLE, HEAVY DUTY

1

T25842

RIM

WHEEL - 14" (YR. - 69-)

1шт.

2

V13989

GEAR

WHEEL - 15" (YR. - 69-)

1шт.

3

A30064

BOLT

- hub (YR. - 69-)

6шт.

4

G47038

CAP

- hub (YR. - 69-)

1шт.

5

A30611

ROLLER BEARING

CONE - bearing, outer (YR. - 69-)

1шт.

6

T28066

HUB

- w/cups (Yr. - 69-)

1шт.

7

A30318

BEARING, CUP

CUP - bearing, outer (YR. - 69-)

1шт.

8

A29977

BEARING CUP

CUP - bearing, inner (YR. - 69-)

1шт.

9

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - bearing, inner (YR. - 69-)

1шт.

10

MTA2043S

OIL SEAL

SEAL - grease (YR. - 69-)

1шт.

11

T39579

AXLE - gauge wheel (YR. - 69-)

1шт.

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" N.F. hex, slotted

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

195-2117

WASHER,13/16" x 1 1/2" x .134", HDN

- 1-1/2" x 13/16" x 10 ga.

1шт.

12

T39578

BRACKET - gauge wheel, bottom (YR. - 69-)

1шт.

13

T51058

PIN (YR. - 69-)

1шт.

14

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-)

1шт.

15

T39576

BRACKET - gauge wheel (YR. - 69-)

1шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex

3шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8 N.C. hex Gripco

1шт.
