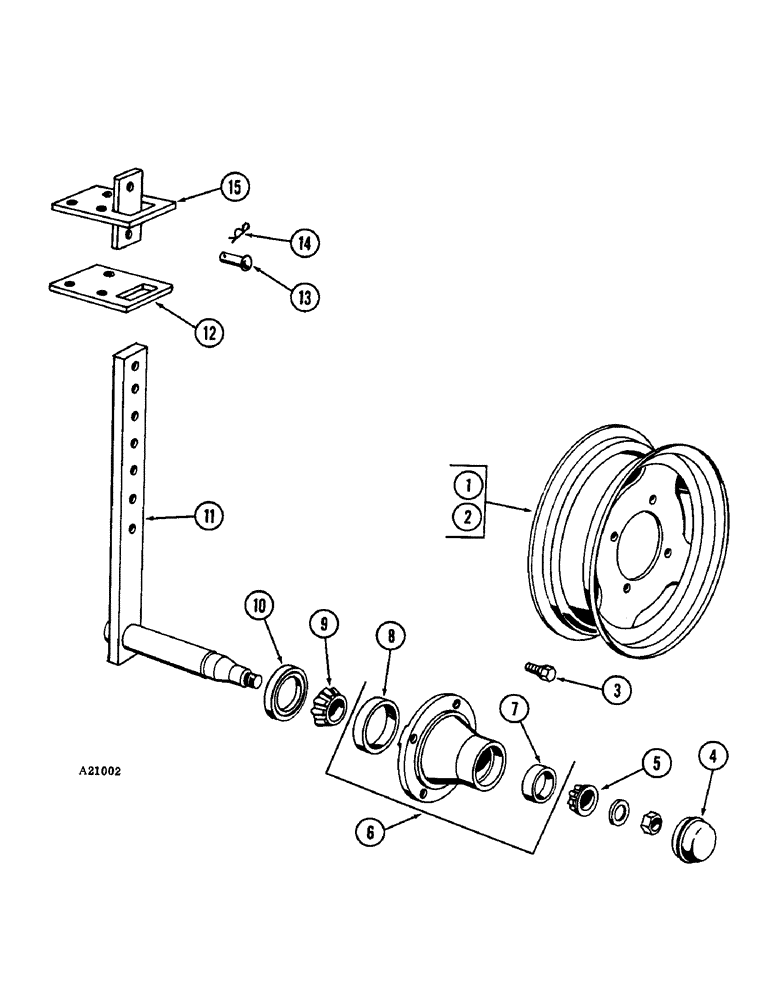

Запчасти Case IH 3300-SERIES (32) - GAUGE WHEEL AND AXLE, STANDARD

1

T25852

RIM

WHEEL - 14" (YR. - 69-)

1шт.

2

F60951

WHEEL

- 15" (YR. - 69-)

1шт.

3

A30064

BOLT

- hub (YR. - 69-)

4шт.

4

MT2560S

CAP

- hub (YR. - 69-)

1шт.

5

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (YR. - 69-)

1шт.

6

T34308

HUB ASSY.

HUB - w/cups (YR. - 69-)

1шт.

7

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (YR. - 69-)

1шт.

8

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner (YR. - 69-)

1шт.

9

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner (YR. - 69-)

1шт.

10

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

(YR. - 69-)

1шт.

11

T38227

AXLE

- gauge wheel (YR. - 1969-)

1шт.

11

T50188

AXLE

- gauge wheel (YR. - 70-)

1шт.

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex, slotted

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

195-41

WASHER,5/8"

- 1-5/16" x 21/32" x 13 ga.

1шт.

12

T38284

BRACKET - gauge wheel, bottom (YR. - 69-)

1шт.

13

T38238

RIVET - 2-1/4" x 3/4" rd. hd., drilled (YR. - 69-)

1шт.

14

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-)

1шт.

15

T38282

BRACKET - gauge wheel (YR. - 69-)

1шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex

3шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8" N.C. hex Gripco

1шт.
