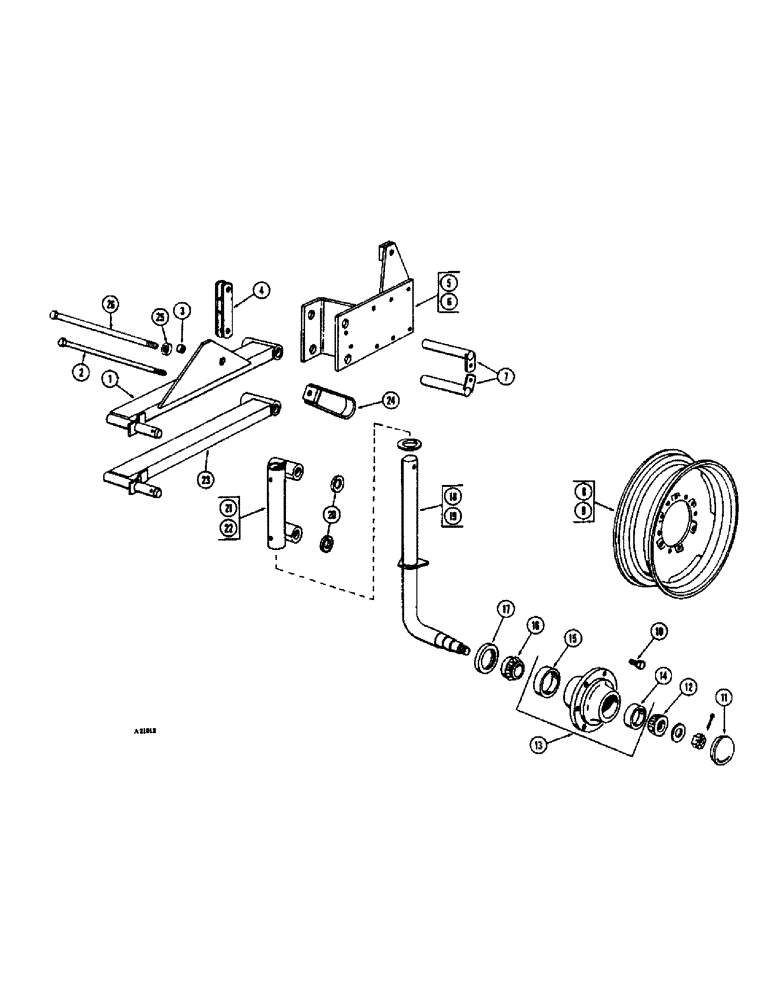

Запчасти Case IH 3300-SERIES (30) - REAR WHEEL AND AXLE

1

T38321

ARM - pivot, upper (YR. - 69-)

1шт.

132-200

SPLIT PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 45 degrees

1шт.

2

BOLT - depth adjusting (4 & 5 Btm.) Use T39731 ref. 26 and T39730 ref. 25 (YR. - 69-)

1шт.

25-1414

NUT,Jam, 7/8"-9, G5

- 7/8" N.C. hex, jam

1шт.

3

T39445

BUSHING (YR. - 69-)

1шт.

4

T38279

STRAP (YR. - 69-)

1шт.

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

5

T38274

BRACKET - rear wheel (4 and 5 Btm.) (YR. - 69-)

1шт.

6

T38285

BRACKET - rear wheel (6, 7 & 8 Btm.) (YR. - 69-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25-1010

NUT,5/8"-11, G5

6шт.

7

T38132

PIN - pivot arm (YR. - 69-)

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

8

T25842

RIM

WHEEL - 14" (YR. - 69-)

1шт.

9

V13989

GEAR

WHEEL - 15" (YR. - 69-)

1шт.

10

A30064

BOLT

- wheel (YR. - 69-)

6шт.

11

T30029

HUB CAP

CAP - hub (YR. - 69-)

1шт.

12

A29976

ROLLER BEARING

CONE - bearing, outer (YR. - 69-)

1шт.

13

T30011

HUB

- w/cups (YR. - 69-)

1шт.

14

A29977

BEARING CUP

CUP - bearing, outer (YR. - 69-)

1шт.

15

40421

BEARING CUP

CUP - bearing, inner (YR. - 69-)

1шт.

16

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing, inner (YR. - 69-)

1шт.

17

T30028

SEAL

- grease (YR. - 69-)

1шт.

18

T38243

AXLE - rear (4 and 5 Btm.) 1-3/4" dia. (YR. - 69-)

1шт.

19

T38216

AXLE - rear (6, 7 & 8 Btm.) 2" dia. (YR. - 69-)

1шт.

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex, slotted

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga. (6, 7 & 8 Btm)

1шт.

195-2159

WASHER - 2-1/2" x 1-13/16" x 16 ga. (4 & 5 Btm.)

1шт.

195-2155

WASHER,2 1/16" x 3" x .109"

- 3" x 2-1/16" x 12 ga. (6, 7 & 8 Btm.)

1шт.

20

W7055S

WASHER - 2-1/4" x 1-9/16" x 12 ga.

2шт.

21

T2162

HOUSING

- axle (4 & 5 Btm.) (YR. - 69-)

1шт.

22

T2163

HOUSING - axle (6, 7 & 8 Btm.) (YR. - 69-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

4шт.

23

T38137

ARM - pivot, lower (YR. - 69-)

1шт.

132-200

SPLIT PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 45 degrees

1шт.

24

T38820

STRAP - depth adjusting (YR. - 69-)

1шт.

25

T39730

WASHER - depth bolt (6, 7 & 9 Btm.) (YR. - 69-)

1шт.

26

T39731

BOLT - depth adjusting (6, 7 & 8 Btm.) (YR. - 69-)

1шт.

25-1414

NUT,Jam, 7/8"-9, G5

- 7/8" N.C. hex, jam

1шт.
