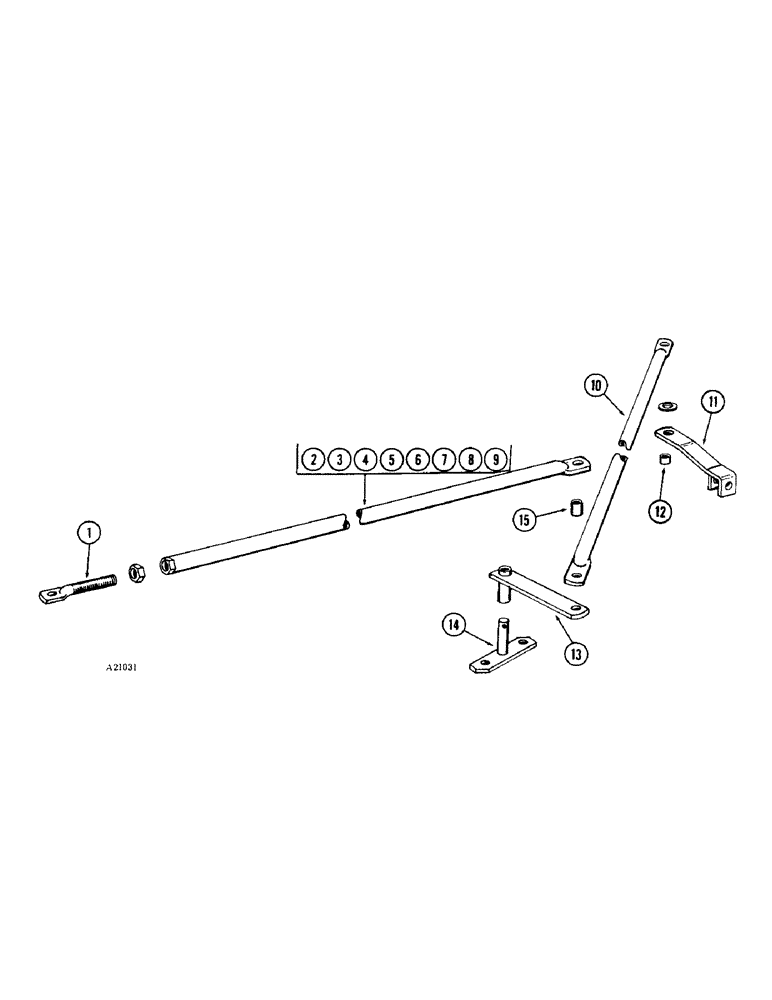

Запчасти Case IH 3300-SERIES (28) - STEERING RODS

1

T36699

ROD - adjusting, front steering (YR. - 69-)

1шт.

25-1418

NUT,Jam, 1 1/8"-7, G5

- 1-1/8" N.C. hex., jam

1шт.

2

T38262

ROD - steering, front (4 Btm. - in furrow) (74-1/2") (YR. - 69-)

1шт.

3

T38264

ROD - steering, front (5 Btm. - in furrow) (101") (YR. - 69-)

1шт.

4

T38266

SPRING

ROD - steering, front (6 Btm. - in furrow and 5 Btm. - on land) (130") (YR. - 69-)

1шт.

5

T38268

ROD - steering, front (7 Btm. - in furrow and 6 Btm. - on land) (158-1/2") (YR. - 69-)

1шт.

6

T38270

ROD - steering, front (7 Btm. - on land) (184") (YR. - 69-)

1шт.

7

T39571

ROD - steering, front (8 Btm. - on land) (213") (YR. - 69-)

1шт.

8

T51380

ROD - steering, front (6 Btm. - on land trail hitch) (126") (YR. - 71-)

1шт.

9

T51383

ROD - steering, front (7 Btm. - on land trail hitch) (156") (YR. - 71-)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

95-12

WASHER,3/4"

- 2" x 13/16" x 9 ga.

1шт.

10

T38272

ROD - steering, rear (YR. - 69-)

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

95-12

WASHER,3/4"

- 2" x 13/16" x 9 ga.

1шт.

11

T38296

ARM - steering, rear (YR. - 69-71-)

1шт.

11

T51547

ARM - steering, rear (4 & 5 Btm.) (YR. - 71-)

1шт.

11

T51544

ARM - steering, rear (6, 7 & 8 Btm.) (YR. - 71-)

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

12

T38188

BUSHING

- steering rod (25/32" x 1") (YR. - 69-)

1шт.

13

T38180

ARM - center (YR. - 69-)

1шт.

14

T38183

PIVOT - center (YR. - 69-)

1шт.

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex (4 & 5 Btm.)

1шт.

13-10100

BOLT

- 5/8" x 6-1/4" N.C. hex (4 & 5 Btm.)

1шт.

13-10112

SCREW,Hex, 5/8" - 11 x 7", Gr 5

BOLT, MACHINE, (6, 7 & 8 Btm.) Hex, 5/8"-11 x 7", G5

1шт.

13-10116

BOLT - 5/8" x 7-1/4" N.C. hex (6, 7 & 8 Btm.) Hex, 5/8"-11 x 7 1/4", G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

132-182

PIN

- cotter, 5/16" x 2"

1шт.

15

T38179

BUSHING

- pivot arm, 1-1/2" x 1" (YR. - 69-)

1шт.
