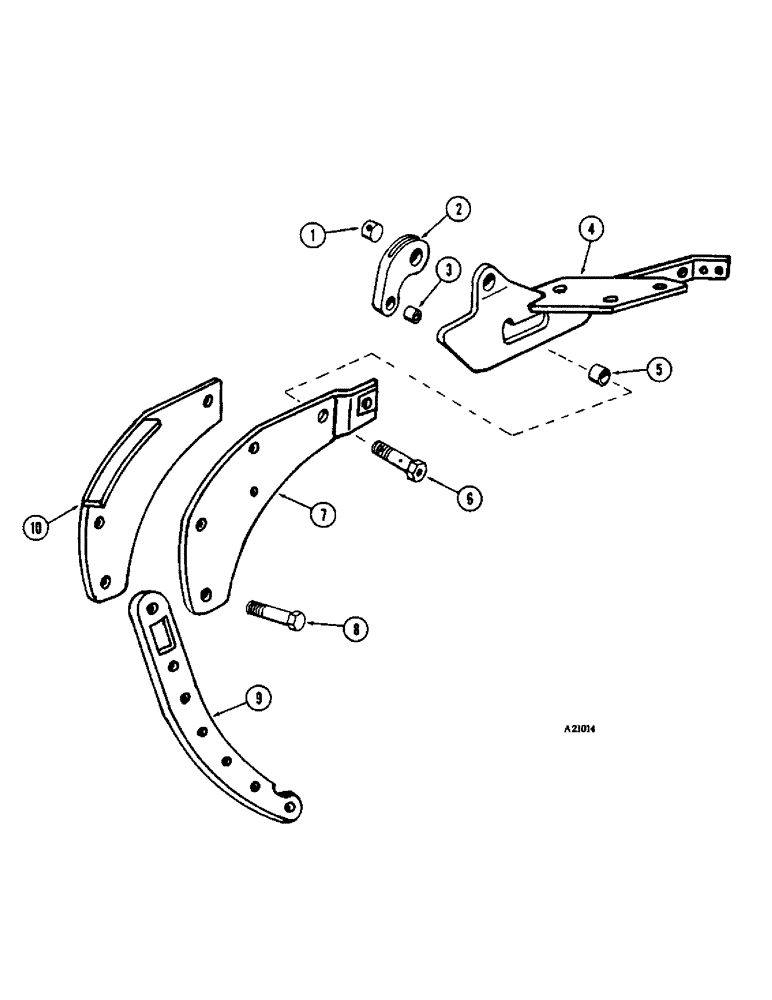

Запчасти Case IH 3300-SERIES (26) - INDIVIDUAL TRIP BEAM

1

T38312

PIN

- pivot, upper (YR. - 69-)

1шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

2

T38290

LINK - pivot, upper (YR. - 69-)

1шт.

3

T38293

BUSHING - pivot, lower (YR. - 69-)

1шт.

113-674

BOLT - 5/8" x 3-1/4" N.C. hex gr. 8 w/1" thread

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

4

T38292

BEAM - frame (YR. - 69-)

1шт.

5

T38172

ROLLER (YR. - 69-)

1шт.

6

T38166

BOLT

- pivot, 7/8" N.C. hex drilled (YR. - 69-)

1шт.

25-1214

NUT - 7/8" N.C. hex slotted 7/8"-9, G5

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga.

1шт.

7

T38320

PLATE - beam, R.H. (YR. - 69-)

1шт.

113-413

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex w/1" thread

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

8

113-757

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

w/1" thread Hex, 3/4"-10 x 3 1/4", G8

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

9

T24256

STANDARD (YR. - 69-)

1шт.

10

T38317

PLATE - beam, L.H. (YR. - 69-)

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
