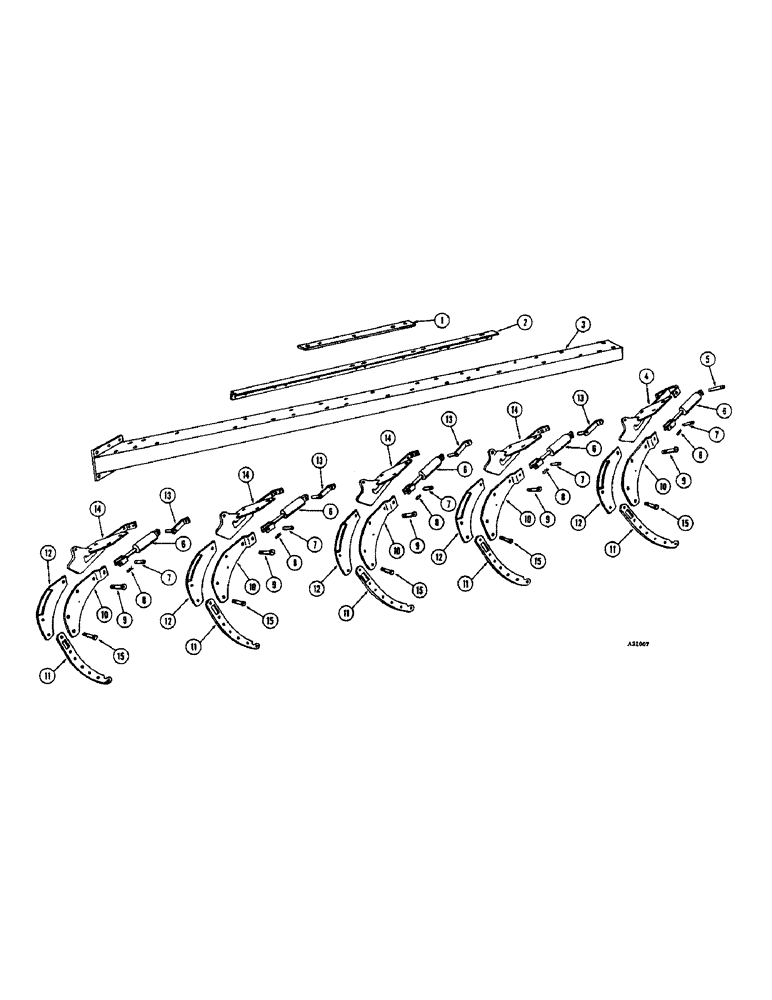

Запчасти Case IH 3300-SERIES (22) - FRAME, 5 BOTTOM

1

T38815

STIFFENER - diagonal brace (YR. - 69-)

1шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

25-1010

NUT,5/8"-11, G5

5шт.

2

T50894

BRACE - diagonal (YR. - 69-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25-1010

NUT,5/8"-11, G5

6шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

195-903

WASHER

- slope, 1-1/2" x 1-1/2" x 11/16"

1шт.

3

T38242

BRACE - main beam (YR. - 69-)

1шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex

12шт.

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex

4шт.

13-10100

BOLT

- 5/8" x 6-1/4"

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

17шт.

25-1010

NUT,5/8"-11, G5

17шт.

4

T38291

BEAM - frame #1 (YR. - 69-)

1шт.

5

T38212

PIN - ram anchor, 5-13/64" x 1" (YR. - 69-)

1шт.

132-149

X

PIN - cotter, 1/4" x 1-3/8"

2шт.

6

T38333

CYLINDER

- reset (YR. - 69-)

5шт.

221-166

NIPPLE - pipe, 3" Nipple, 3/8" NPT x 3"

5шт.

7

T39725

PIN - ram, 2-1/2" x 1" (Replaces T38167) (YR. - 69-)

5шт.

132-149

X

PIN - cotter, 1/4" x 1-3/8"

5шт.

8

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-)

5шт.

9

T38166

BOLT

- pivot, 7/8" N.C. hex drilled (YR. - 69-)

5шт.

25-1214

NUT - 7/8" N.C. hex slotted 7/8"-9, G5

5шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

5шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga.

5шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

5шт.

10

T38320

PLATE - beam, R.H. (YR. - 69-)

5шт.

113-413

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex w/1" thread

5шт.

92-8

LOCK WASHER,1/2"

5шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

5шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

5шт.

11

T24256

STANDARD (YR. - 69-)

5шт.

12

T38317

PLATE - beam, L.H. (YR. - 69-)

5шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

5шт.

13

T38187

ANCHOR - cylinder (YR. - 69-)

4шт.

14

T38292

BEAM - frame (YR. - 69-)

4шт.

15

113-757

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

w/1" thread (YR. - 69-) Hex, 3/4"-10 x 3 1/4", G8

5шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

25-1012

NUT,3/4"-10, G5

5шт.
