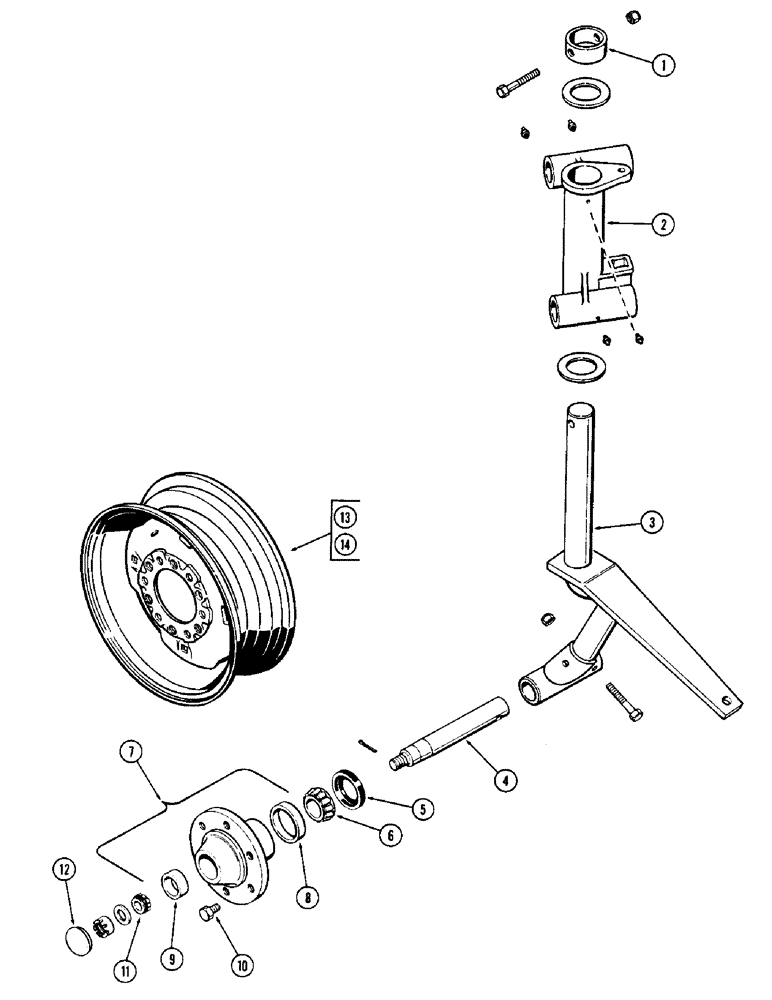

Запчасти Case IH 3300-SERIES (17A) - FURROW AXLE AND WHEEL, TRAIL HITCH

1

T36833

COLLAR - axle (YR. - 71-)

1шт.

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex

1шт.

2

T2126

HOUSING - axle (YR. - 71-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

4шт.

3

T51316

AXLE - furrow wheel (YR. - 71-)

1шт.

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

- 3-1/2" x 2-5/16" x 10 ga.

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex

1шт.

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex

1шт.

4

T39832

SPINDLE (YR. - 71-)

1шт.

195-49

WASHER

- 1-3/4" x 15/16" x 10 ga.

1шт.

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. jex., slotted

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

5

T30028

SEAL

- frease (YR. - 71-)

1шт.

6

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing, inner (YR. - 71-)

1шт.

7

T30011

HUB

- with cups (YR. - 71-)

1шт.

8

40421

BEARING CUP

CUP - bearing, inner (YR. - 71-)

1шт.

9

A29977

BEARING CUP

CUP - bearing, outer (YR. - 71-)

1шт.

10

A30064

BOLT

- wheel (YR. - 71-)

6шт.

11

A29976

ROLLER BEARING

CONE - bearing, outer (YR. - 71-)

1шт.

12

T30029

HUB CAP

CAP - hub (YR. - 71-)

1шт.

13

T25842

RIM

WHEEL - 14" (YR. - 71-)

1шт.

14

V13989

GEAR

WHEEL - 15" (YR. - 71-)

1шт.
