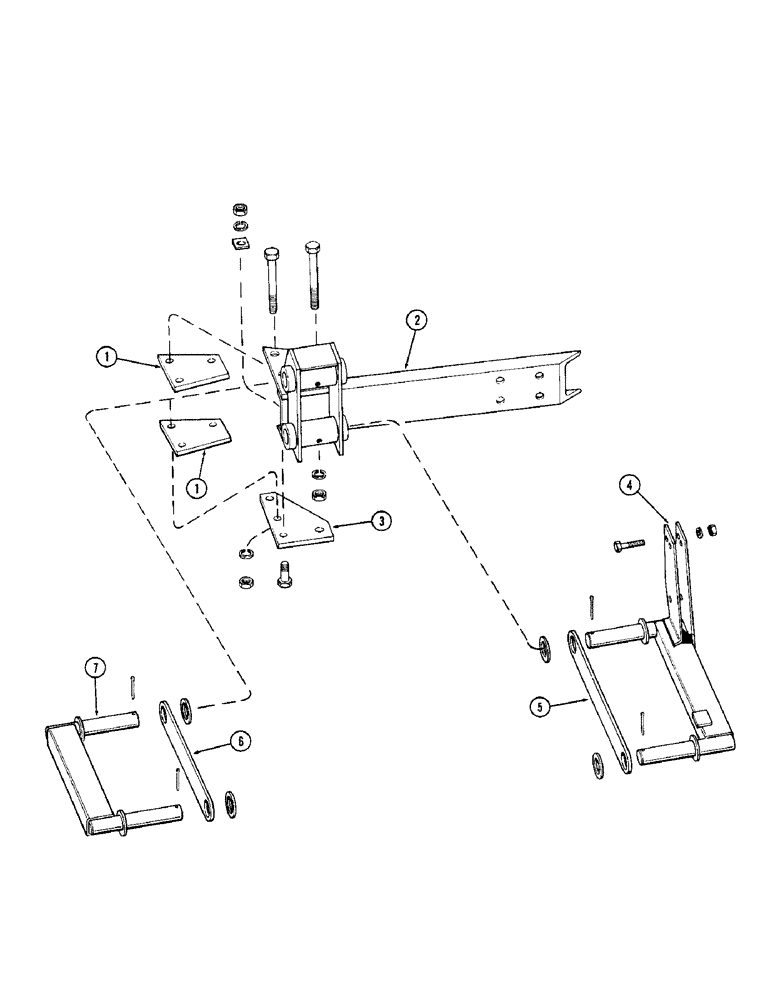

Запчасти Case IH 3300-SERIES (15A) - FURROW WHEEL LINKAGE, TRAIL HITCH

1

T38261

PLATE - spacing (5 Btm.) (YR. - 71-)

2шт.

2

T51328

BRACKET - front wheel (YR. - 71-)

1шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

195-903

WASHER

- slope, 1-1/2" x 1-1/2" x 11/16"

3шт.

15-10108

BOLT - 5/8" x 6-3/4" N.C. hex

2шт.

15-10112

BOLT (MACHINE)

BOLT - 5/8" x 7" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

25-1010

NUT,5/8"-11, G5

10шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

3

T38224

PLATE - bottom brace (YR. - 71-)

1шт.

4

T51374

ARM

- pivot, lower (YR. - 71-)

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x 12 ga.

2шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

2шт.

5

T51315

STRAP - lower arm (YR. - 71-)

1шт.

6

T51314

STRAP

- upper arm (YR. - 71-)

1шт.

7

T51373

ARM

- pivot, upper (YR. - 71-)

1шт.

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x 12 ga.

2шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

2шт.
