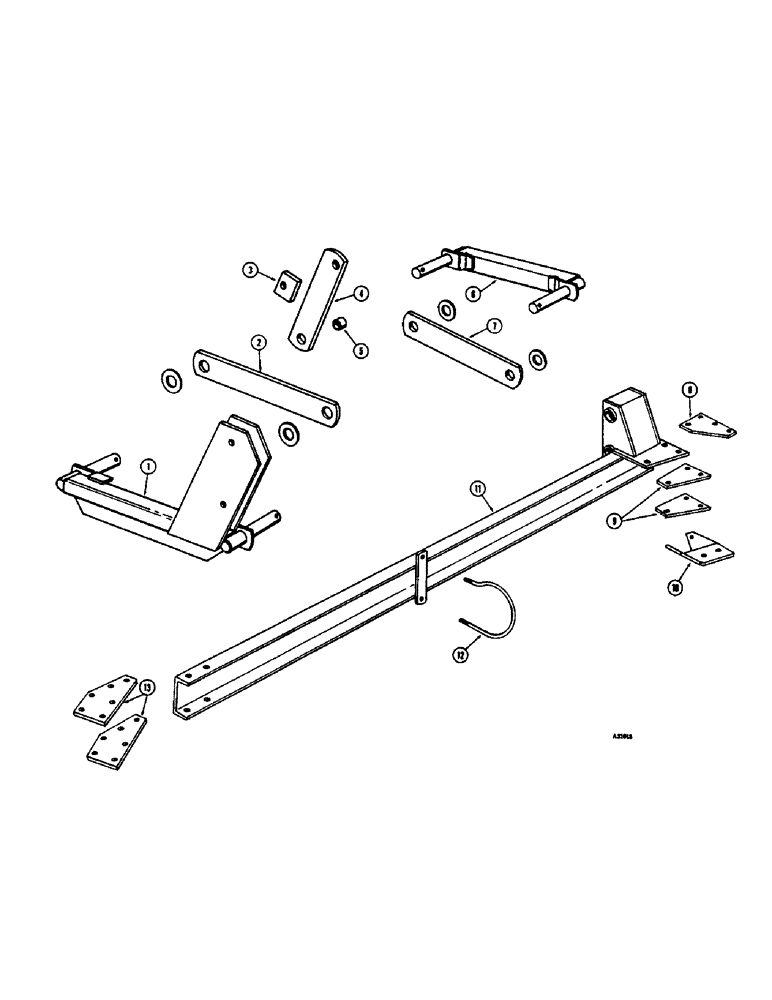

Запчасти Case IH 3300-SERIES (14) - FRONT WHEEL LINKAGE, ON LAND HITCH, 5 BOTTOM, 5 TO 6 BOTTOM, 6, 7 AND 8 BOTTOM

1

T36804

ARM

- pivot, bottom (YR. - 69-)

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

2шт.

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x 12 ga.

2шт.

2

T37481

STRAP - lower (YR. - 69-)

1шт.

3

T36704

BLOCK - anchor (YR. - 69-)

1шт.

4

T36751

ARM - ram anchor (YR. - 69-)

1шт.

5

T36752

BUSHING - ram anchor arm (YR. - 69-)

1шт.

6

T36801

ARM

- pivot, top (YR. - 69-)

1шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

2шт.

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x 12 ga.

2шт.

7

T36853

STRAP

- upper (YR. - 69-)

1шт.

8

T38224

PLATE - bottom brace (YR. - 69-)

1шт.

9

T38261

SPACER (YR. - 69-) (5 Btm., 5 to 6 Btm.)

2шт.

10

T38245

ANCHOR

- ram (YR. - 69-)

1шт.

10

T39324

ANCHOR

- ram (Replaces T38245) (YR. - 70-)

1шт.

13-10112

SCREW,Hex, 5/8" - 11 x 7", Gr 5

BOLT, MACHINE, Hex, 5/8"-11 x 7", G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

11

T38219

BRACKET - front wheel (YR. - 69-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

3шт.

195-903

WASHER

- slope, 1-1/2" x 1-1/2" x 11/16"

3шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

25-1010

NUT,5/8"-11, G5

5шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 45 degrees

2шт.

12

T38865

U-BOLT - accumulator (YR. - 69-)

1шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

13

T38231

PLATE - brace (YR. - 69-)

2шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex

6шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25-1010

NUT,5/8"-11, G5

6шт.
