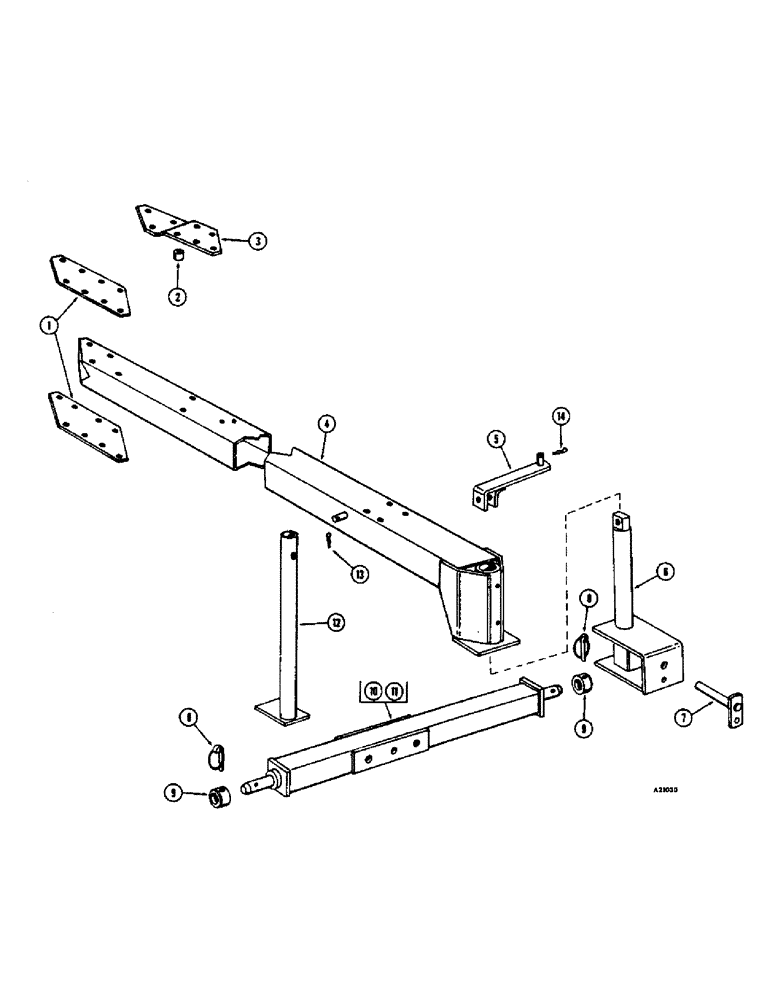

Запчасти Case IH 3300-SERIES (12) - HITCH TONGUE AND DRAWBAR, ON LAND HITCH

1

T38143

PLATE - tongue to beam, lower (5 Btm. or 5 Btm. to 6 Btm.) (YR. - 69-)

1шт.

1

T38143

PLATE - tongue to beam (6, 7 or 8 Btm.) (YR. - 69-)

2шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

8шт.

2

CT2363S

SPACER - upper plate (5 Btm. or 5 Btm. to 6 Btm.) (YR. - 69-)

1шт.

3

T38260

PLATE - tongue to beam, upper (5 Btm. or 5 Btm. to 6 Btm.) (YR. - 69-)

1шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex

3шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex

5шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

8шт.

4

T39328

TONGUE (YR. - 69)

1шт.

13-10100

BOLT

- 5/8" x 6-1/4" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

5

T39325

ARM - steering (YR. - 69-)

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

6

T36828

PIVOT - hitch (YR. - 69-)

1шт.

195-2164

WASHER - 3-1/2" x 2-1/2" x 11 ga.

1шт.

7

T36735

PIN - pivot (YR. - 69-)

1шт.

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2" x 3/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

8

A33509

PIN,11.18mm OD

- keeper (YR. - 69-)

2шт.

9

T32862

COLLAR

(YR. - 69-)

2шт.

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex

2шт.

131-508

NUT,3/8"-16

NUT - lock, 3/8" N.C.

2шт.

10

T36818

DRAWBAR - Category II (5, 6, 7 & 8 Btm.) (YR. - 69-)

1шт.

11

T38313

DRAWBAR - Category III (6, 7 & 8 Btm.) (YR. - 1969-)

1шт.

11

T50187

DRAWBAR

- Category III (6, 7 & 8 Btm.) (YR. - 69-)

1шт.

12

T38190

STAND - hold-up (YR. - 69-)

1шт.

13

T25682

SPLIT PIN

COTTER - hairpin (YR. - 69-)

1шт.

14

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 69-)

1шт.
