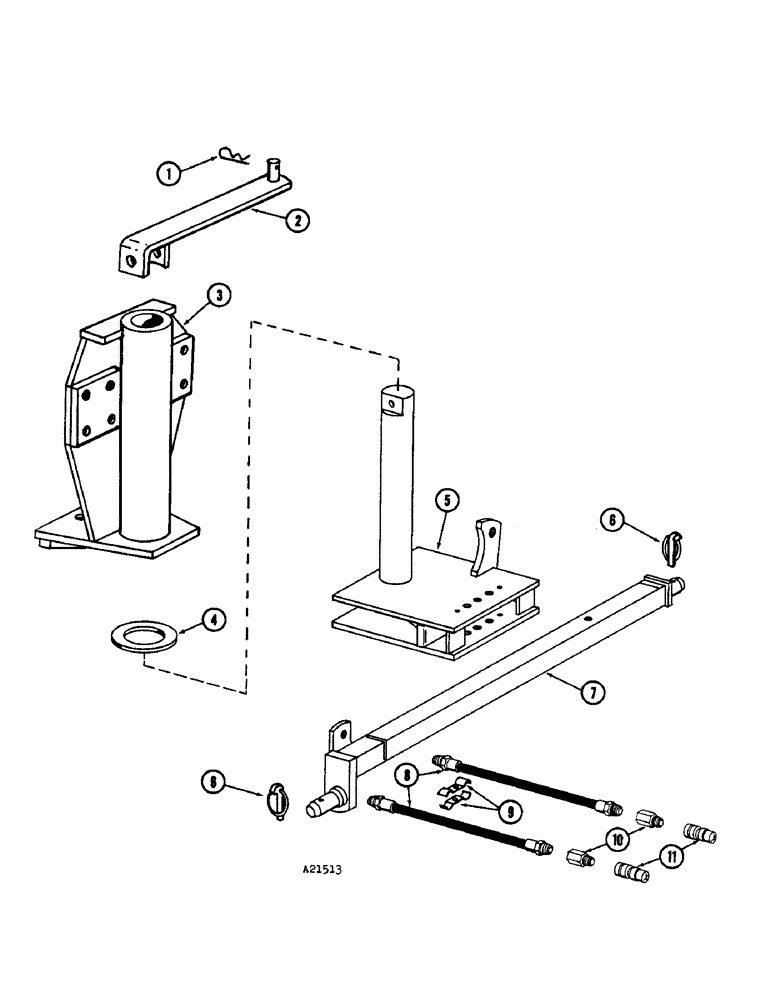

Запчасти Case IH 3300-SERIES (10) - HILLSIDE HITCH, IN FURROW

1

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (YR. - 70-)

1шт.

2

T38294

ARM - steering (YR. - 70-)

1шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" NC hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

3

T39960

TRAILER HITCH

HITCH (YR. - 70-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

4

H5531S

WASHER (YR. - 70-)

1шт.

5

T51110

PIVOT - hitch (YR. - 70-)

1шт.

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

6

A33509

PIN,11.18mm OD

- keeper (YR. - 70-)

2шт.

7

T51103

DRAWBAR (YR. - 70-)

1шт.

8

T30575

HOSE - 36" (YR. - 70-)

2шт.

9

A27440

CLAMP

- hose (YR. - 70-)

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

(YR. - 70-)

2шт.

11

A28541

COUPLING, BREAK AWAY

PLUG - breakaway (YR. - 70-)

2шт.
