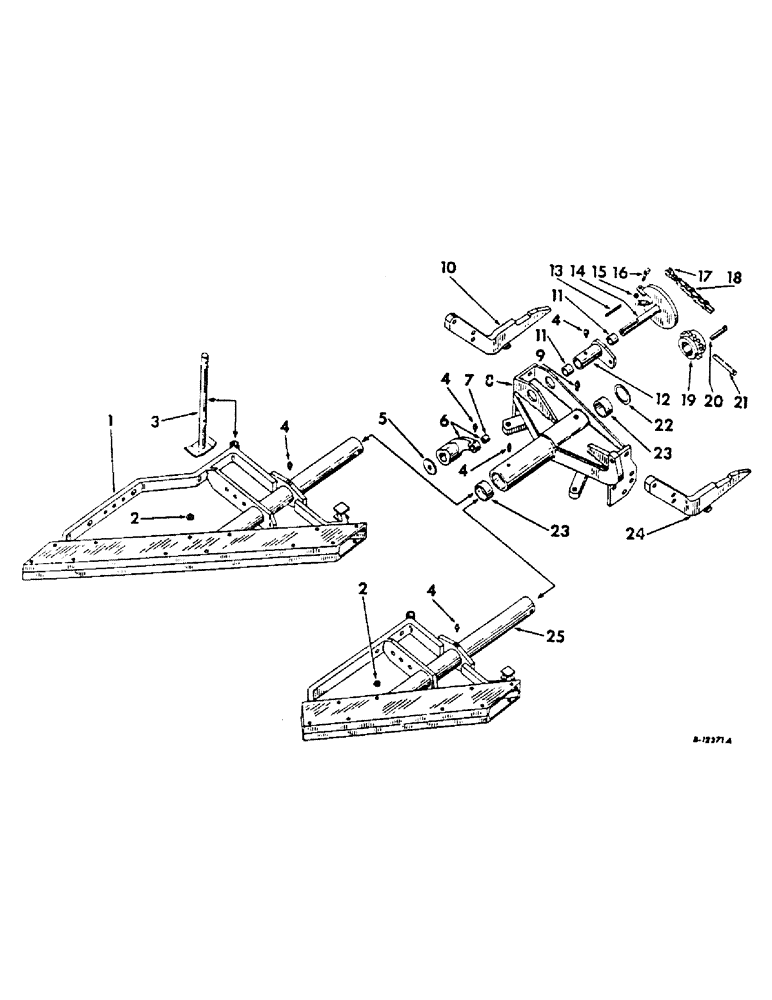

Запчасти Case IH 314 (Q-02) - MAIN FRAME

1

462671R91

FRAME, 14 in. main, 314

1шт.

1

462678R91

FRAME, 16 in. main, 314

1шт.

20826R1

SCREW, 5/8-18 x 6-1/4 hex-hd cap

12шт.

*

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

*

225861

NUT,5/8"-18, G8

5/8-18 C-Z hex, type 4

12шт.

2

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit

18шт.

3

463116R21

STAND, support

1шт.

*

Q3548

PIN,1/2" x 2 1/16"

1/2 x 2-1/16 std-hd

1шт.

*

517843R1

COTTER PIN

PIN, quick-attachable cot

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub

4шт.

5

463075R1

WASHER

ARM ASSY, cylinder pivot

1шт.

6

462646R21

drive shaft

1шт.

7

618832R1

BUSHING, cyl, 1960

1шт.

7

473608R1

BUSHING

cyl, 1960 & up

1шт.

8

462632R91

FRAME, roll-over

1шт.

*

462645R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Full Thd

3/4 x 10 x 3-1/2 hex-hd

2шт.

*

218443

NUT

3/4 hex, jam

2шт.

9

126131

FITTING

1/4 tapered str lub

1шт.

10

463826R11

BEAM, coupling long LH

1шт.

10

462688R91

BEAM, coupling short LH

1шт.

*

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, 3/4 unf x 2-3/4 hex-hd cap

1шт.

*

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

SCREW, 3/4 unf x 3-1/2 hex-hd cap

1шт.

*

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

*

218197

NUT,3/4"-16, G5

3/4 unf hex

2шт.

11

462643R1

BUSHING

chain drive wheel

1шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 hex-hd

1шт.

*

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

462641R11

BEARING ASSY, drive

1шт.

13

462647R1

KEY, cyl pivot, 1960

1шт.

13

463604R1

KEY, cyl pivot, 1960 & up

1шт.

14

462652R91

WHEEL

chain drive, 1960, order 463606R91 and 463604R1

1шт.

14

463606R91

WHEEL

chain drive, 1960 & up

1шт.

*

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

*

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

462868R1

WASHER

6шт.

16

462651R1

BOLT

EYEBOLT, chain tightener

2шт.

*

114507

JAM NUT,Jam, 5/8"-11, G5

4шт.

17

462763R2

LINK

W/PIN AND COT, slip fit chain, extra links

1шт.

17

462650R2

LINK

W/PIN AND COT, offset

1шт.

17

472900R1

LINK

roller chain

8шт.

18

462649R92

CHAIN (AG)

CHAIN, drive, do not use stock chain

1шт.

19

462629R1

SPROCKET

1шт.

20

462630R1

KEY, gib

1шт.

21

462631R1

PIN, sprocket

1шт.

13139R1

PIN, 1/4 x 1-3/4 self-opening cot

2шт.

22

462648R1

WASHER, roll-over frame wear

1шт.

23

462642R1

BUSHING, main frame shaft

2шт.

24

463827R11

BEAM, coupling long RH

1шт.

24

462689R91

BEAM, coupling short RH

1шт.

*

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, 3/4 unf x 2-3/4 hex-hd cap

1шт.

*

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

SCREW, 3/4 unf x 3-1/2 hex-hd cap

1шт.

*

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

*

218197

NUT,3/4"-16, G5

3/4 unf hex

2шт.

25

462656R91

FRAME, 14 in. main, 214

1шт.

25

462665R91

FRAME, 16 in. main, 214

1шт.

*

5/8 C-Z nut

8шт.

*

5/8 x 6 C-Z hex-hd cap screw

8шт.

*

5/8 C-Z lock washer

8шт.
