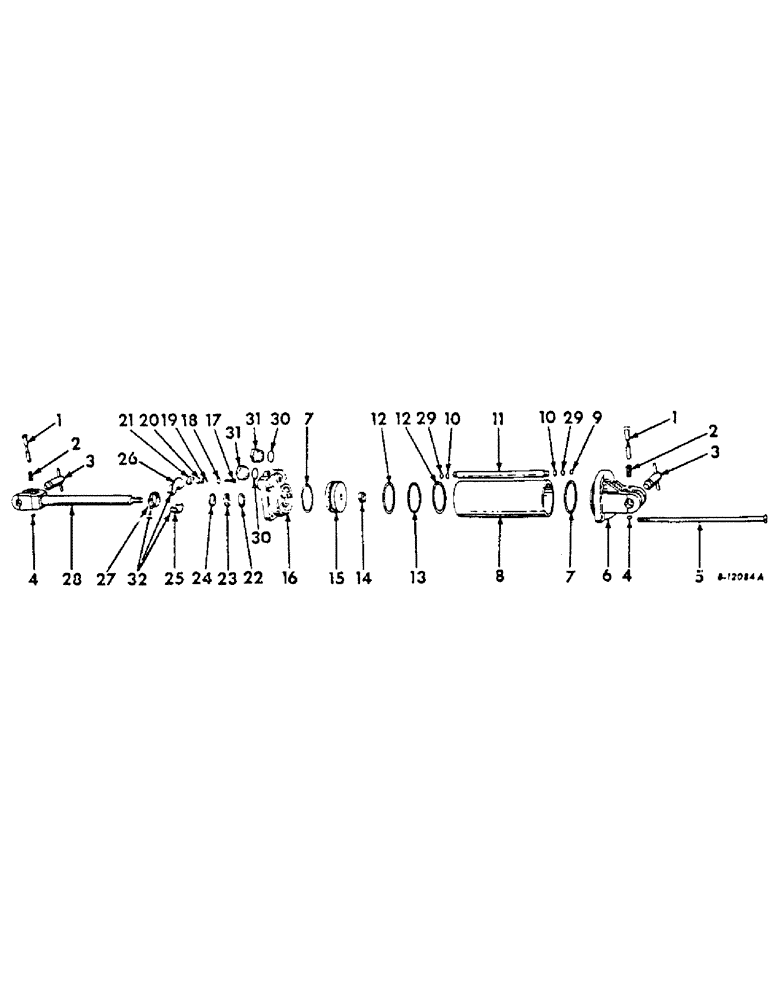

Запчасти Case IH 314 (Q-19) - HYDRAULIC CYLINDER, FOR TRACTORS WITH 7/8-14 STR THREAD HYDRAULIC OUTLETS

371292R93

CYLINDER

ASSY, hydraulic 3-1/2 x 8, order 403842R91

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

4шт.

6

371298R3

HEAD

hyd cylinder, rear end

1шт.

7

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

10

(Not used this application)

1шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, piston head back up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

14

385020R1

NUT

3/4-16 hex, lock

1шт.

15

361003R1

HEAD

piston

1шт.

16

371397R11

HEAD ASSY, hydraulic cylinder front

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

19

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16

1шт.

20

361007R11

RETAINER

ASSY, limit stop valve with o-ring, only servicable item is o-ring retainer, 361008r1

1шт.

361008R1

RETAINER, o-ring

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, 1-1/8 x 1-9/16 x 7/32

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

28

361005R13

ROD

ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug

2шт.

31

9410360

PLUG

7/8-14 cd or zn-pltd str

2шт.

32

375426R91

COLLAR

ASSY, stroke limit

1шт.

392503R1

PIN

SCREW, thumb

1шт.

363138R93

SEAL KIT

PACKAGE, o-ring service, consists of, (1) retainer 354049R1, (1) ring 350429R1, (1) ring 378827R1, (2) ring 377952R1, (1) ring 354047R1, (2) ring 354836R1, (1) ring 21590R1, (1) seal 354048R1 (2) washer 375936R1, (2) washer 371218R1

1шт.
