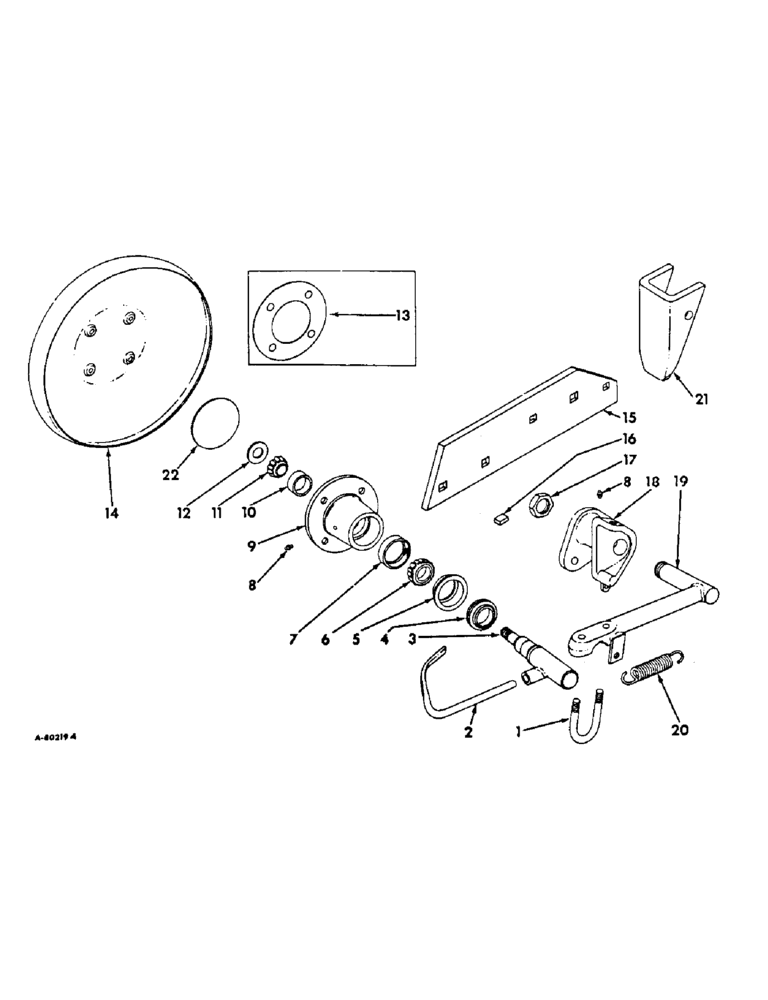

Запчасти Case IH 314 (Q-12) - REAR FURROW STEEL WHEEL UNIT SPRING LOADED, 64 AND SINCE
№
Артикул
Название
Примечание
Количество
1
478221R1
BOLT,Plow, 1/2" - 13 x 3.0"
U-BOLT, axle support
2шт.
.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
.
102637
NUT,1/2"-13, G5
4шт.
2
478223R1
KNIFE
BLADE, scraper RH
1шт.
2
478222R1
KNIFE
BLADE, scraper LH
1шт.
3
478216R91
SPINDLE
ASSY
2шт.
.
69442D
NUT
3/4-16 slt hex, jam
2шт.
.
1403397
PIN, 5/32 x 1-1/4 cot
2шт.
.
10448
SCREW, 1/2-13 x 3/4 sq-hd cup-pt set
2шт.
4
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
oil
2шт.
5
472222R1
SLEEVE
oil seal
2шт.
6
651818R1
BEARING, inner cone
2шт.
7
651817R1GV
BEARING CUP
Value, Bearing Cup
2шт.
8
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28NF str lub, in wheel hub and pivot bracket
4шт.
9
478218R2
HUB
furrow wheel
2шт.
.
15564R1
BOLT
7/16-14 x 1-1/4 no. 3 plow bolt
8шт.
.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
8шт.
.
NLS
NO LONGER SERVICED
7/16-14 hex
8шт.
10
651814R1
BEARING CUP
BEARING, outer cup
2шт.
11
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING ASSY, outer cone
2шт.
11
651815R91GV
BEARING CONE
Value, Cone Bearing
2шт.
12
615168R1
WASHER
25/32 x 1-1/2 x 11 ga
2шт.
13
478231R1
GASKET, wheel hub, 1964 & up
1шт.
14
478725R1
WHEEL
rear furrow
2шт.
15
478227R1
LANDSIDE
ASSY, super chief RH bottom
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
BOLT, 7/16-14 x 2 no. 3 plow
2шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8-11 x 2-1/4 no. 3 plow
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
BOLT, 5/8-11 x 3 no. 3 plow
1шт.
.
18526R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 ESNA stop
2шт.
.
102639
NUT,5/8"-11, G5
3шт.
.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
15
478226R1
LANDSIDE
ASSY, super chief bottom
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
BOLT, 7/16-14 x 2 no. 3 plow
2шт.
.
145631R1
BOLT, 5/8-11 x 2-1/4 no. 3 plow
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
BOLT, 5/8-11 x 3 no. 3 plow
1шт.
.
18526R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 ESNA stop
2шт.
.
102639
NUT,5/8"-11, G5
3шт.
.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
15
478228R11
LANDSIDE ASSY, plow chief bottom special RH
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
7/16 x 2 NO. 3 PLOW BOLT
2шт.
.
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
18526R1
LOCK NUT,7/16"-14, GB
7/16 ESNA STOP NUT
2шт.
.
5/8 NUT
3шт.
.
5/8 LOCK WASHER
2шт.
15
478230R11
LANDSIDE ASSY, gau, bottom special RH
1шт.
.
478233R2
BOLT, 3/8-16 x 1-3/4 no. 3 plow
1шт.
.
478234R2
BOLT, 3/8-16 x 2 no. 3 plow
1шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8-11 x 2-1/4 no. 3 plow
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
BOLT, 5/8-11 x 3 no. 3 plow
1шт.
.
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, , Esna 3/8"-16, GB
2шт.
.
102639
NUT,5/8"-11, G5
3шт.
.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
15
478229R11
LANDSIDE ASSY, gau, bottom special LH
1шт.
.
478233R2
BOLT, 3/8-16 x 1-3/4 no. 3 plow
1шт.
.
478234R2
BOLT, 3/8-16 x 2 no. 3 plow
1шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8-11 x 2-1/4 no. 3 plow
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
BOLT, 5/8-11 x 3 no. 3 plow
1шт.
.
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, , Esna 3/8"-16, GB
2шт.
.
102639
NUT,5/8"-11, G5
3шт.
.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
16
478220R1
BLOCK, rear axle pivot
2шт.
17
358876R1
LOCK NUT
drive shaft lock
1шт.
18
478214R2
PIVOT
rear axle RH
1шт.
18
478213R2
PIVOT
rear axle LH
1шт.
.
114507
JAM NUT,Jam, 5/8"-11, G5
2шт.
.
478215R1
SCREW, 5/8-11 x 2-1/4 hex-hd cap
2шт.
19
478209R91
AXLE
ASSY, spring loaded furrow wheel RH
1шт.
19
478208R91
AXLE
ASSY, spring loaded furrow wheel LH
1шт.
20
478219R1
SPRING
rear furrow wheel
2шт.
21
542495R1
SUPPORT
STOP, beam, replaces 478207C2
1шт.
.
271733
BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5
SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap
1шт.
.
20511R1
WASHER, 5/8 zn-pltd med lock
1шт.
22
172602
SUPPORT
wheel hub expansion, 1964 & up
2шт.
Выбрано товаров: 76
