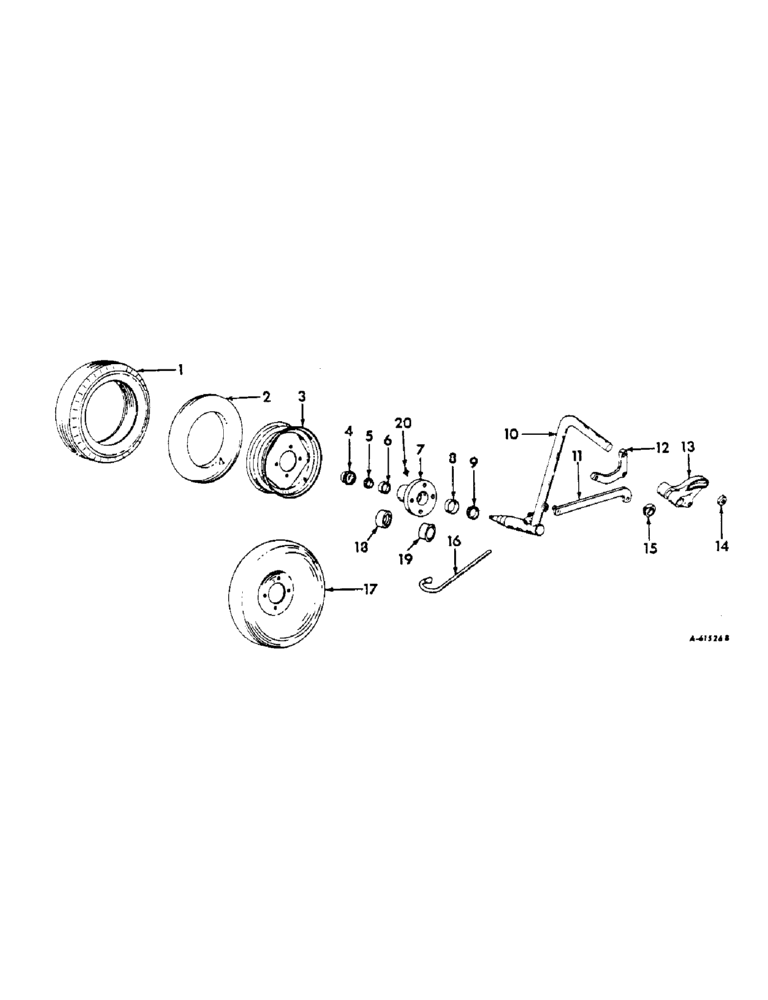

Запчасти Case IH 314 (Q-11) - REAR FURROW WHEEL, TRIP BEAM

1

TIRE, 4 ply ribbed implement pneumatic, 4.00 x 12

1шт.

2

TUBE, pneumatic, 4.00 x 12

1шт.

3

525286R92

WHEEL ASSY

2шт.

4

651194R1

CAP

wheel

2шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

6

651814R1

BEARING CUP

BEARING, outer cup

2шт.

7

461892R31

HUB W/BOLTS, cups and nuts, Serial Range: 1960-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2-20UNF x 1-5/8 BOLT, SPECIAL

4шт.

.

453770R1

WHEEL NUT

1/2-20UNF NUT SPECIAL

4шт.

.

1/2 LOCK WASHER

4шт.

7

472220R11

HUB

W/SET SCREW, 1963 & up

2шт.

.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

8шт.

.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

8

651817R1

BEARING CUP

BEARING, inner cup

2шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

9

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, inner cone, 1960 to 1962

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone, 1963 & up

1шт.

10

462865R91

AXLE ASSY, rear, without set collar, Serial Range: 1960-1961

1шт.

10

467476R91

AXLE ASSY, rear, pneumatic tire, without set collar, Serial Range: 1961-1962

1шт.

10

472626R91

AXLE ASSY, rear, pneumatic tire, without set collar, 1963 & up

1шт.

.

69442D

NUT

3/4-16 slt-hex

1шт.

.

103386D

PIN, 1/4 x 1-1/4 cot

1шт.

.

472634R1

WASHER

special

1шт.

10

462867R91

AXLE ASSY, rear, with set collar, LH, Serial Range: 1960-1961

1шт.

10

467478R91

AXLE ASSY, rear, with set collar, LH, Serial Range: 1961-1962

1шт.

10

472619R91

AXLE ASSY, rear, with set collar, LH, 1963 & up

1шт.

10

472710R91

AXLE ASSY, rear, steel tire, with set collar, 1963 & up

1шт.

11

524280R91

LINK ASSY, furrow wheel LH

1шт.

11

522994R21

LINK ASSY, wheel RH

1шт.

.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

12

524277R1

ARM, lower link attaching LH

1шт.

12

523017R2

ARM, lower link attaching

1шт.

.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

BOLT, 5/8 x 3-1/2 hex-hd mach

1шт.

.

12258R1

WASHER

1-1/4 x 21/32 x 11 ga

1шт.

.

102639

NUT,5/8"-11, G5

1шт.

13

524506TR1

BRACKET, axle LH

1шт.

13

522992R2

BRACKET, axle RH

1шт.

.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 4 hex-hd cap

1шт.

.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd cap

1шт.

.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

.

102639

NUT,5/8"-11, G5

2шт.

14

523011R1

WASHER

axle bracket serrated

2шт.

15

5641X

COLLAR W/SER SCREW

2шт.

.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.

16

523009R1

SCRAPER

1шт.

17

459361R1

WHEEL

1шт.

18

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

2шт.

19

472633R1

BUSHING

SLEEVE, oil seal wear, 1963 & up

2шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.
