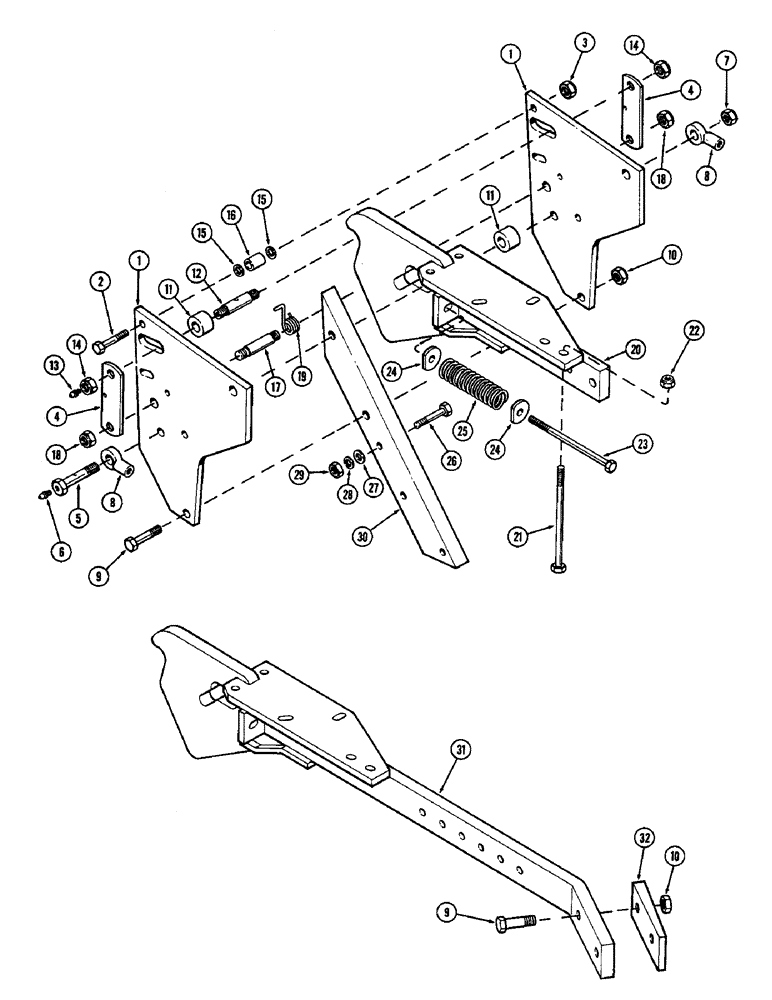

Запчасти Case IH 308 (14) - CUSHION TRIP BEAM

1

T54178

PLATE - gusset

2шт.

2

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

1шт.

3

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

1шт.

4

T54173

STRAP

- roller

2шт.

5

T54181

BOLT

- pivot 7/8 x 4-1/4" NF

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

7

131-465

LOCK NUT,7/8"-14, G8

NUT - lock 7/8" NF hex

1шт.

8

T54177

END

- bolt

2шт.

9

114-710

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- 3/4 x 3-1/4" NF hex (Grade 8)

4шт.

10

131-690

LOCK NUT,3/4"-16, GB

NUT - 3/4" NF hex

4шт.

11

T54179

ROLLER

- trip

2шт.

12

T54174

PIN

- shoulder upper

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

14

131-73

NUT,3/4"-16

NUT - lock 3/4" NF hex

2шт.

15

T54183

WASHER - shim

2шт.

16

T54182

BUSHING

1шт.

17

T54175

PIN

- shoulder lower

1шт.

18

131-73

NUT,3/4"-16

NUT - lock 3/4" NF hex

2шт.

19

T54180

SPRING

- torsion

1шт.

20

T55614

BEAM

- first

1шт.

21

114-602

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

- 5/8 x 7-1/2" NF hex (Grade 5)

4шт.

22

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

4шт.

23

113-2258

BOLT,Hex, 1/2" - 13 x 9-3/4", Gr 5

- 1/2 x 9-3/4" NC hex (Grade 5)

2шт.

24

T54186

WASHER

- spring

4шт.

25

T54204

SPRING

2шт.

26

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

2шт.

27

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

29

129-127

NUT,5/8"-18, G5

2шт.

30

T54184

BEAM

- foot

1шт.

31

T55629

BEAM - second and the remainder of

1шт.

32

T55630

WEDGE - beam

1шт.
