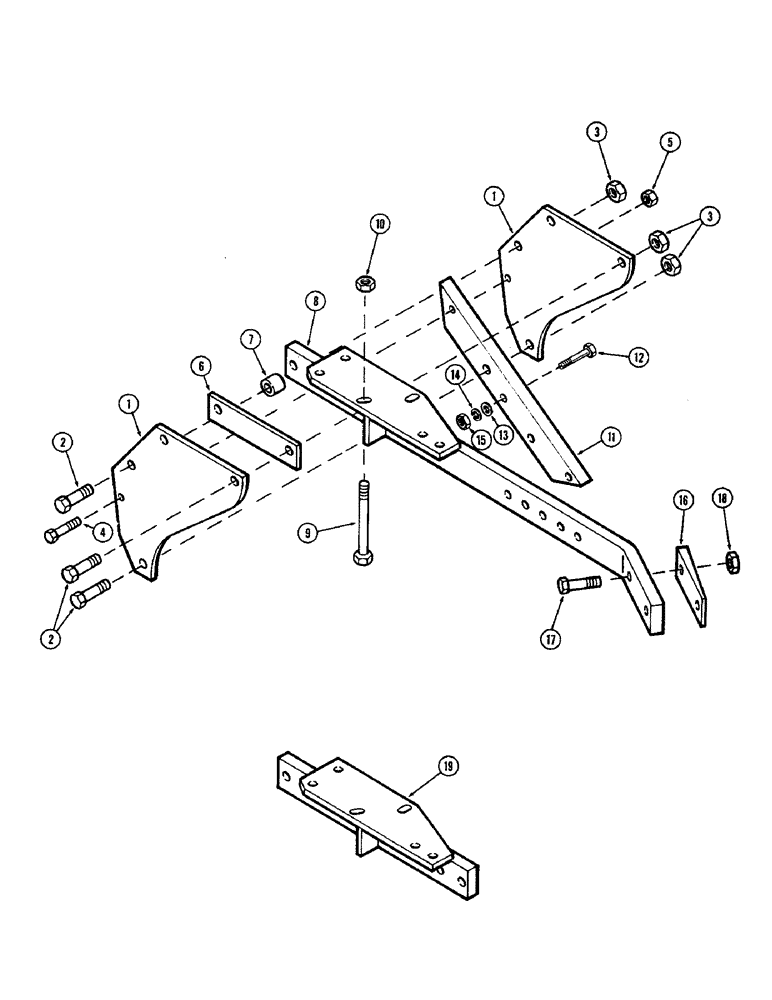

Запчасти Case IH 308 (12) - SHEAR BOLT BEAM

1

T54277

PLATE - gusset

2шт.

2

114-727

BOLT - 3/4 x 3" NF hex (Grade 8)

4шт.

3

131-690

LOCK NUT,3/4"-16, GB

NUT - lock 3/4" NF hex

4шт.

4

114-305

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 2

- 7/16 x 2-3/4" NF (Shear bolt) (Grade 5)

1шт.

5

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

6

T54278

SPACER - gusset

1шт.

7

T54146

SPACER

1шт.

8

T55653

BEAM - second and the remainder of

1шт.

9

114-602

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

- 5/8 x 7-1/2" NF hex (Grade 5)

4шт.

10

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

4шт.

11

T54276

BEAM - foot

1шт.

12

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

2шт.

13

195-108

WASHER,5/8"

- 1-3/4 xx 11/16" x 10 guage

2шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

129-127

NUT,5/8"-18, G5

2шт.

16

T55630

WEDGE - beam

1шт.

17

114-710

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 8

- 3/4 x 3-1/4" NF hex (Grade 8)

2шт.

18

131-690

LOCK NUT,3/4"-16, GB

NUT - lock 3/4" NF hex

2шт.

19

T55652

BEAM - first

1шт.
