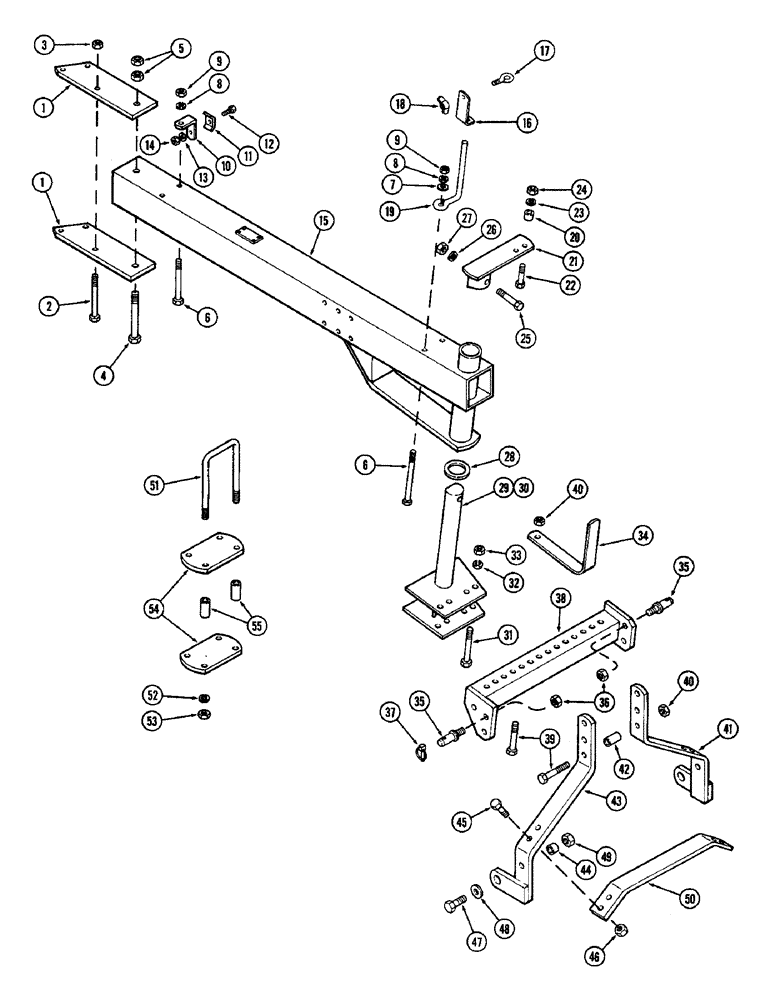

Запчасти Case IH 308 (02) - HITCH PIVOT AND A FRAME

1

T55650

ANCHOR - drawbar

2шт.

2

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8 x 8" NC hex (Grade 5)

3шт.

3

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

3шт.

4

113-904

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

- 1 x 8-1/2" NC hex (Grade 5)

1шт.

5

129-150

NUT,Jam, 1"-8, G5

- jam, 1" NC hex

2шт.

6

113-646

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- 5/8 x 7-1/2" NC hex (Grade 5)

3шт.

7

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

1шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

129-107

NUT,5/8"-11, G5

3шт.

10

T54124

HANGER - pipe

2шт.

11

T54125

CLAMP - pipe hanger

2шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

T55657

HITCH PIVOT

1шт.

16

T54168

CLAMP - hose

1шт.

17

T54171

EYEBOLT

1шт.

18

129-410

WING NUT,3/8"-16

NUT - wing 3/8" NC

1шт.

19

T54170

ROD - support

1шт.

20

T54126

BUSHING - steering rod

1шт.

21

T54290

ARM

- steering front

1шт.

22

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

129-107

NUT,5/8"-11, G5

1шт.

25

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

26

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

27

129-108

NUT,3/4"-10, G5

1шт.

28

T54159

WASHER

- wear

1шт.

29

T54158

POST

1шт.

30

T56524

POST

(T54158 can also be used)

1шт.

31

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

32

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

33

129-108

NUT,3/4"-10, G5

4шт.

34

T54342

STOP - strut

1шт.

35

T55048

PIN

- hitch category two

2шт.

36

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

2шт.

37

A33509

PIN,11.18mm OD

- klil

2шт.

38

T54220

HITCHBAR - category two

1шт.

39

114-723

BOLT,Hex, 3/4" - 16 x 5", Gr 5

- 3/4 x 5" NF hex (Grade 5)

2шт.

40

131-690

LOCK NUT,3/4"-16, GB

NUT - 3/4" NF hex

2шт.

41

T54340

STRUT - LH

1шт.

42

T54343

BUSHING - drawbar

1шт.

43

T54339

STRUT - RH

1шт.

44

T54344

BUSHING - hitch

2шт.

45

114-716

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NF hex (Grade 5)

4шт.

46

131-690

LOCK NUT,3/4"-16, GB

NUT - lock 3/4" NF hex

4шт.
