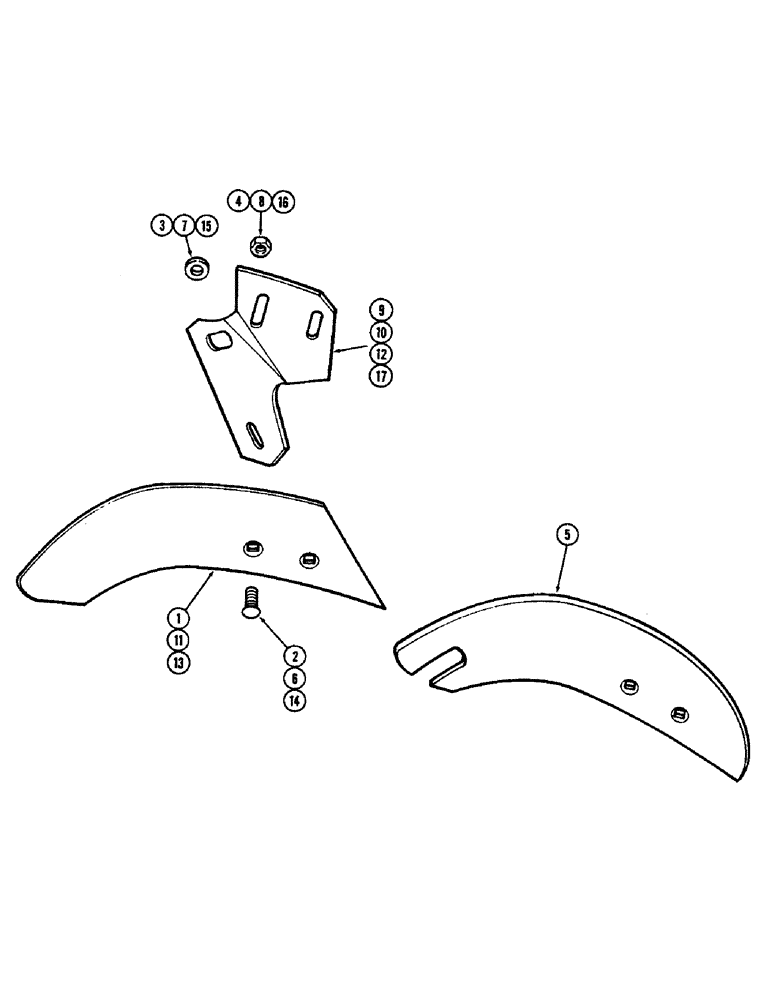

Запчасти Case IH 308 (50) - TRASHBOARDS, GENERAL PURPOSE BOTTOM

1

T54227

BOTTOM

TRASHBOARD - metal

1шт.

2

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5)

2шт.

3

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

T54457

BOARD

TRASHBOARD - plastic

1шт.

6

118-136

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow 3/8 x 1-1/2" NC (Grade 5)

2шт.

7

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

9

T54228

BRACKET

- trashboard

1шт.

10

T54456

BRACKET

BACKET - trashboard (For 18" general purpose bottom)

1шт.

2

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5), stubble bottom

2шт.

3

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge, stubble bottom

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Stubble bottom 3/8"-16, G5

2шт.

11

T54229

BOTTOM

TRASHBOARD - metal, stubble bottom

1шт.

12

T54230

BRACKET - trashboard, stubble bottom

1шт.

13

T55670

TRASHBOARD - metal, 16 inch high speed bottom

1шт.

14

118-134

X

BOLT - plow 3/8 x 1-1/4" NC (Grade 5), 16 inch high speed bottom

2шт.

15

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge, 16 inch high speed bottom

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 16 inch high speed bottom 3/8"-16, G5

2шт.

17

T55674

BRACKET - trashboard, 16 inch high speed bottom

1шт.
