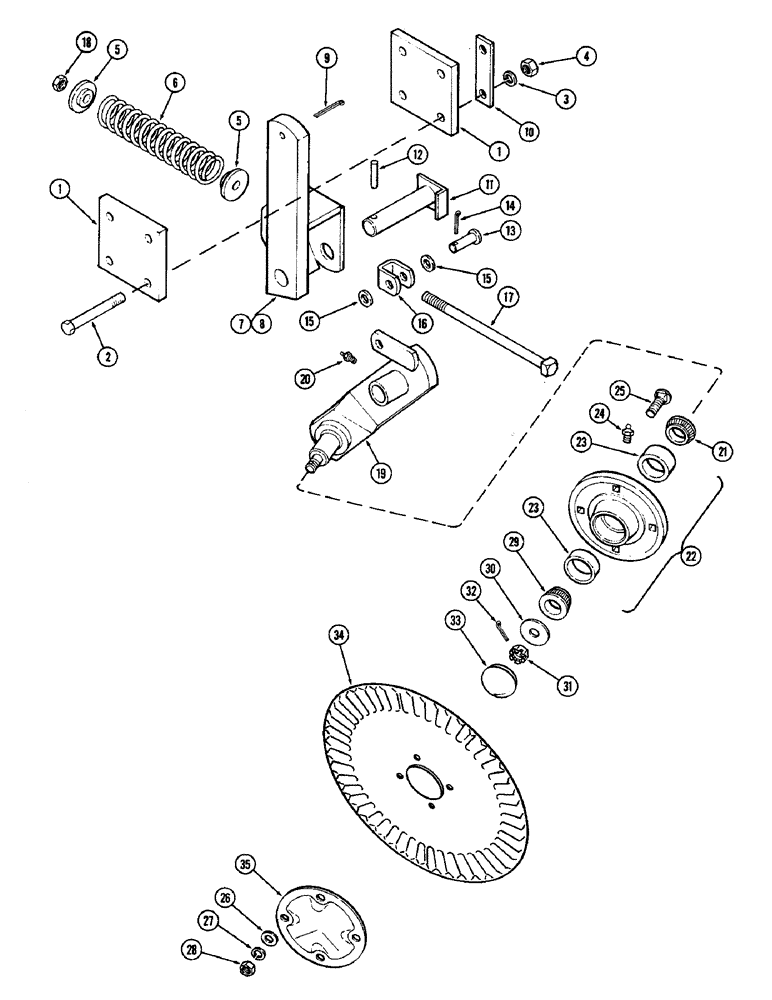

Запчасти Case IH 308 (48) - CONCAVE CUSHION COULTER, ANTI-FRICTION BEARING

1

T54212

PLATE - clamp

2шт.

2

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

129-107

NUT,5/8"-11, G5

4шт.

5

T54205

WASHER

- spring

2шт.

6

T54210

SPRING

1шт.

7

T54208

ARM

- guide

1шт.

8

T56053

ARM

- guide (T54208 can also be used)

1шт.

9

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

10

T54213

SPACER

2шт.

11

T54209

PIN

- pivot

1шт.

12

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

13

K2039

PIN

- 5/8 x 2"

1шт.

14

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

15

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

16

T54203

CLEVIS

1шт.

17

117-508

BOLT,Sq Hd, 5/8" - 11 x 12", Gr 5

- 5/8 x 12" NC hex (Grade 5)

1шт.

18

129-107

NUT,5/8"-11, G5

1шт.

19

T54207

ARM

- coulter

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21

T17079

CUP

CONE - bearing inner 1-1/4" ID (31.8MM)

1шт.

22

T54190

HUB

ASSY - with cups

1шт.

23

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing 2-15/16" OD (58.7MM)

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

25

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

4шт.

26

195-533

WASHER,1/2", SAE

- 1-1/16 x 17/32" x 14 gauge

4шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

29

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8MM)

1шт.

30

T54251

WASHER

- 1-3/4 x 11/16"

1шт.

31

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

32

312-335

PIN - cotter 1/8 x 1-1/4"

1шт.

33

T54197

CAP

- hub

1шт.

34

T54211

PLOW DISC

BLADE - disk 20" ripple

1шт.

35

T54194

CAP

- disk

1шт.
