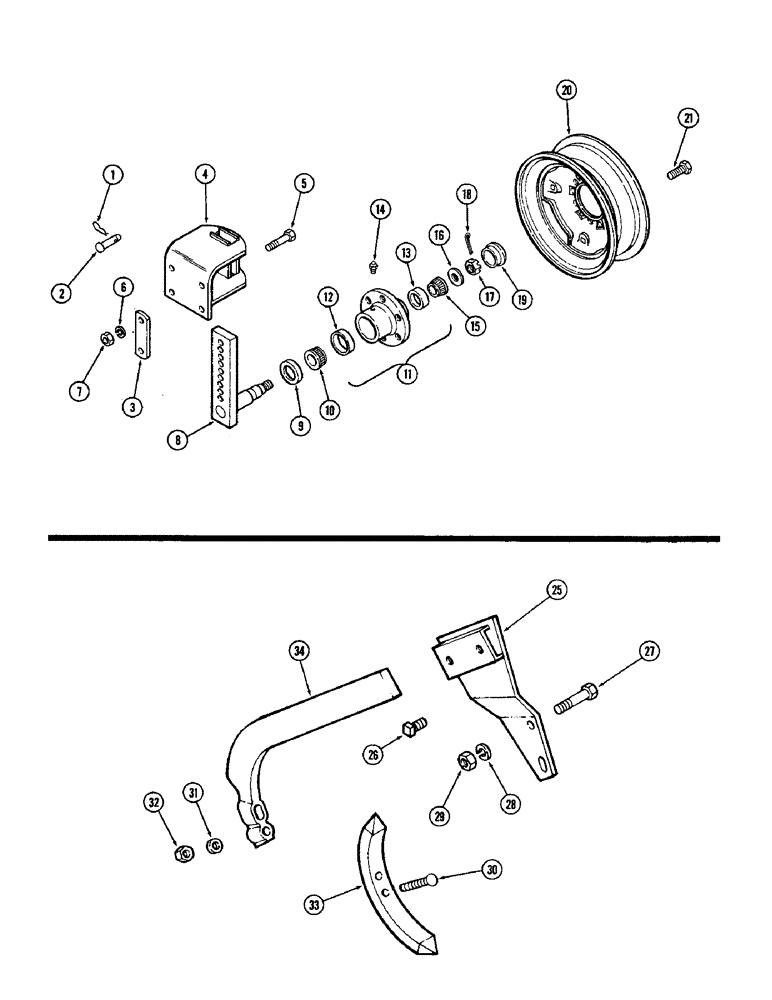

Запчасти Case IH 308 (40) - GAUGE WHEEL

1

B17308

CLIP

COTTER - hairpin

1шт.

2

T54337

PIN - drilled

1шт.

3

T54338

STRAP - support

2шт.

4

T54335

SUPPORT

1шт.

5

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

129-107

NUT,5/8"-11, G5

4шт.

8

T54661

SPINDLE

SLIDE AND SPINDLE

1шт.

9

T54429

OIL SEAL

SEAL - oil

1шт.

10

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing inner 1-1/4" ID (31.8MM)

1шт.

11

T54423

HUB ASSY - with cups

1шт.

12

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing inner 2-5/16" OD (58.7MM)

1шт.

13

B12410

BEARING, CUP,1.782" OD

CUP - bearing outer 1-25/32" OD 43.7MM)

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

15

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing outer 3/4" ID (19.05MM)

1шт.

16

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

1шт.

17

86632554

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" NF hex slotted

1шт.

18

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

19

F63222

DUST CAP,53.98mm OD x 34.92mm W

CAP - hub

1шт.

20

T53527

WHEEL

- 15 x 5"

1шт.

21

A30064

BOLT

- wheel

6шт.

25

T55737

BRACKET, subsoiler attachment

1шт.

26

85-1020

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

- 5/8 x 1-1/4", subsoiler attachment

2шт.

27

114-626

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

Subsoiler attachment Hex, 5/8"-18 x 3 1/2", G5

2шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Subsoiler attachment 5/8"

2шт.

29

129-127

NUT,5/8"-18, G5

Subsoiler attachment 5/8"-18, G5

2шт.

30

118-322

BOLT - plow 1/2 x 2-1/2" NC (Grade 5), subsoiler attachment

2шт.

31

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, subsoiler attachment

2шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

Subsoiler attachment 1/2"-13, G5

2шт.

33

T55736

TOOTH - chisel, subsoiler attachment

1шт.

34

T55735

SHANK - subsoiler, attachment

1шт.
