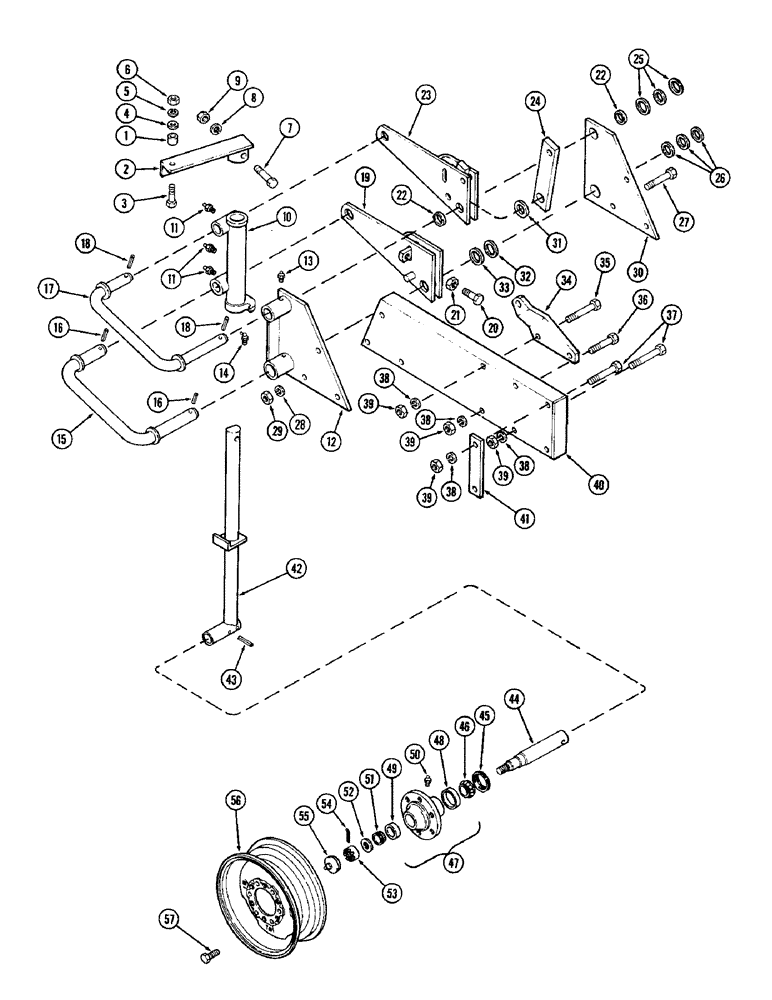

Запчасти Case IH 308 (36) - REAR AXLE AND WHEEL

1

T54126

BUSHING - steering rod

1шт.

2

T54305

ARM - steering rear

1шт.

3

114-601

BOLT

BOLT - 5/8 x 2-1/2" NF hex (Grade 5)

1шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

1шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

129-127

NUT,5/8"-18, G5

1шт.

7

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- 3/4 x 3-1/4" NC hex (Grade 5)

1шт.

8

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

129-108

NUT,3/4"-10, G5

1шт.

10

T54302

SLEEVE - axle

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

3шт.

12

T55669

PLATE - side RH with bushings

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITITNG - grease 1/8" x 45 degrees

1шт.

15

T55648

LINK

- lower parrell

1шт.

16

138-131

PIN, ROLL

ROLL PIN - 3/8 x 2-3/4"

2шт.

17

T55647

LINK - upper parallel

1шт.

18

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

19

T55646

ARM - actuator

1шт.

20

113-793

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5, Full Thd

- 3/4 x 2-1/2" NC hex (Grade 5)

1шт.

21

129-108

NUT,3/4"-10, G5

1шт.

22

T55700

SPACER

2шт.

23

T55644

ARM - lift

1шт.

24

T55645

ARM - cylinder

1шт.

25

T54510

WASHER

- 2-1/4 x 1-9/16" x 11 gauge

3шт.

26

T55665

WASHER

- 2-3/8 x 1-25/32" x 16 gauge

3шт.

27

114-722

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

- 3/4 x 4-1/2" NF hex (Grade 5)

3шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

29

129-128

NUT,3/4"-16, G5

- 3/4" NF hex

3шт.

30

T55649

PLATE - side LH

1шт.

31

T55662

WASHER - wear 2-1/4 x 1-17/32 x 1/4"

1шт.

32

T55661

WASHER - 2-7/32 x 1-17/32 x 1/16"

1шт.

33

T55660

WASHER - 2-1/2 x 1-13/16 x 1/8"

1шт.

34

T55701

ANCHOR - cylinder

1шт.

35

114-732

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

- 3/4 x 5-1/2" NF hex (Grade 5)

1шт.

36

114-720

BOLT,Hex, 3/4" - 16 x 4", Gr 5

- 3/4 x 4" NF hex (Grade 5)

1шт.

37

114-723

BOLT,Hex, 3/4" - 16 x 5", Gr 5

- 3/4 x 5" NF hex (Grade 5)

4шт.

38

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

39

129-128

NUT,3/4"-16, G5

- 3/4" NF hex

6шт.

40

T55651

SUPPORT

1шт.

41

T55643

SPACER

1шт.

42

T54293

AXLE - rear

1шт.

43

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.
