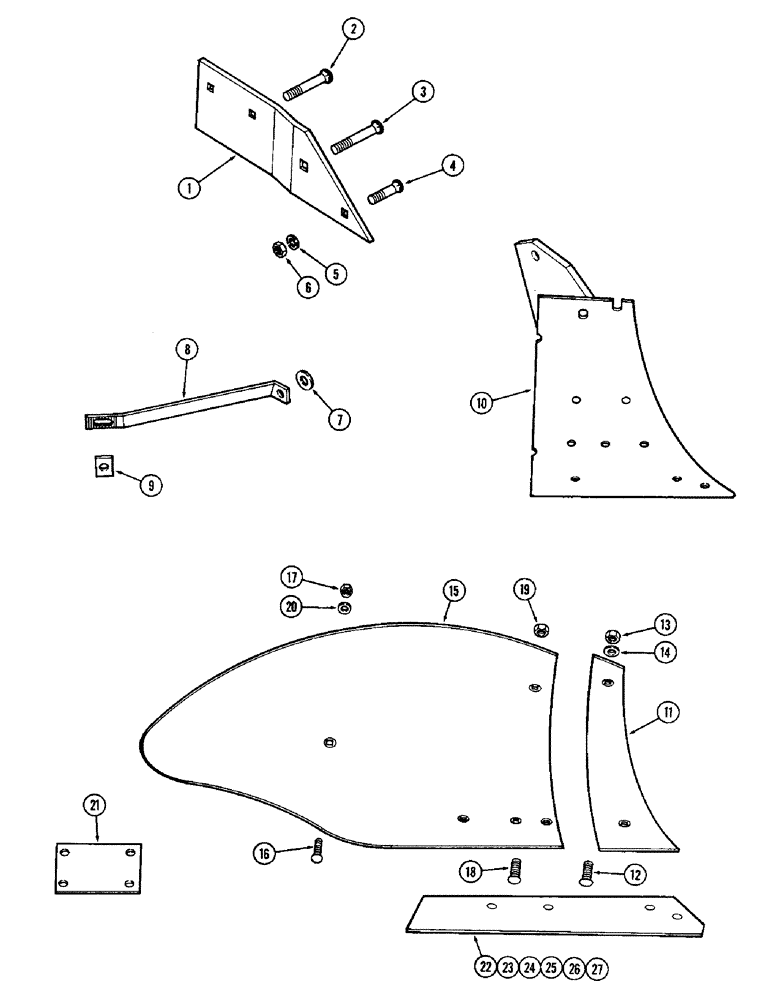

Запчасти Case IH 308 (28) - BOTTOM, 18 INCH, GENERAL PURPOSE, REGULAR

1

T54235

LANDSIDE

1шт.

2

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

1шт.

3

118-416

PLOW BOLT,5/8"-11 x 2 1/2", G5

BOLT - plow 5/8 x 2-1/2" NC (Grade 5)

1шт.

4

118-419

PLOW BOLT,5/8"-11 x 1 3/4", G5

BOLT - plow 5/8 x 1-3/4" NC (Grade 5)

1шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

129-107

NUT,5/8"-11, G5

3шт.

7

T55458

WASHER - 2 x 11/16 x 1/4"

1шт.

8

T54233

BRACE

- moldboard

1шт.

9

T52460

WASHER

- grooved

1шт.

10

T54234

SUPPORT ASSY.

STANDARD

1шт.

11

T63099

SHIN

ASSY

1шт.

12

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

13

129-104

NUT,7/16"-14, G5

2шт.

14

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

15

T63098

MOLDBOARD

ASSY

1шт.

16

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

17

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NC hex

1шт.

18

T54236

PLOW BOLT

BOLT - 7/16 x 1-1/4" NC (Grade 5)

5шт.

19

129-104

NUT,7/16"-14, G5

5шт.

20

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

1шт.

21

T52457

COUPLING

-, Serial Range: moldboard-share

1шт.

22

T63097

SHARE

ASSY - regular with nuts

1шт.

23

T63132

SHARE

ASSY - short with nuts

1шт.

24

T63200

SHARE

ASSY - long with nuts

1шт.

25

T63284

SHARE

ASSY - flat regular with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

4шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

26

T63133

SHARE

ASSY - upset nose with nuts

1шт.

T52465

NUT

- 1/2" NC hex LH

5шт.

27

T63206

SHARE

- hardfaced deep suck less bolts

1шт.
