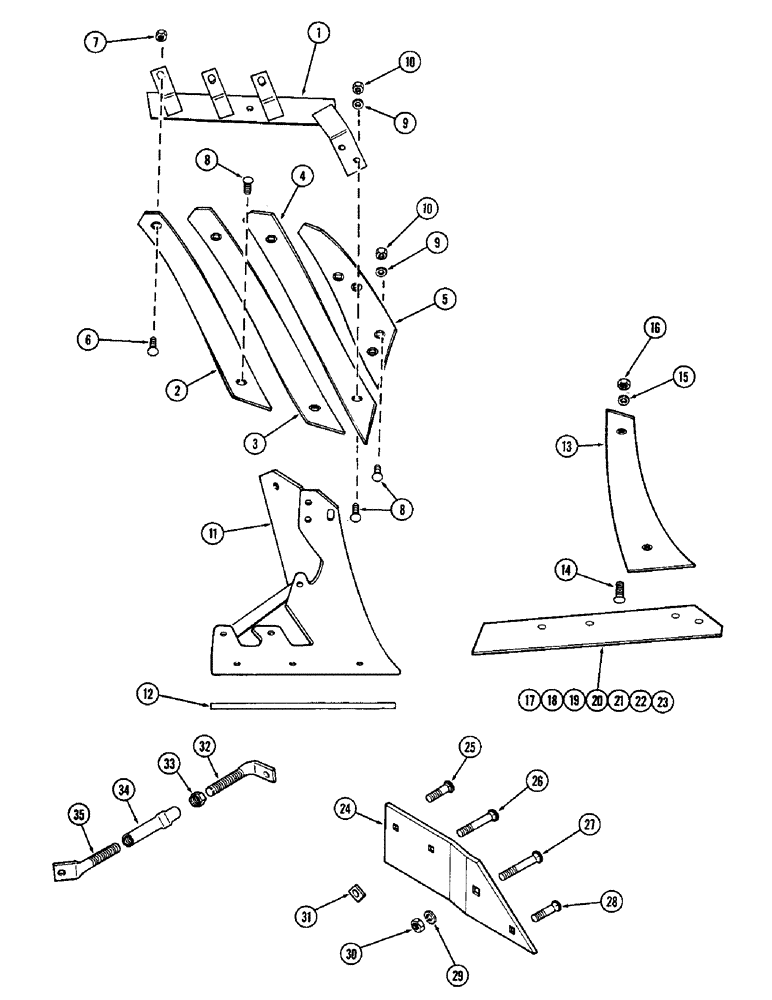

Запчасти Case IH 308 (24) - BOTTOM, 16 INCH, SLAT

1

T54489

BRACKET - slat

1шт.

2

T54488

SLAT - number four

1шт.

3

T54487

SLAT - number three

1шт.

4

T54486

SLAT - number two

1шт.

5

T54485

SLAT

- number one

1шт.

6

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

5шт.

7

129-104

NUT,7/16"-14, G5

5шт.

8

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

5шт.

9

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

10

129-104

NUT,7/16"-14, G5

5шт.

11

T54483

STANDARD

1шт.

12

T54482

FILLER - share

1шт.

13

T54484

SHIN

1шт.

14

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

15

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

16

129-104

NUT,7/16"-14, G5

2шт.

17

T63194

SHARE

ASSY - regular with nuts

1шт.

18

T63195

SHARE

ASSY - short with nuts

1шт.

19

T63196

SHARE

ASSY - long with nuts

1шт.

20

T63282

SHARE

ASSY - flat regular with nuts

1шт.

21

T63283

SHARE ASSY - flat short with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

3шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

22

T63197

SHARE

ASSY - upset nose with nuts

1шт.

T52465

NUT

- 1/2" NC hex LH

4шт.

23

T63208

SHARE

- hardfaced deep suck less bolts

1шт.

24

T54235

LANDSIDE

1шт.

25

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16 x 1-1/4" NF hex (Grade 5)

1шт.

26

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

1шт.

27

118-416

PLOW BOLT,5/8"-11 x 2 1/2", G5

BOLT - plow 5/8 x 2-1/2" NC (Grade 5)

1шт.

28

118-419

PLOW BOLT,5/8"-11 x 1 3/4", G5

BOLT - plow 5/8 x 1-3/4" NC (Grade 5)

1шт.

29

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

129-107

NUT,5/8"-11, G5

3шт.

31

T55455

SPACER - 3/4 x 2"

1шт.

32

T54480

STUD - adjusting RH

1шт.

33

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam 5/8" NC hex

1шт.

34

T54386

TUBE,0.546" ID x 0.84" OD x 8.25" L

- adjusting

1шт.

35

T54481

STUD - adjusting LH

1шт.
