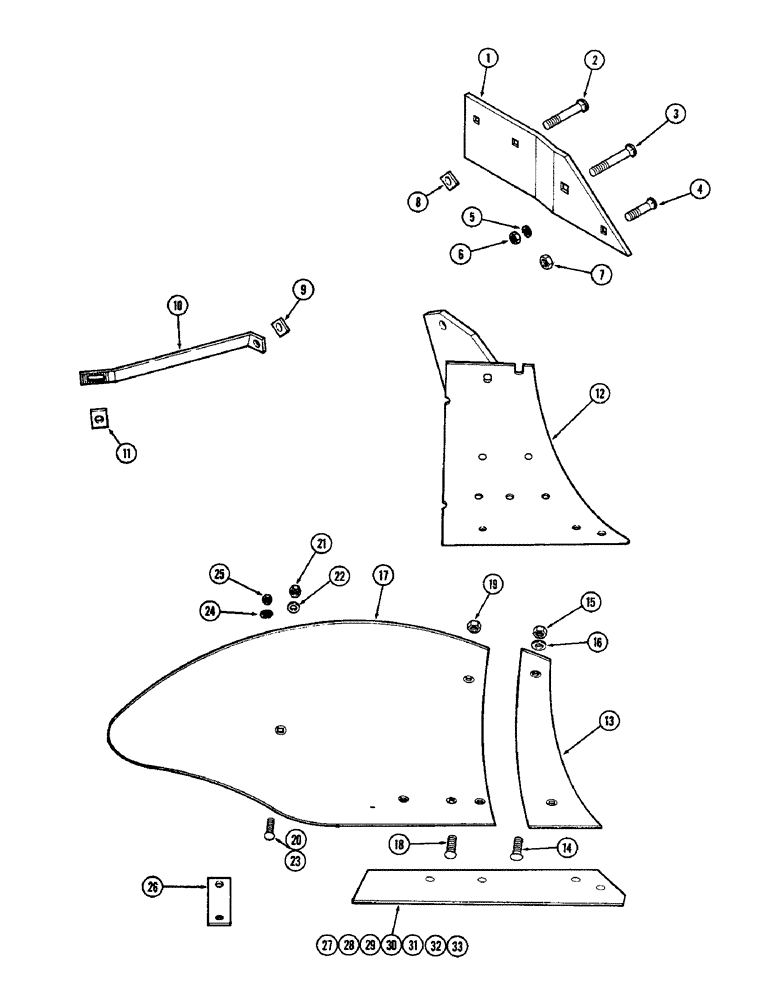

Запчасти Case IH 308 (22) - BOTTOM, 16 INCH, STUBBLE

1

T54235

LANDSIDE

1шт.

2

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

1шт.

3

118-416

PLOW BOLT,5/8"-11 x 2 1/2", G5

BOLT - plow 5/8 x 2-1/2" NC (Grade 5)

1шт.

4

118-419

PLOW BOLT,5/8"-11 x 1 3/4", G5

BOLT - plow 5/8 x 1-3/4" NC (Grade 5)

1шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

129-107

NUT,5/8"-11, G5

2шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam 5/8" NC hex

1шт.

8

T55455

SPACER - 3/4 x 2"

1шт.

9

T55456

SPACER - 3/8 x 1-1/2"

1шт.

10

T54243

BRACE

- moldboard

1шт.

11

T52460

WASHER

- grooved

1шт.

12

T54244

SUPPORT ASSY.

STANDARD

1шт.

13

T63186

SHIN

ASSY

1шт.

14

T54432

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

15

129-104

NUT,7/16"-14, G5

2шт.

16

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

17

T63185

MOLDBOARD ASSY

1шт.

18

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

4шт.

19

129-104

NUT,7/16"-14, G5

4шт.

20

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

21

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NC hex

1шт.

22

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

1шт.

23

118-218

BOLT

- plow 7/16 x 2" NC (Moldboard to brace) (Grade 5)

1шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

25

129-104

NUT,7/16"-14, G5

1шт.

26

T54240

STRAP

-, Serial Range: moldboard-share

1шт.

27

T63194

SHARE

ASSY - regular with nuts

1шт.

28

T63195

SHARE

ASSY - short with nuts

1шт.

29

T63196

SHARE

ASSY - long with nuts

1шт.

30

T63282

SHARE

ASSY - flat regular with nuts

1шт.

31

T63283

SHARE ASSY - flat short with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

3шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

32

T63197

SHARE

ASSY - upset nose with nuts

1шт.

T52465

NUT

- 1/2" NC hex LH

4шт.

33

T63208

SHARE

- hardfaced deep suck less bolts

1шт.
