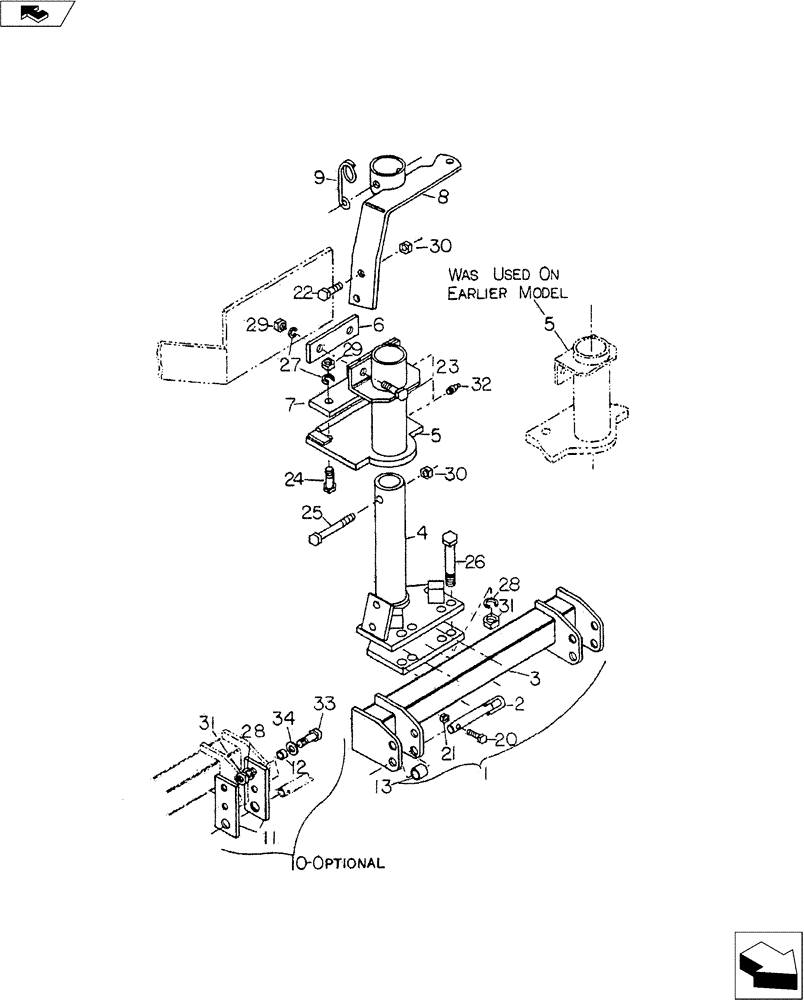

Запчасти Case IH 30 SERIES (39.110.01) - HITCH (39) - FRAMES AND BALLASTING

1

49102000

Includes Ref. 2, 3, 20, & 21

1шт.

2

14818465

CLEVIS

1-1/8" x 3/4" Pin (For Cat 2 Hitch)

2шт.

2

14822465

1-3/8" x 5-3/4" (For Cat 3 Hitch)

2шт.

3

49504000

1шт.

3

49545000

1шт.

4

49502000

1шт.

5

49547000

1шт.

5

49503000

(Used On Early Models)

1шт.

6

49548000

1шт.

7

49549000

1шт.

8

49501000

1шт.

9

22306020

PIN

Pigtail

1шт.

10

49111000

(Not Shown)

1шт.

11

49112000

4шт.

12

49112000

8шт.

13

49553000

2шт.

13

49554000

2шт.

20

NSS

NOT SOLD SEPARAT

7/16" x 2" NC Hex. Bolt

2шт.

21

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Bolt

2шт.

22

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC Hex. Bolt

2шт.

23

NSS

NOT SOLD SEPARAT

3/4" x 3" NC Hex. Bolt Gd 5

2шт.

24

NSS

NOT SOLD SEPARAT

3/4" x 3-1/2" NC Hex. Bolt Gd 5

2шт.

25

NSS

NOT SOLD SEPARAT

3/4" x 6-1/2" NC Hex. Bolt

1шт.

26

16901428

7/8" x 7" NC A325

6шт.

27

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

4шт.

28

NSS

NOT SOLD SEPARAT

7/8" Lock Washer

4шт.

29

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

30

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

3шт.

31

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

6шт.

32

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Fitting

2шт.

33

16901409

7/8" x2-1/4" NC A325

8шт.

34

NSS

NOT SOLD SEPARAT

7/8" Std. Washer

8шт.
