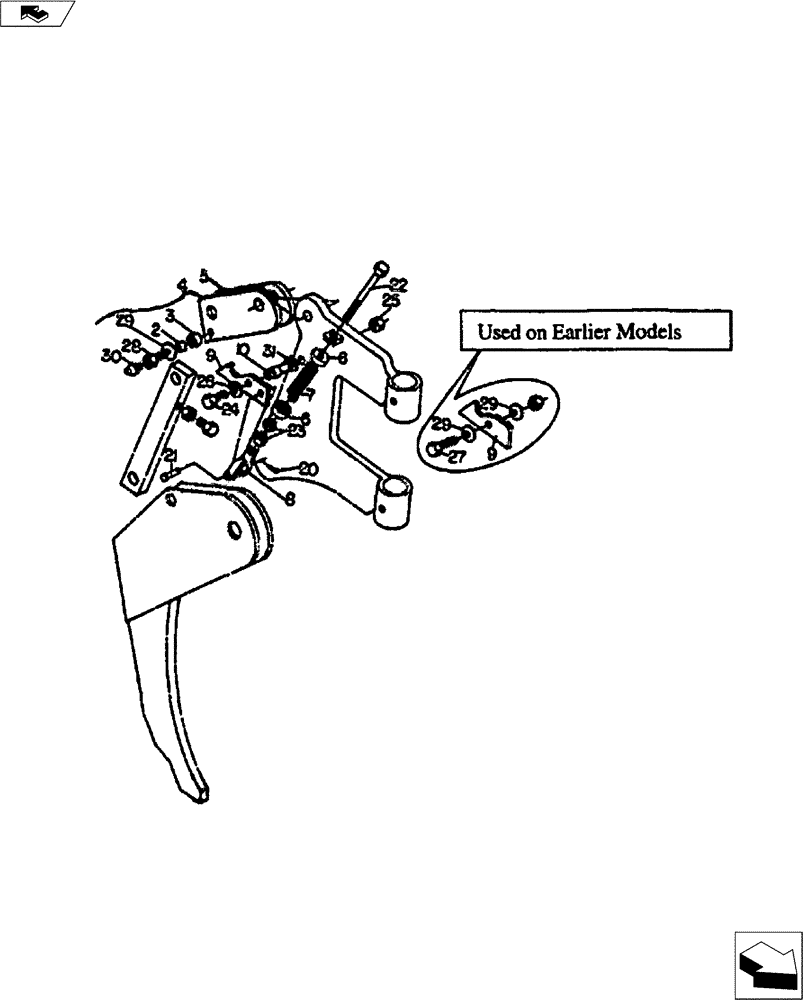

Запчасти Case IH 30 SERIES (39.100.02) - SPRING TRIP (39) - FRAMES AND BALLASTING

1

49556000

(Not Shown)

1шт.

2

4956000

1" OD

1шт.

3

49561000

1-1/2" OD

1шт.

4

49562000

RH

1шт.

5

49563000

LH

1шт.

6

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

Spring Holder

2шт.

7

24117700

COMPRESSION SPRING

1шт.

8

22706001

3/8"

1шт.

9

49558000

1шт.

10

49557000

1шт.

20

NSS

NOT SOLD SEPARAT

3/32" x 3/4" Cotter Pin

1шт.

21

14806071

3/8" x 7/8" EL x 1-1/16" OL

1шт.

22

16900628

3/8" x 7" NF Sp. Hex.

1шт.

23

NSS

NOT SOLD SEPARAT

3/8" NF Hex. Nut ZP

2шт.

24

NSS

NOT SOLD SEPARAT

1/2" x 3" NC Hex. Bolt

1шт.

25

NSS

NOT SOLD SEPARAT

1/2" NC Heavy Hex. Nut

1шт.

26

NSS

NOT SOLD SEPARAT

1/2" Std. Washer

1шт.

27

NSS

NOT SOLD SEPARAT

3/4" x 1-1/4" NC Hex. Bolt (Used On Earlier Model)

1шт.

28

21891250

CAM FOLLOWER

3/4" x 1-1/2" Sp. Hex. Bolt

1шт.

29

NSS

NOT SOLD SEPARAT

3/4" SAE Washer

2шт.

30

NSS

NOT SOLD SEPARAT

1/4" - 28 Grease Zerk

1шт.

31

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" x 1-3/8" OD

1шт.
