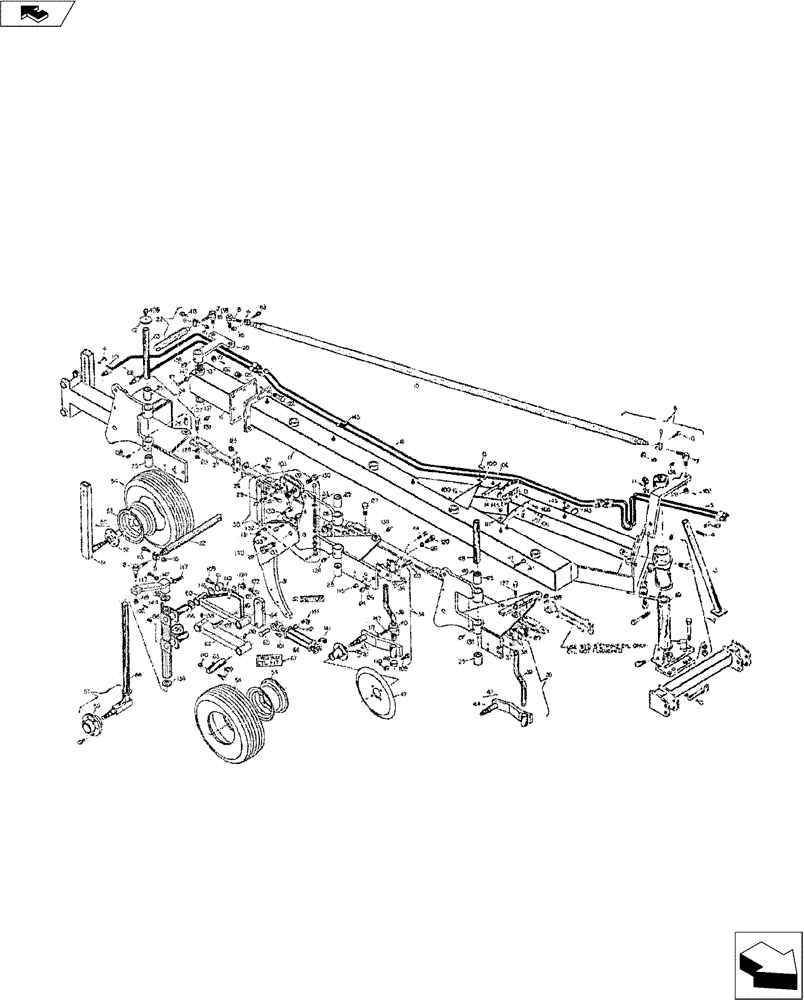

Запчасти Case IH 30 SERIES (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

49400000

4 Bottom Plow Complete

1шт.

1

49500000

5 Bottom Plow Complete

1шт.

1

49600000

6 Bottom Plow Complete

1шт.

1

49700000

7 Bottom Plow Complete

1шт.

1

49800000

8 Bottom Plow Complete

1шт.

2

NSS

NOT SOLD SEPARAT

Hitch

1шт.

3

49530000

5-Bottom Parking

1шт.

3

49430000

4-Bottom Parking

1шт.

4

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" X 3-1/4" Clevis

2шт.

5

25600672

3/8" Hyd. 72" Lg.

2шт.

6

49450000

Includes Ref. 7-10 & Hardware (4 Bottom 136" Lg.)

1шт.

6

49550000

Includes Ref. 7-10 & Hardware (5 Bottom 172" Lg.)

1шт.

6

49650000

Includes Ref. 7-10 & Hardware (6 Bottom 208" Lg.)

1шт.

6

49750000

Includes Ref. 7-10 & Hardware (7 Bottom 245" Lg.)

1шт.

6

49850000

Includes Ref. 7-10 & Hardware (8 Bottom 282" Lg.)

1шт.

7

32729000

TIE-ROD

RH End

2шт.

8

32729001

TIE-ROD

LH End

2шт.

9

32739000

Tie Rod

4шт.

10

49451000

Front Tie Rod l/Ends 4 Bottom

1шт.

10

49551000

Front Tie Rod l/Ends 5 Bottom

1шт.

10

49651000

Front Tie Rod l/Ends 6 Bottom

1шт.

10

49751000

Front Tie Rod l/Ends 7 Bottom

1шт.

10

49851000

Front Tie Rod l/Ends 8 Bottom

1шт.

11

22306020

PIN

Pig Tail Hose Holder

1шт.

12

49537000

1шт.

13

30010000

1шт.

14

49541000

1шт.

15

49533000

1шт.

16

49534000

1шт.

17

49405000

4 Bottom Main (Not Shown)

1шт.

17

49505000

5 Bottom Main (Shown)

1шт.

18

25653704

Hyd. Line 4-Bottom 105" Lg.

2шт.

18

25653705

Hyd. Line 5-Bottom 143" Lg.

2шт.

19

49506000

1шт.

20

49521000

Rear Wheel Steering Pivot

1шт.

21

49531000

Rear, Includes Ref. 7-9 & 22

1шт.

22

49542000

Rear Tie l/Ends

1шт.

23

49536000

Rear Bottom Pivot 20" Lg.

1шт.

24

49509000

Rear Bottom Pivot Assy. Includes Ref. 25 & 26

1шт.

26

44008830

BUSHING,22.38mm ID x 26.72mm OD x 38.1mm L

Bronze 7/8" ID X 1-1/2" Lg.

2шт.

27

49508000

Rear Width Adj. Angle

1шт.

28

49407000

Front Width Adj. Angle

1шт.

28

49507000

Front Width Adj. Angle

1шт.

29

49539000

Trip Link

5шт.

30

NSS

NOT SOLD SEPARAT

Trip Stop Kit

5шт.

31

49524000

5шт.

32

NSS

NOT SOLD SEPARAT

Moldboard

5шт.

33

49523000

Inner Bottom Pivot Assy. Includes Ref.25

3шт.

34

49109000

Inner Coulter Mount Bundle (Support Shaft 17-1/2" Lg.)

4шт.

34

49107000

Inner Coulter Mount Bundle (Support Shaft 21" Lg.)

4шт.

35

49110000

Front Coulter Mount Bundle (Support Shaft 17-1/2" Lg.)

1шт.

35

49108000

Front Coulter Mount Bundle (Support Shaft 21" Lg.)

1шт.

36

49526000

Coulter Shaft Clamp Bundle W/Hdwe. Includes Ref. 37 & 38

5шт.

37

20092021

CASTING

Coulter Clamp

5шт.

38

49564000

Coulter Top

5шт.

39

49571000

Coulter Support (17-1/2" Lg.)

5шт.

39

49572000

Lg. Coulter Support (19-1/2" Lg.)

5шт.

39

49527000

Coulter Support 21" Lg.

5шт.

40

20092011

STOP

Coulter Pivot

5шт.

41

49573000

MOUNTING PARTS

Inner Coulter Mount Assy. (15-3/8" Lg. Includes Ref. 45)

4шт.

41

49528000

Inner Coulter Mount Assy. (16-3/8" Lg. Includes Ref. 45)

4шт.

42

49574000

Front Coulter Mount Assy. (13-7/8" Lg. Includes Ref. 45)

1шт.

42

49532000

Front Coulter Mount Assy. (14-5/8" Lg. Includes Ref. 45)

1шт.

43

49575000

MOUNTING PARTS

Inner Coulter Support Arm (15-3/4" Lg. l/hub)

4шт.

43

49566000

Inner Coulter (16-5/8" Lg.)

4шт.

44

49576000

Front Coulter (13-7/8" Lg. l/Hub)

1шт.

44

49567000

Front Coulter (14-5/8" Lg. l/Hub)

1шт.

45

NSS

NOT SOLD SEPARAT

Hub Assy.

5шт.

46

49529000

PIPE

Coulter Bottom Collar

5шт.

47

33502040

20"

5шт.

47

33502041

20" Rippled

5шт.

47

443638A1

PLOW DISC

24" Coulter Blade

5шт.

48

49535000

Bottom Pivot 17" Lg.

4шт.

49

4952000

SUPPORT

Front Bottom Pivot Assy. Includes Ref. 25 & 26

1шт.

50

49515000

WHEEL,Assy, Gauge

Gauge Assy. Includes Ref. 51 & 52

1шт.

51

49568000

Gauge Wheel Spindle l/Hub

1шт.

52

NSS

NOT SOLD SEPARAT

Hub Assy.

1шт.

53

10110174

WHEEL

15 x 10 LB 8-Bolt

2шт.

54

NSS

NOT SOLD SEPARAT

9.5 x 15 6-Ply Tire

2шт.

55

49518000

Rear Wheel Pivot Arm

1шт.

56

49512000

Tail Wheel Pivot Assy.

1шт.

57

49519000

Rear Hub & Spindle, Includes Ref. 58 & 59 l/Wheel & tire

1шт.

58

47569000

Rear Spindle l/Hub

1шт.

59

NSS

NOT SOLD SEPARAT

Hub Assy.

1шт.

60

49511000

Upper Tail Wheel Linkage

1шт.

61

49513000

Tail Wheel Linkage Collar

2шт.

62

49510000

Lower Tail Wheel Linkage

1шт.

63

49514000

Tail Wheel Linkage Pivot Shaft

2шт.

63

49522000

Rear Cylinder Pivot Link (14" Lg.)

1шт.

64

49546000

Rear Cylinder Pivot Link (12" Lg.)

1шт.

65

14816261

CLEVIS

1" x 3-1/4" EL Pin

2шт.

66

NSS

NOT SOLD SEPARAT

2-1/2" Dia X 8" Cylinder

1шт.

67

NSS

NOT SOLD SEPARAT

Two Way Cylinder Kit

1шт.

68

25600660

3/8" Hyd. 60" Lg.

12шт.

100

NSS

NOT SOLD SEPARAT

1/16" x 1/2" Cotter Pin

2шт.

101

NSS

NOT SOLD SEPARAT

1/8" Hair Pin x 2" #11

4шт.

102

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

4шт.

103

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

15шт.

104

NSS

NOT SOLD SEPARAT

1/4" x 3" Cotter Pin

5шт.

105

NSS

NOT SOLD SEPARAT

1/4" x 1" NC Hex. Head Cap Screw

2шт.

106

NSS

NOT SOLD SEPARAT

1/4" Lock Nut

4шт.

107

NSS

NOT SOLD SEPARAT

1/4" Std. Washer

1шт.

108

NSS

NOT SOLD SEPARAT

3/8" x 3/4" Hex. Head Cap Screw

1шт.

109

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Hex. Head Cap Screw

9шт.

110

NSS

NOT SOLD SEPARAT

3/8" Hex. Nut

9шт.

111

NSS

NOT SOLD SEPARAT

3/8" Std. Washer

2шт.

112

17407030

3/8" Retainer

1шт.

113

NSS

NOT SOLD SEPARAT

7/16" x 2" NC Hex. Head Cap Screw

4шт.

114

NSS

NOT SOLD SEPARAT

7/16" x 2" NC Hex. Head Cap Screw Gd. 5

5шт.

115

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

9шт.

116

16010062

5/8" x 1-1/2" NF Hex. Head

5шт.

117

16810064

SET SCREW

5/8" x 1-1/2" Sq. Head Cup Point Gd. 5

12шт.

118

14001002

5/8" NF Hex.

5шт.

119

425-1310

SLOTTED NUT,5/8"-18, G5

NF Hex.

4шт.

120

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Head Cap Screw

5шт.

121

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC Hex. Head Cap Screw

2шт.

122

16012104

BOLT

3/4" x 2-1/2" NC Hex. Head Cap Screw

12шт.

123

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

NC Hex. Head Cap Screw

12шт.

124

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

18шт.

125

NSS

NOT SOLD SEPARAT

3/4" Lock Nut

1шт.

126

NSS

NOT SOLD SEPARAT

3/4" LocK Washer

10шт.

127

NSS

NOT SOLD SEPARAT

7/8" x 4-1/2" NC Hex. Head Cap Screw

5шт.

128

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

5шт.

129

NSS

NOT SOLD SEPARAT

7/8" NC Jam Nut

5шт.

130

16901615

SPECIAL BOLT

1" x 3-3/4" NC Sp. Hex. Head Cap Screw

15шт.

131

425-1216

SLOTTED NUT,Hex, 1"-8, G5

NC

15шт.

132

NSS

NOT SOLD SEPARAT

1" Narrow Rim Mach Bushing

30шт.

133

16902418

1-1/2" x 4-1/4"

5шт.

134

425-1224

SLOTTED NUT,1 1/2"-6, G5

NC

5шт.

135

NSS

NOT SOLD SEPARAT

1-1/2" Narrow Rim Mach Bushing

10шт.

136

17634051

2-1/8" Narrow Rim Mach 10 Ga.

2шт.

137

17634010

BUSHING

2-1/8" Narrow Rim Mach 14 Ga.

12шт.

138

NSS

NOT SOLD SEPARAT

1/8" x 27" NPT Grease Zerk Straight

24шт.

139

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk Straight 22-1/2"

2шт.

140

NSS

NOT SOLD SEPARAT

1/4" - 28 Grease Zerk Staright

5шт.

141

NSS

NOT SOLD SEPARAT

3/8" Street Elbow 90

1шт.

142

25403750

3/8" NPT

1шт.

143

22530801

1/2" Hyd. Line

10шт.

144

NSS

NOT SOLD SEPARAT

3/8" Sq. Key x 3" Lg.

1шт.

145

NSS

NOT SOLD SEPARAT

5/16" Hex. Nut

7шт.

146

17632020

BUSHING

2" Narrow Rim Mach

4шт.

147

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

12шт.
