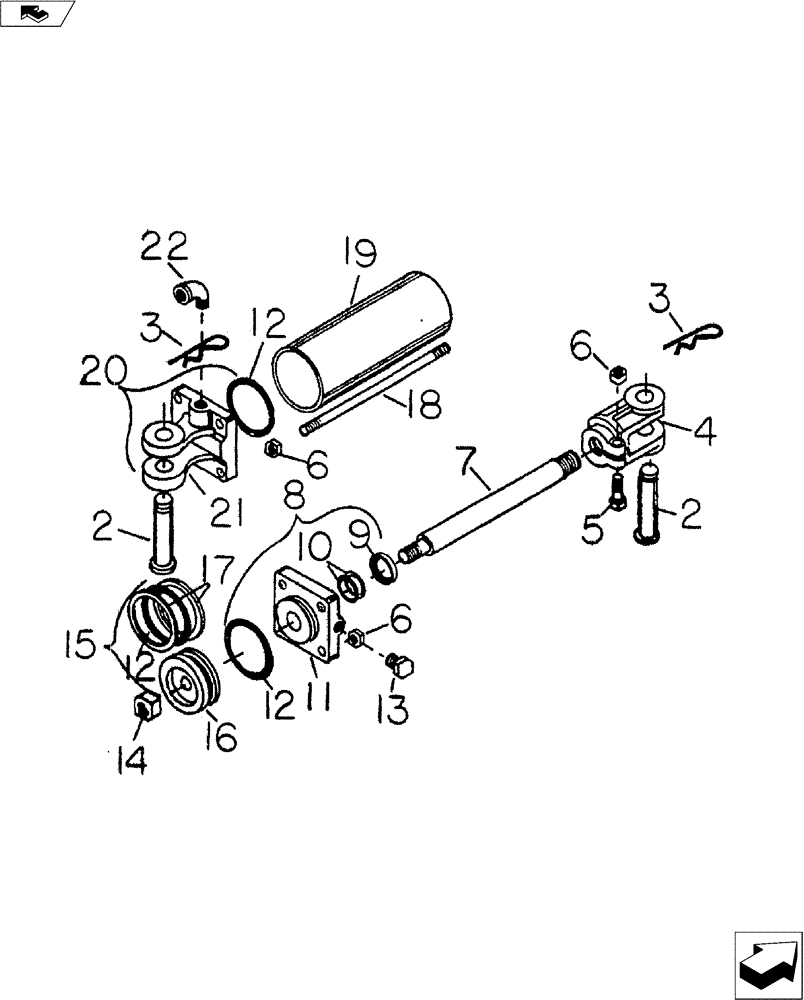

Запчасти Case IH 30 SERIES (35.100.02) - CYLINDER (35) - HYDRAULIC SYSTEMS

1

25025080

HYDRAULIC CYLINDER

2-1/2" Dia x 8" Stroke, W/1-1/16" Rod Complete (Not Shown)

1шт.

2

NSS

NOT SOLD SEPARAT

1" x 3-1/4" EL x 3-3/4" OL Clevis Pin

2шт.

3

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

2шт.

4

25802501

SHAFT

Cylinder Rod Clevis Only

1шт.

5

NSS

NOT SOLD SEPARAT

3/8" NC x 1-1/2" HHSC

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" NC Lock Nut

9шт.

7

25802502

1-1/16" Dia

1шт.

7

25802503

1-1/4" Dia

1шт.

8

25802504

1-1/16" Dia Rod, Includes Ref. 9-12

1шт.

8

25802511

1-1/4" Dia Rod, Includes Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separtely)

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separtely)

2шт.

11

NSS

NOT SOLD SEPARAT

Rod End Housing Only (Not Sold Separtely)

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separtely)

3шт.

13

25403750

3/8" NPT

1шт.

14

14001202

NUT

3/4" NF Hex.

1шт.

15

25802505

Includes Ref. 12, & 16 - 17

1шт.

16

NSS

NOT SOLD SEPARAT

Piston (Not Sold Separtely)

1шт.

17

NSS

NOT SOLD SEPARAT

Back Up Seal (Not Sold Separtely)

2шт.

18

25802506

4шт.

19

25802507

BARREL

Cylinder

1шт.

20

25802508

Includes Ref. 12 & 21

1шт.

21

NSS

NOT SOLD SEPARAT

Cylinder Butt End Only (Not Sold Separtely)

1шт.

22

NSS

NOT SOLD SEPARAT

3/8" St Elbow 90

1шт.

23

25802509

KIT

Seal for 1-1/16" Dia Rod, Includes Ref. 9-12 & 17 (Not Shown)

1шт.

23

25802510

KIT

Seal for 1-1/16" Dia Rod, Includes Ref. 7, 10, 12, & 17 (Not Shown)

1шт.
