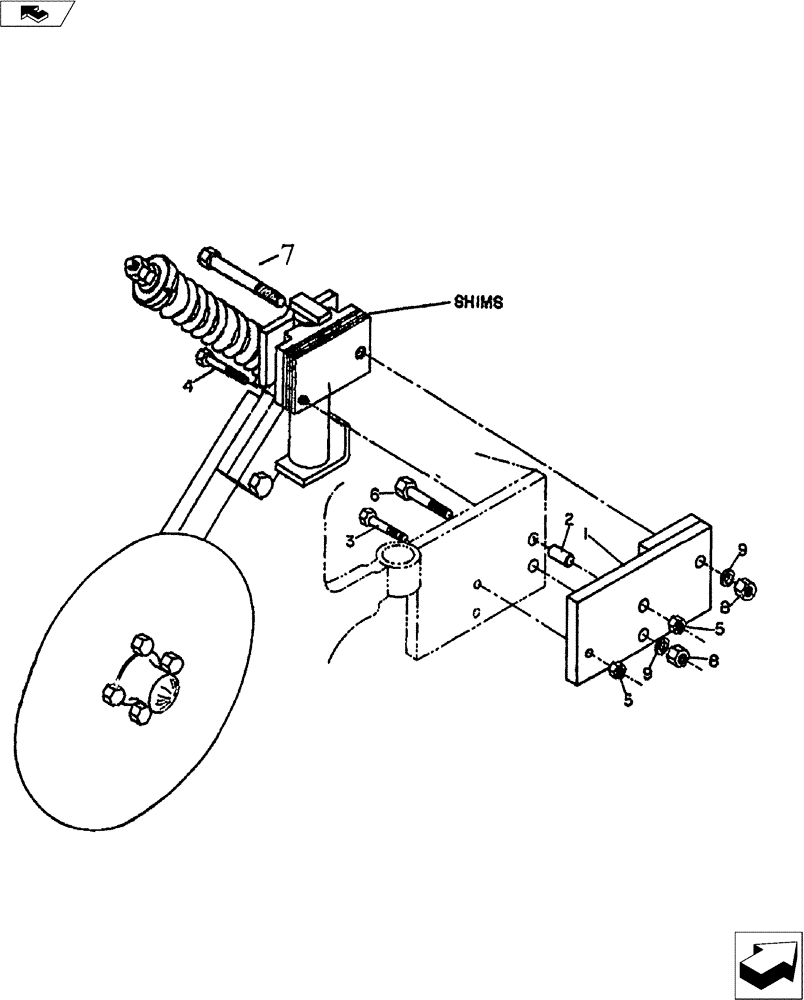

Запчасти Case IH 30 SERIES (75.200.03) - ADAPTOR KIT ASSEMBLY (75) - SOIL PREPARATION

1

49331000

1шт.

2

49329000

3/4" OD x 15/32" ID x 1-7/16" Lg.

1шт.

3

16007104

BOLT

7/16" x 2-2-1/2" NC Hex. Gd 5

1шт.

4

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

5

14000700

7/16" NC Hex.

2шт.

6

16012104

BOLT

3/4" x 2-1/2" NC Hex. Gd 5

1шт.

7

16012284

3/4" x 7 NC Hex. Gd 5

1шт.

8

25-1012

NUT,3/4"-10, G5

NC Hex.

2шт.

9

492-11075

LOCK WASHER,3/4"

2шт.
