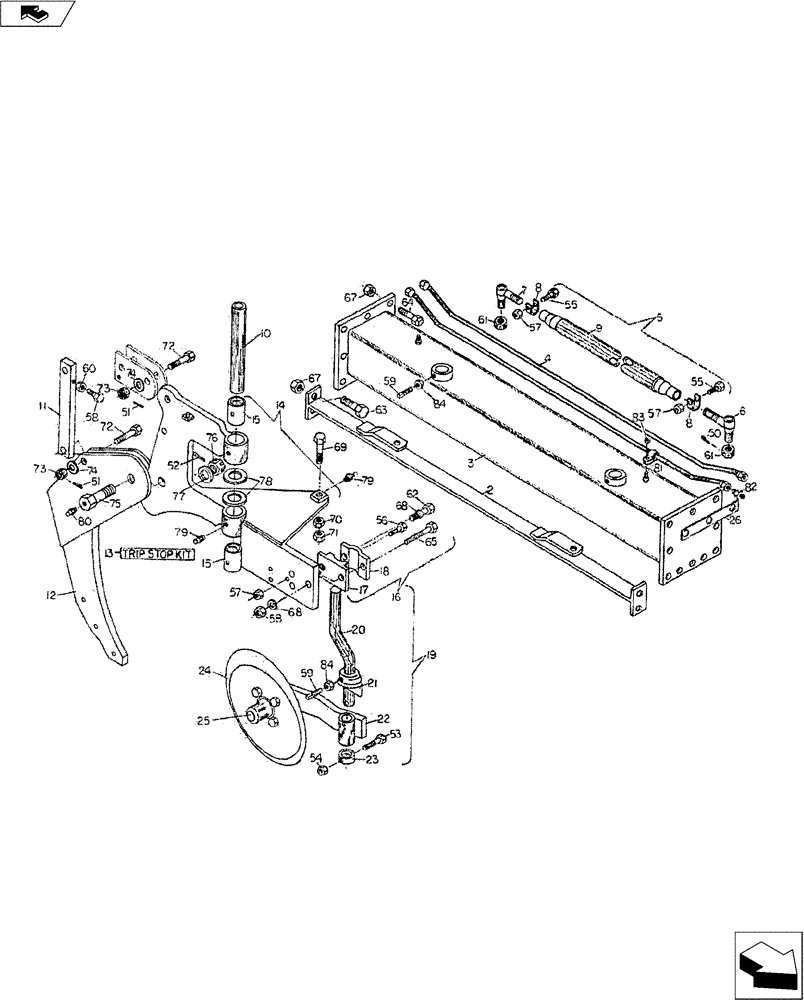

Запчасти Case IH 30 SERIES (75.200.02) - 1 & 2 BOTTOM EXTENSION (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
49100000
(Not Shown)
1шт.
1
49200000
(Not Shown)
1шт.
1
49300000
(Int Comp Ext Except Front Tie Rod) (Not Shown)
1шт.
2
49653000
1 Bottom Ext. Width Adj.
1шт.
2
49753000
2 Bottom Ext. Width Adj.
1шт.
3
49652000
1 Bottom Ext. Main Tube
1шт.
3
49752000
2 Bottom Ext. Main Tube
1шт.
4
25653701
1 Bottom Ext. Hyd. Line
2шт.
4
25653702
2 Bottom Ext. Hyd. Line
2шт.
5
4965000
(208" Long), Includes Ref. 6 - 8
1шт.
5
49750000
(246" Long), Includes Ref. 6 -
1шт.
5
49850000
(284" Long), Includes Ref. 6 -
1шт.
6
32729000
TIE-ROD
RH End
1шт.
7
32729001
TIE-ROD
LH End
1шт.
8
32739000
Tie Rod
2шт.
9
49651000
6 Bottom Front Tie Rod l/End
1шт.
9
49751000
7 Bottom Front Tie Rod l/End
1шт.
9
49851000
8 Bottom Front Tie Rod l/End
1шт.
10
49535000
Bottom Pivot Pin 17" Long
1шт.
11
49539000
Trip Link
1шт.
12
49524000
1шт.
13
NSS
NOT SOLD SEPARAT
Trip Stop Kit
1шт.
14
49523000
1шт.
15
44021320
(2-1/8" ID x 3-1/2" Lg.)
2шт.
16
49526000
Includes Ref. 17 - 18
1шт.
17
20092021
CASTING
Coulter Clamp
1шт.
18
49564000
1шт.
19
49109000
(Support Shaft 17-1/2" Lg.)
1шт.
19
49107000
(Support Shaft 21" Lg.)
1шт.
20
49571000
17-1/2" Lg.
1шт.
20
49572000
19-1/2" Lg. (Used When 20" Or Small Center Is Used)
1шт.
20
49527000
21" Lg. (Used On Earlier Models)
1шт.
21
20092011
STOP
Coulter Pivot
1шт.
22
49573000
MOUNTING PARTS
Inner Coulter Assy. (15-3/8" Lg.), Includes Ref. 25
1шт.
22
49528000
(16-3/8" Lg.), Includes Ref. 25 (Used On Earlier Models)
1шт.
22
49572000
19-1/2" Lg.
1шт.
23
49529000
PIPE
Coulter Bottom Collar
1шт.
24
33502040
20"
1шт.
24
33502041
20"
1шт.
24
443638A1
PLOW DISC
24" Coulter Blade
1шт.
25
NSS
NOT SOLD SEPARAT
Hub Assy.
1шт.
26
49754000
0.060 Shin (Used w/8 Bottom Plow Only)
1шт.
50
NSS
NOT SOLD SEPARAT
5/32" x 1-1/2" Cotter Pin
2шт.
51
NSS
NOT SOLD SEPARAT
3/16" x 2" Cotter Pin
3шт.
52
NSS
NOT SOLD SEPARAT
1/4" x 3" Cotter Pin
1шт.
53
NSS
NOT SOLD SEPARAT
3/8" x 3" NC Hex. Head Cap Screw
1шт.
54
NSS
NOT SOLD SEPARAT
3/8" NC Hex. Nut
1шт.
55
NSS
NOT SOLD SEPARAT
7/16" x 2" NC Hex. Head Cap Screw
4шт.
56
NSS
NOT SOLD SEPARAT
7/16" x 2" NC Hex. Head Cap Screw
1шт.
57
NSS
NOT SOLD SEPARAT
7/16" NC Hex. Nut
3шт.
58
16010062
5/8" x 1-1/2" NF Hex. Head Cap Screw
1шт.
59
16910064
5/8" x 1-1/2" Sq. Head Set Screw Cup Point Gd. 5
2шт.
60
14001003
5/8" NF Hex.
1шт.
61
425-1310
SLOTTED NUT,5/8"-18, G5
NF
2шт.
62
NSS
NOT SOLD SEPARAT
3/4" x 2" NC Hex. Head Cap Screw
1шт.
63
NSS
NOT SOLD SEPARAT
3/4" x 2-1/2" NC Hex. Head Cap Screw
2шт.
64
16012104
BOLT
3/4" x 2-1/2" NC Hex. Head Cap Screw Gd. 5
10шт.
65
13-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
NC Head Cap Screw
1шт.
66
NSS
NOT SOLD SEPARAT
3/4" NC Hex. Lock Nut
1шт.
67
NSS
NOT SOLD SEPARAT
3/4" NC Lock Nut
12шт.
68
NSS
NOT SOLD SEPARAT
3/4" Lock Washer
2шт.
69
NSS
NOT SOLD SEPARAT
7/8" x 4-1/2" NC Hex. Head Cap Screw
1шт.
70
NSS
NOT SOLD SEPARAT
7/8" NC Jam Nut
1шт.
71
NSS
NOT SOLD SEPARAT
7/8" NC Jam Nut
1шт.
72
16901615
SPECIAL BOLT
1" x 3-3/4" NC Hex. Head Cap SCrew
3шт.
73
425-1216
SLOTTED NUT,Hex, 1"-8, G5
NC
3шт.
74
NSS
NOT SOLD SEPARAT
1" Narrow Rim Mach Bushing
6шт.
75
16902416
SPECIAL BOLT
1-1/2" x 4-1/4"
1шт.
76
425-1224
SLOTTED NUT,1 1/2"-6, G5
NC
1шт.
77
NSS
NOT SOLD SEPARAT
1-1/2" Narrow Rim Mach Bushing
2шт.
78
17634010
BUSHING
2-1/8" Narrow Rim Mach
2шт.
79
NSS
NOT SOLD SEPARAT
1/8" NPT Grease Zerk
3шт.
80
NSS
NOT SOLD SEPARAT
1/4" - 28 Grease Zerk
1шт.
81
22530801
1/2"
4шт.
82
218-735
UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree
JICM x JICM Male Adapter
2шт.
83
NSS
NOT SOLD SEPARAT
5/16" NC Hex. Nut
2шт.
84
NSS
NOT SOLD SEPARAT
5/8" NC Jam Nut
4шт.
Выбрано товаров: 77
