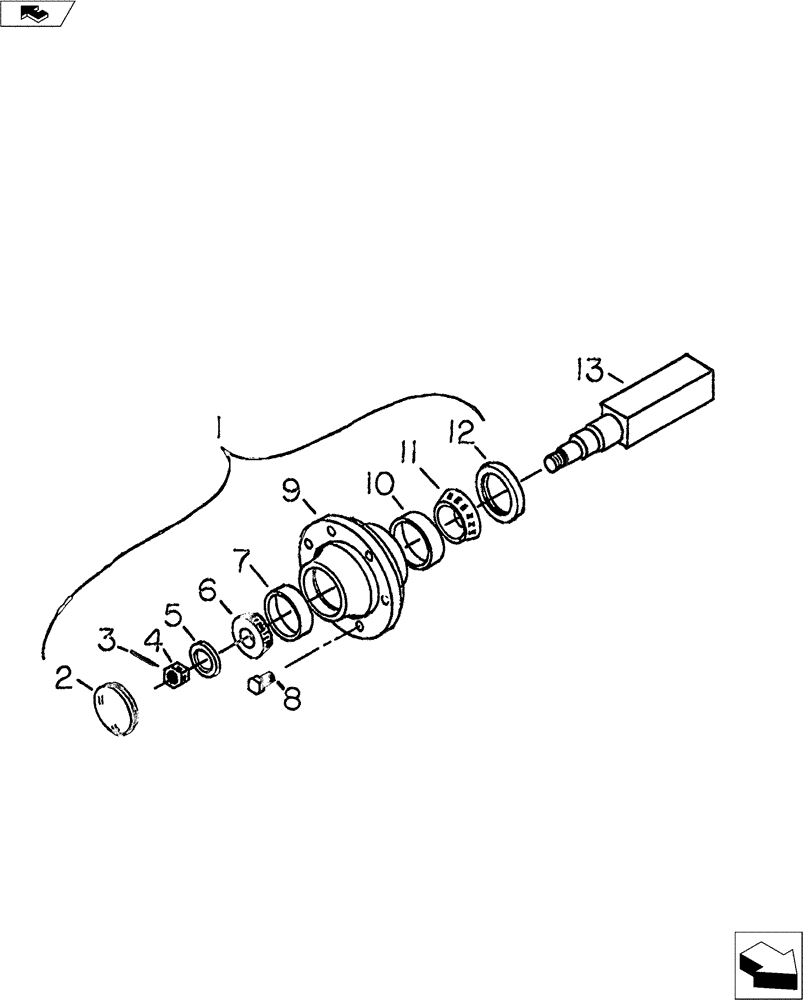

Запчасти Case IH 30 SERIES (44.100.01) - Q-803 HUB & SPINDLE (44) - WHEELS

1

28180300

HUB ASSY.

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Key

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.38 Bore Timken 25877

1шт.

7

165964R1

BEARING CUP

2.875 Timken 25821

1шт.

8

16409053

SPECIAL BOLT

9/16" NF x 1-1/8" Lug

6шт.

9

28280300

HUB ASSY.

1шт.

10

21883270

BEARING CUP

3.27 Timken 25520

1шт.

11

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.80 Bore Timken 25590

1шт.

12

491715R91

OIL SEAL

2.00 ID x 3.625 OD CR 521430

1шт.

13

28380321

1шт.
